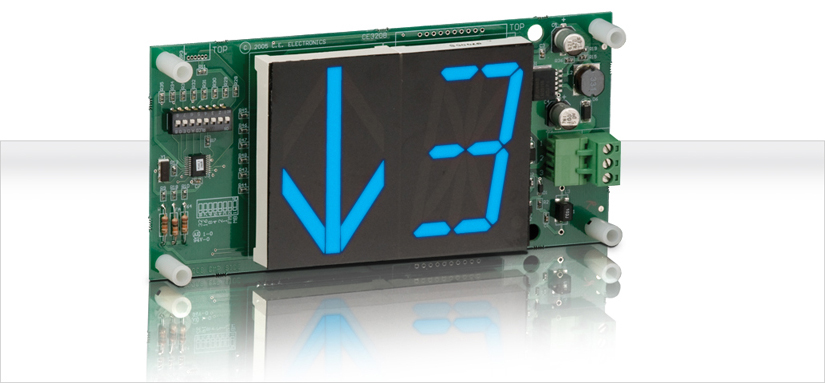

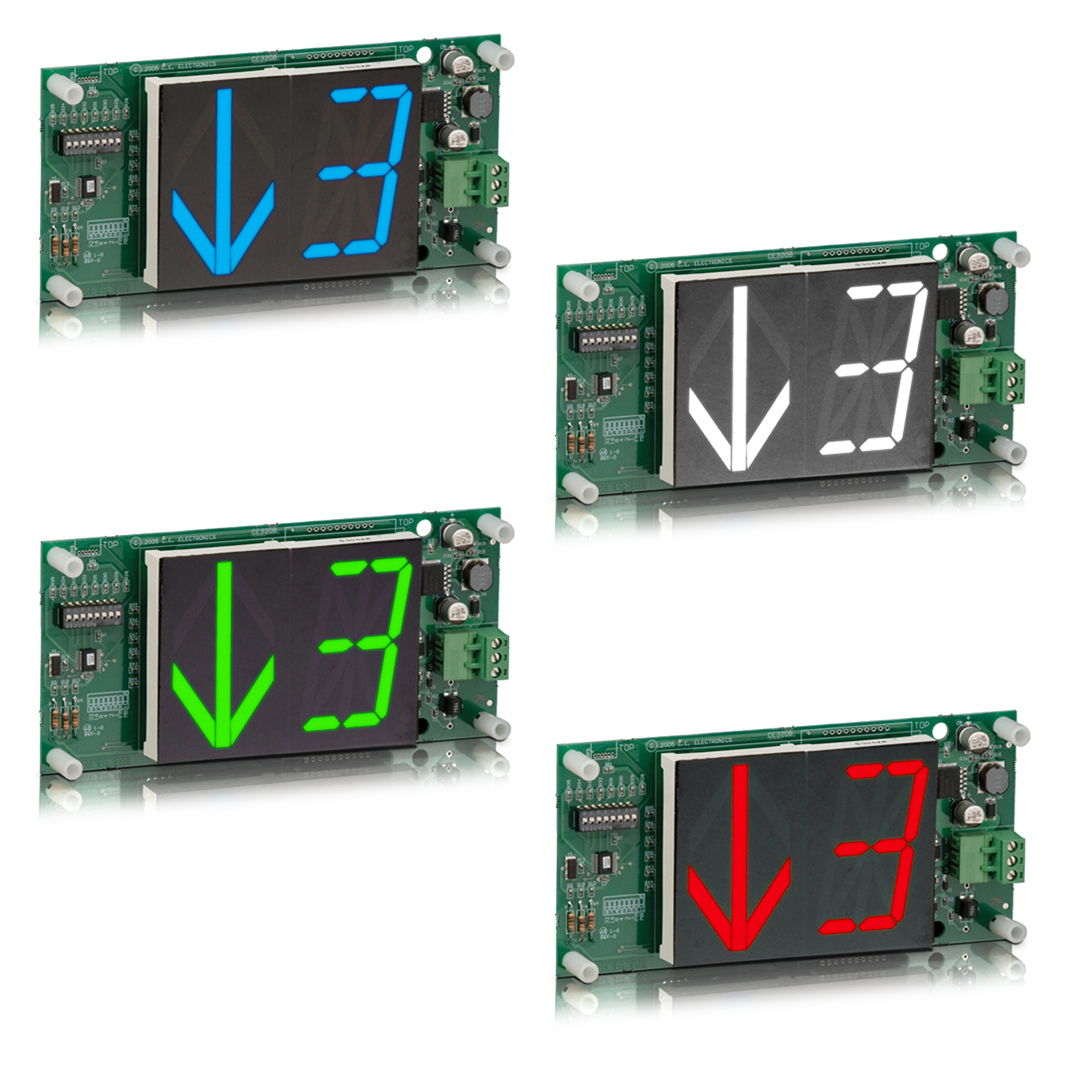

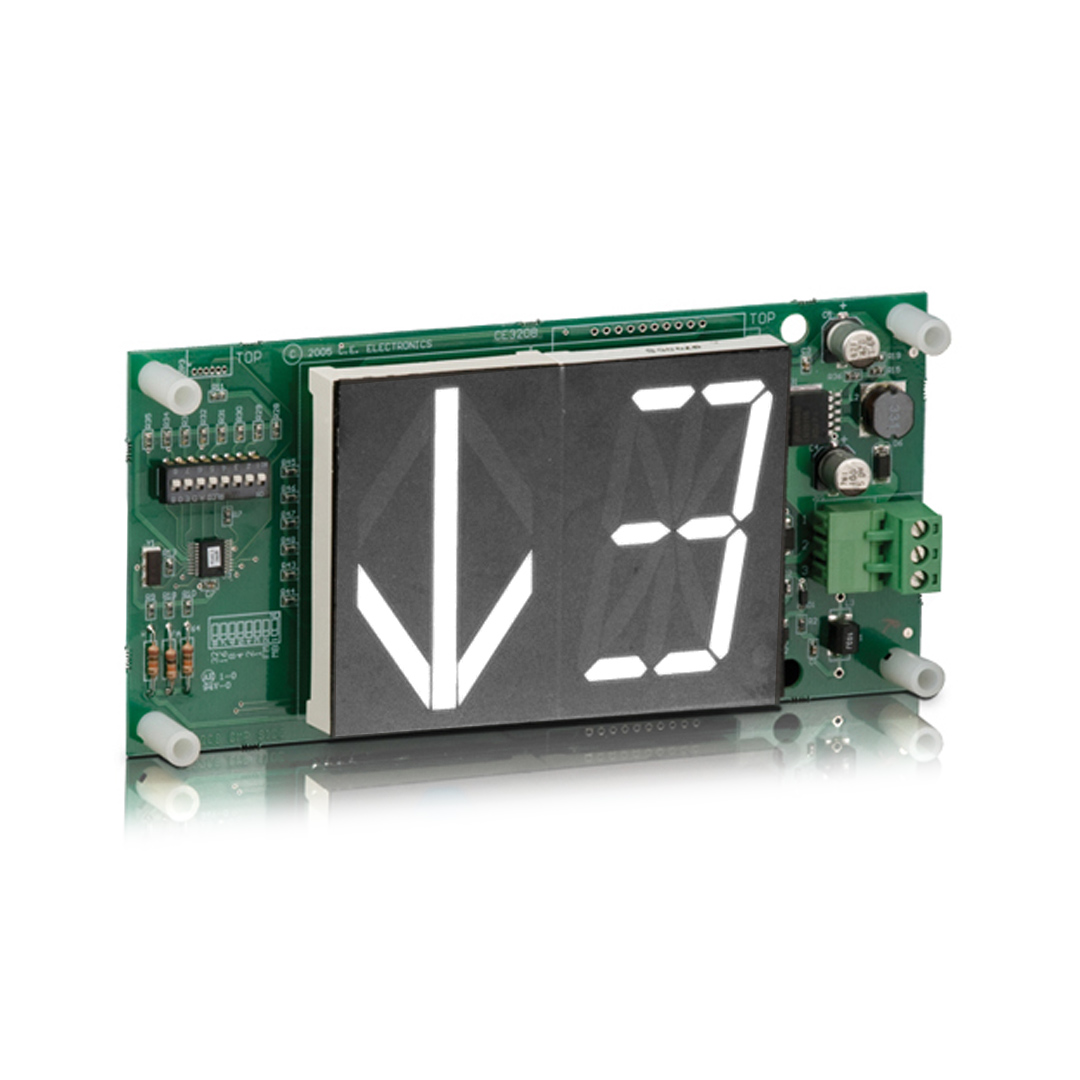

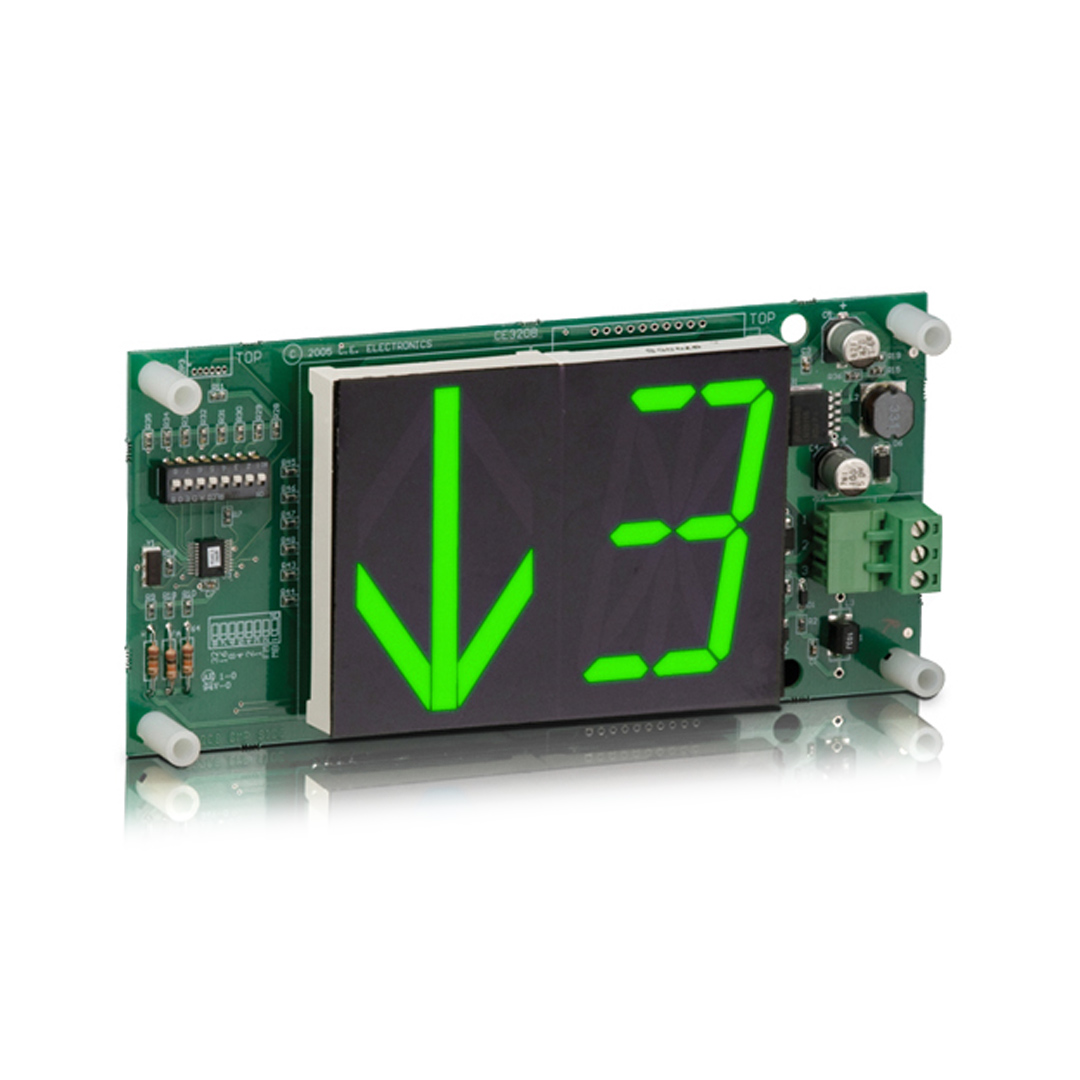

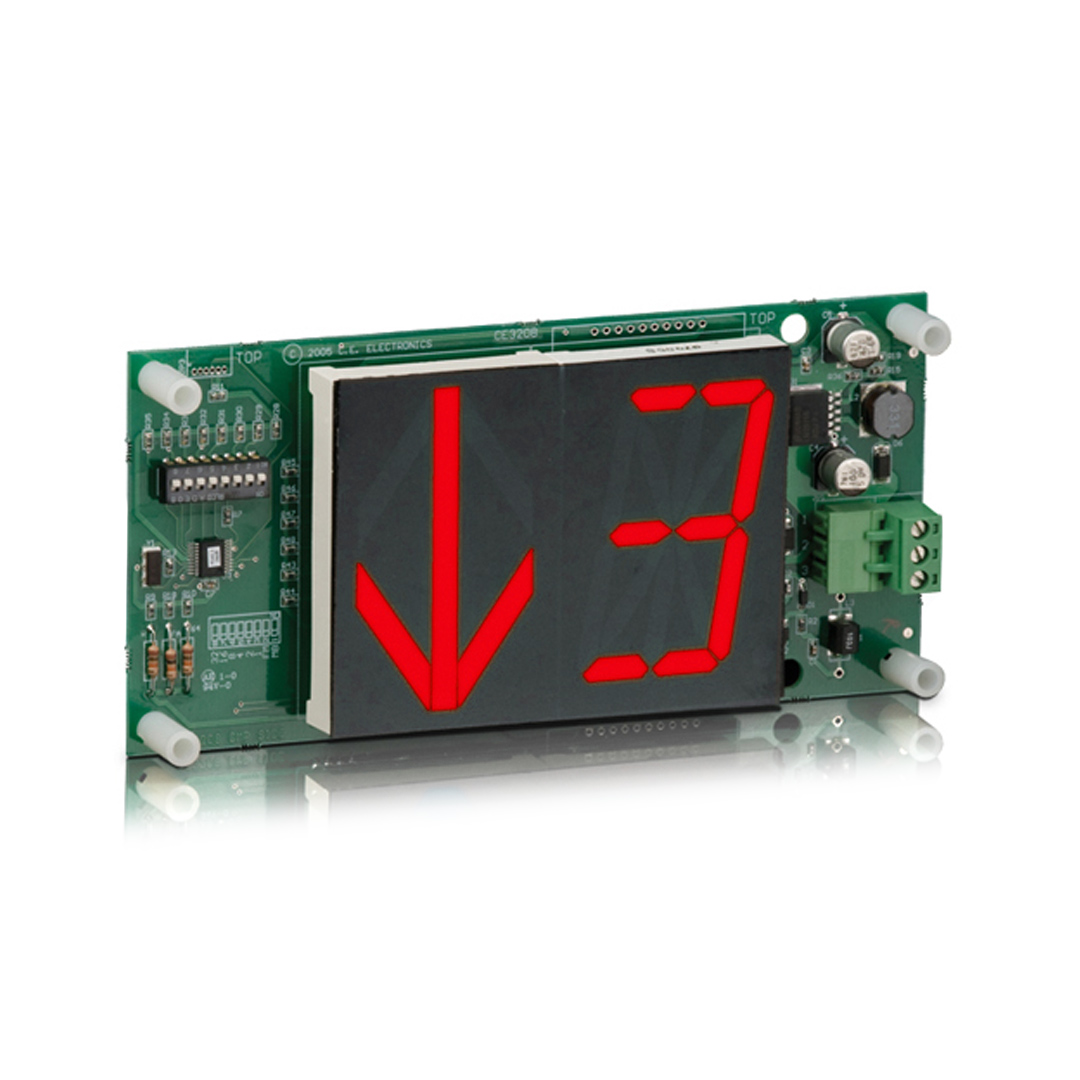

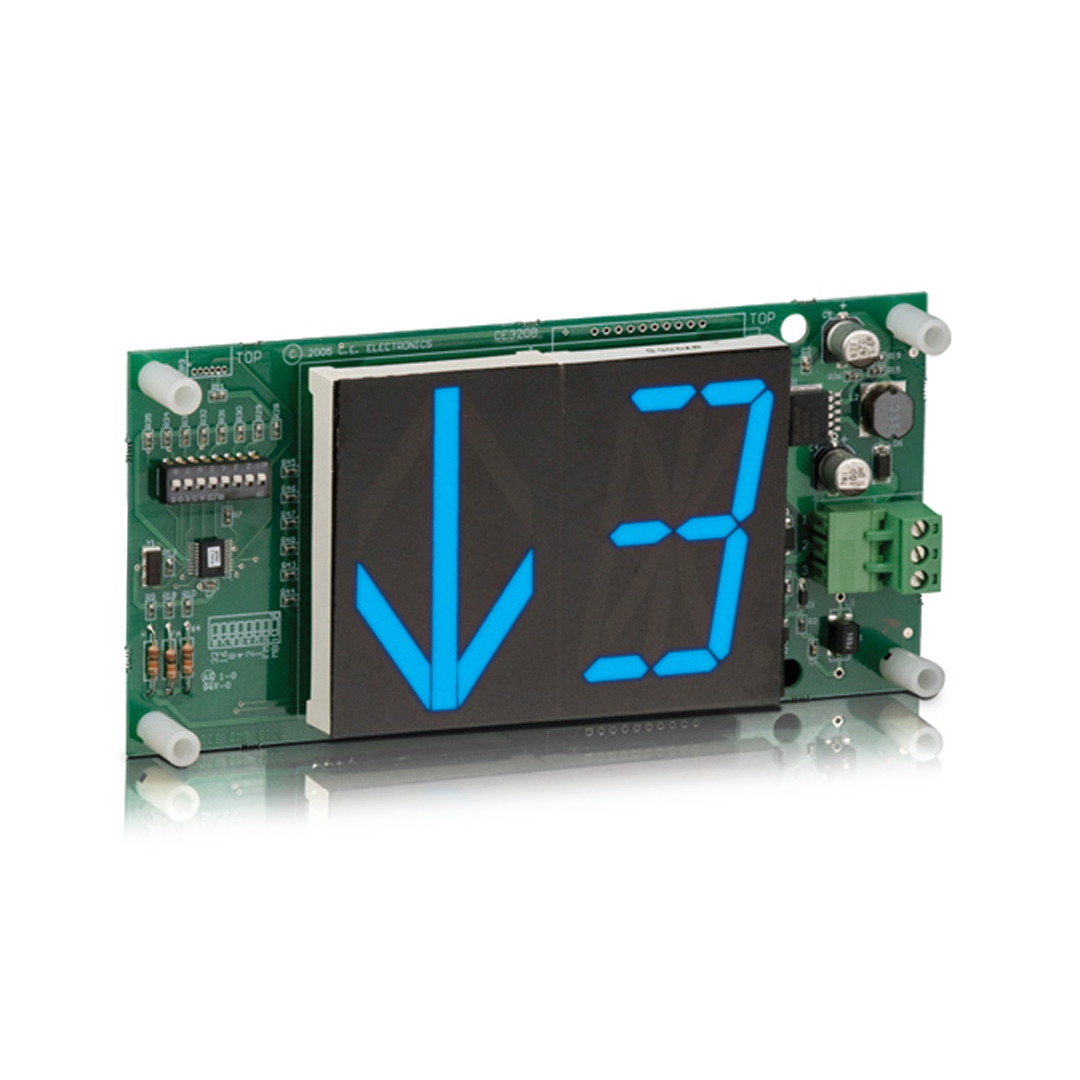

MH122A-XXX | 2.2″ CHARACTER | 2.5″ ARROW

REMOTE DISPLAY INDICATOR “RDI”  |  2.2″ CHARACTER – 2.5″ ARROW

Segmented LED, a digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed.

Typical Applications:

•  Car-OP Panel
•  Transom-car or Hall
•  Surface mount fixtures

Features:

•  Ultra-thin package
•  Fast, 3-wire hookup
•  Latched inputs
•  Crosswire protected
•  Self-testing
•  Alternate message
•  Passing chime output
•  Error detection and correction feature

Dimensions:

•  6.6″W x 3.1″H x 1.375″D*

(* Surface mount depth of 1″ available without passing chime option)

Note:

1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.
