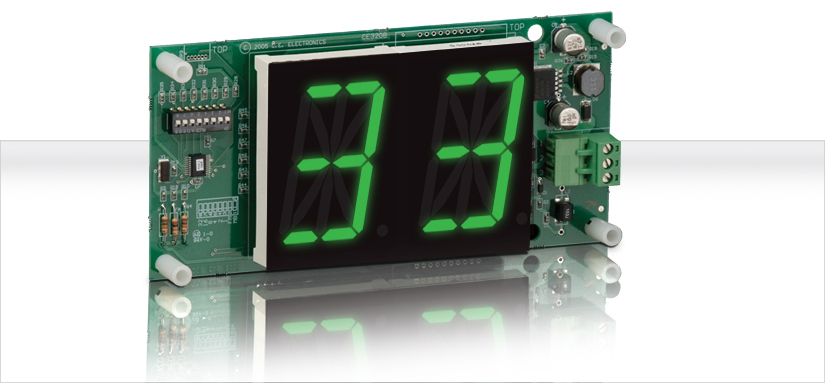

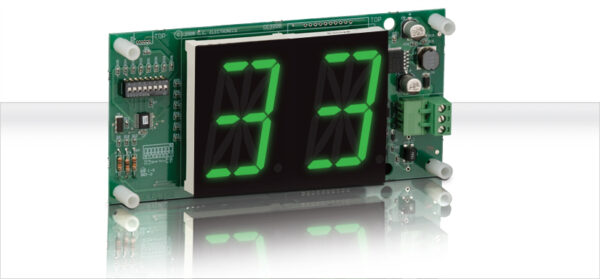

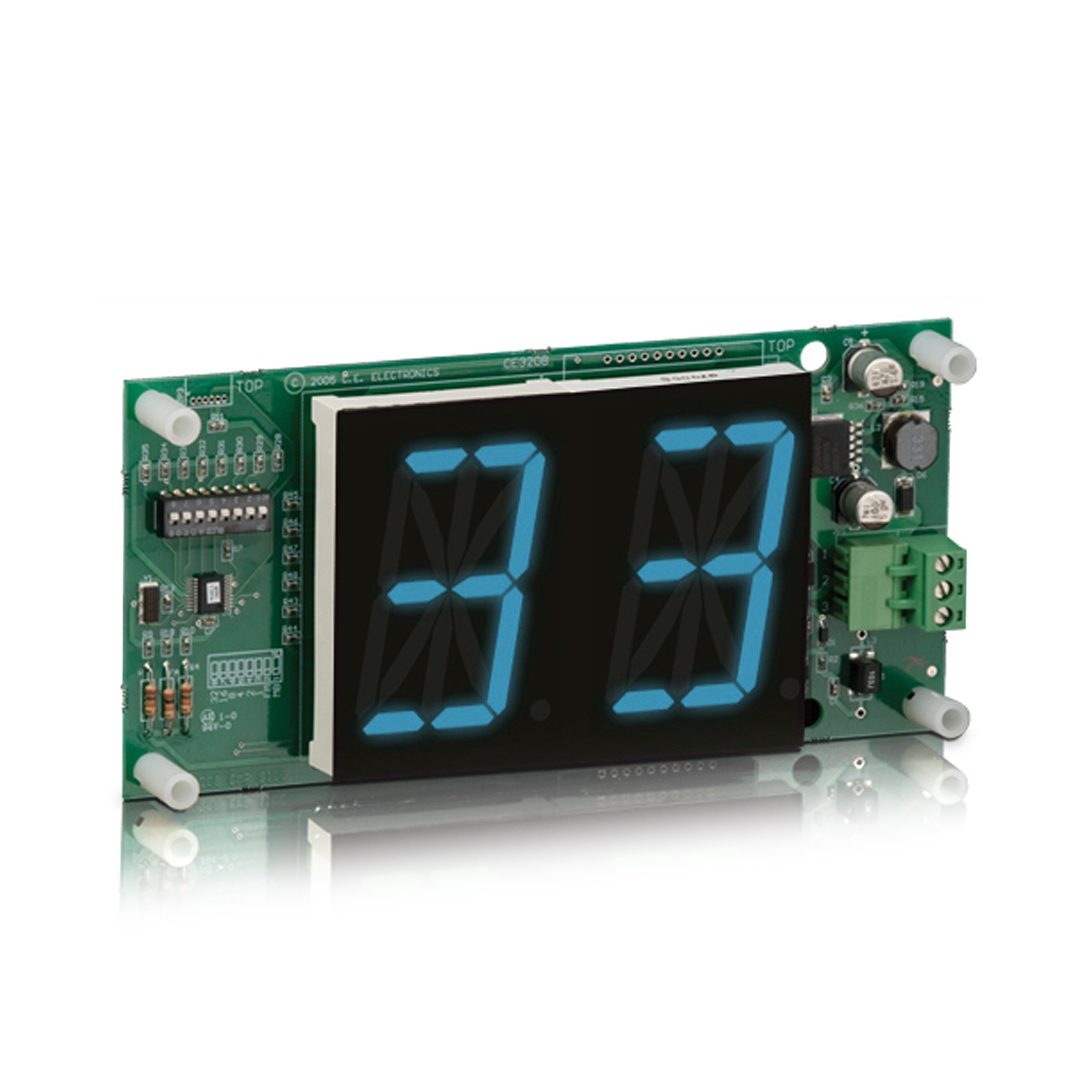

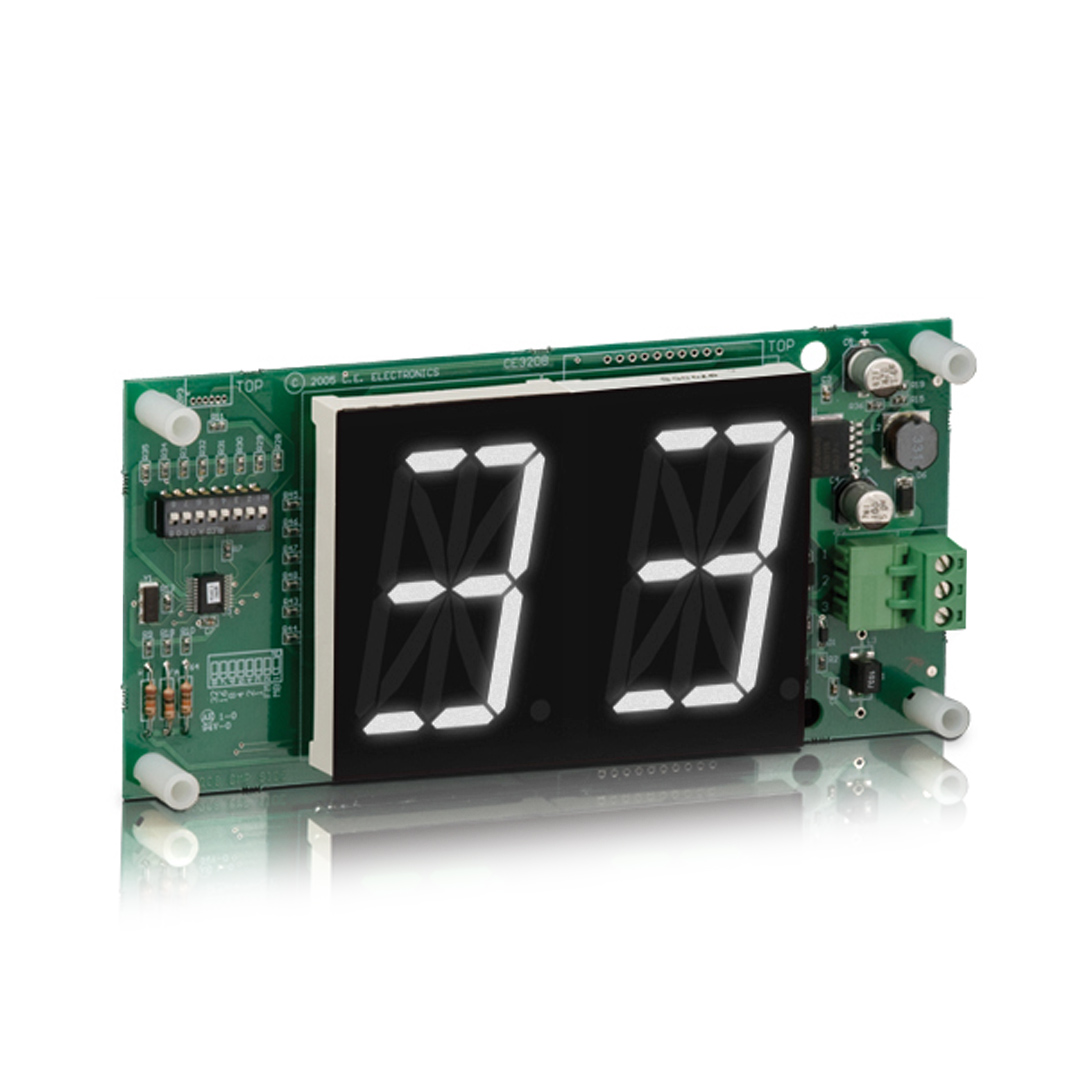

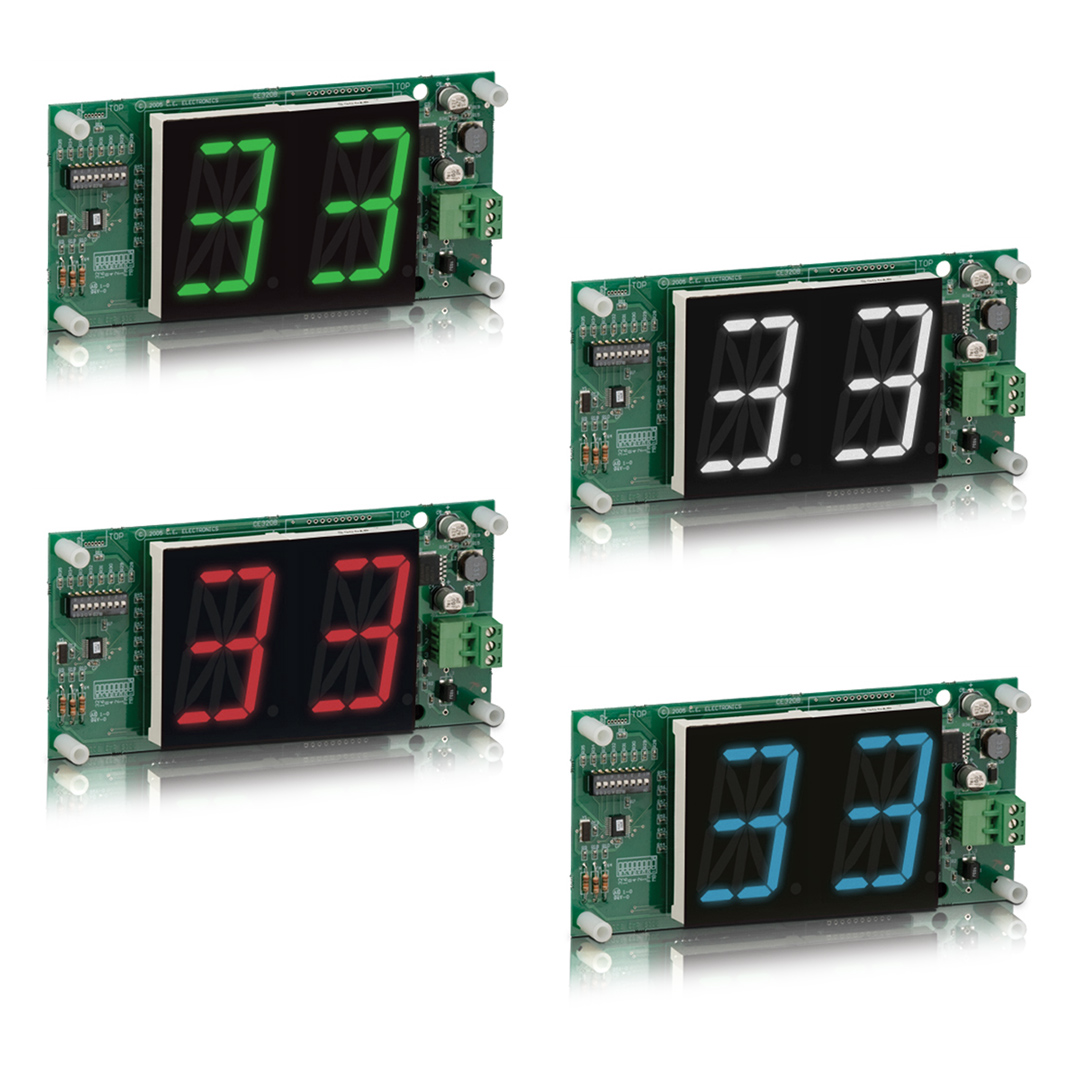

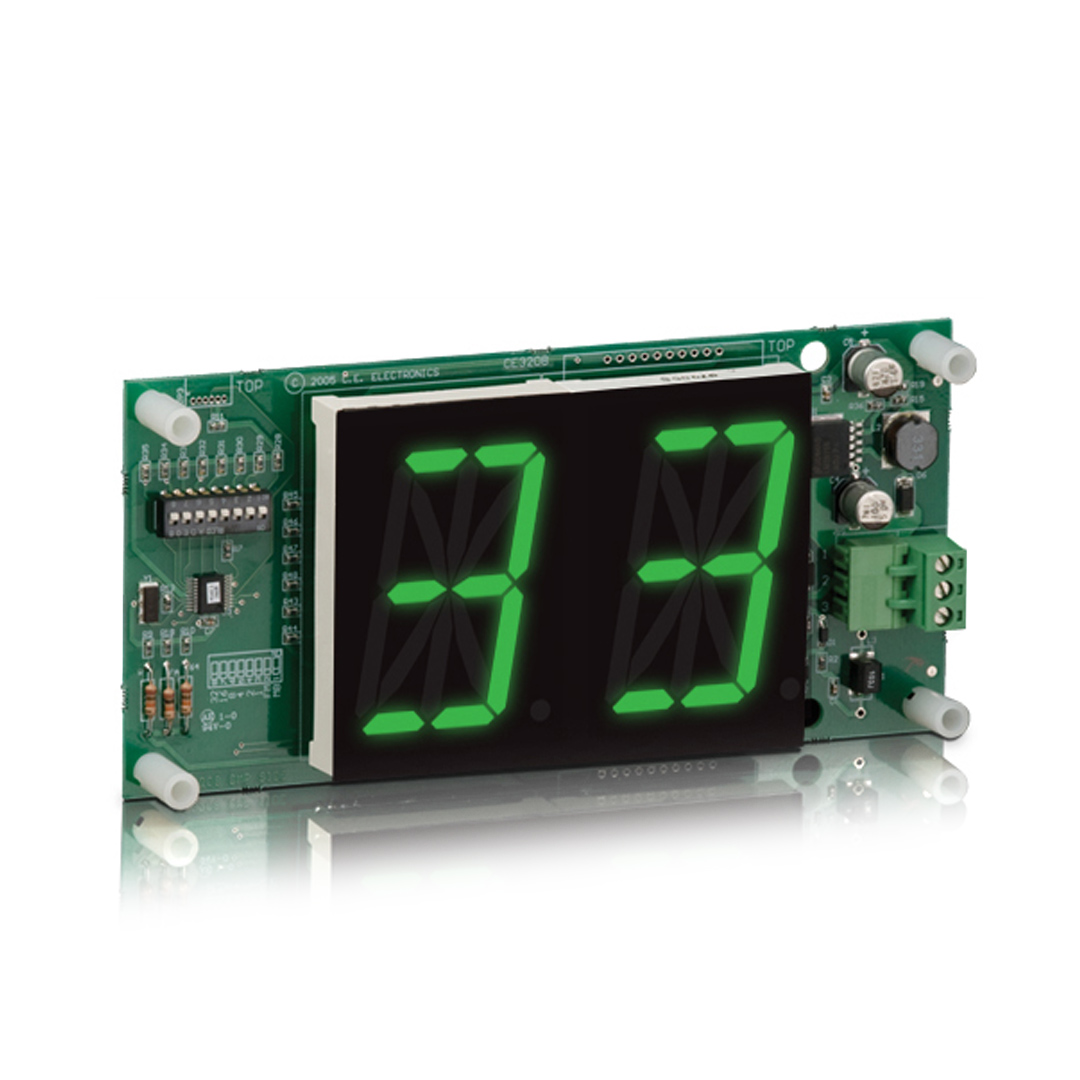

MH122-XX | 2.2″ CHARACTERS

REMOTE DISPLAY INDICATOR “RDI”  |  2.2″ CHARACTERS

Segmented LED, digital indicator for floor position display. Any alphanumeric character can be displayed in either single or double-digit floor designations.

Typical Applications:

•  Car-OP Panel
•  Transom-car or Hall
•  Surface mount fixtures

Features:

•  Ultra-thin package
•  Fast, 3-wire hookup
•  Latched inputs
•  Crosswire protected
•  Self Testing
•  Alternate message
•  Passing chime output
•  Error detection and correction feature

Dimensions:

•  7.0″W x 3.1″H 1.375″ D*

(* Surface mount depth of 1″ available without passing chime option.)

Note:

1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.
