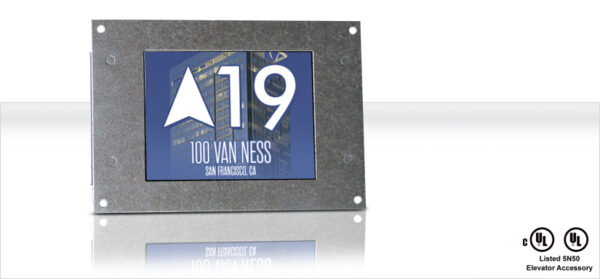

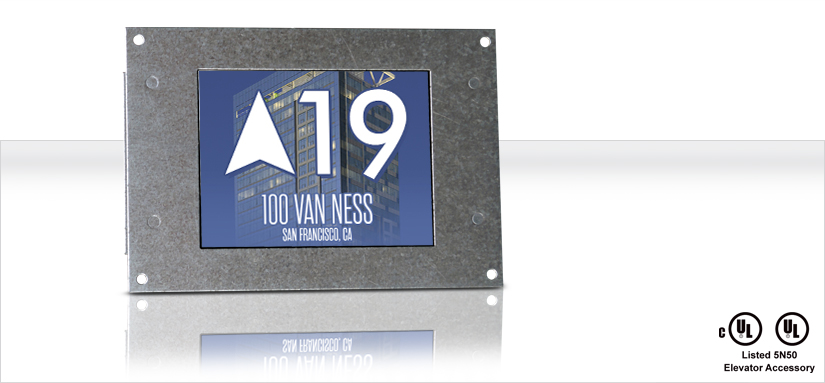

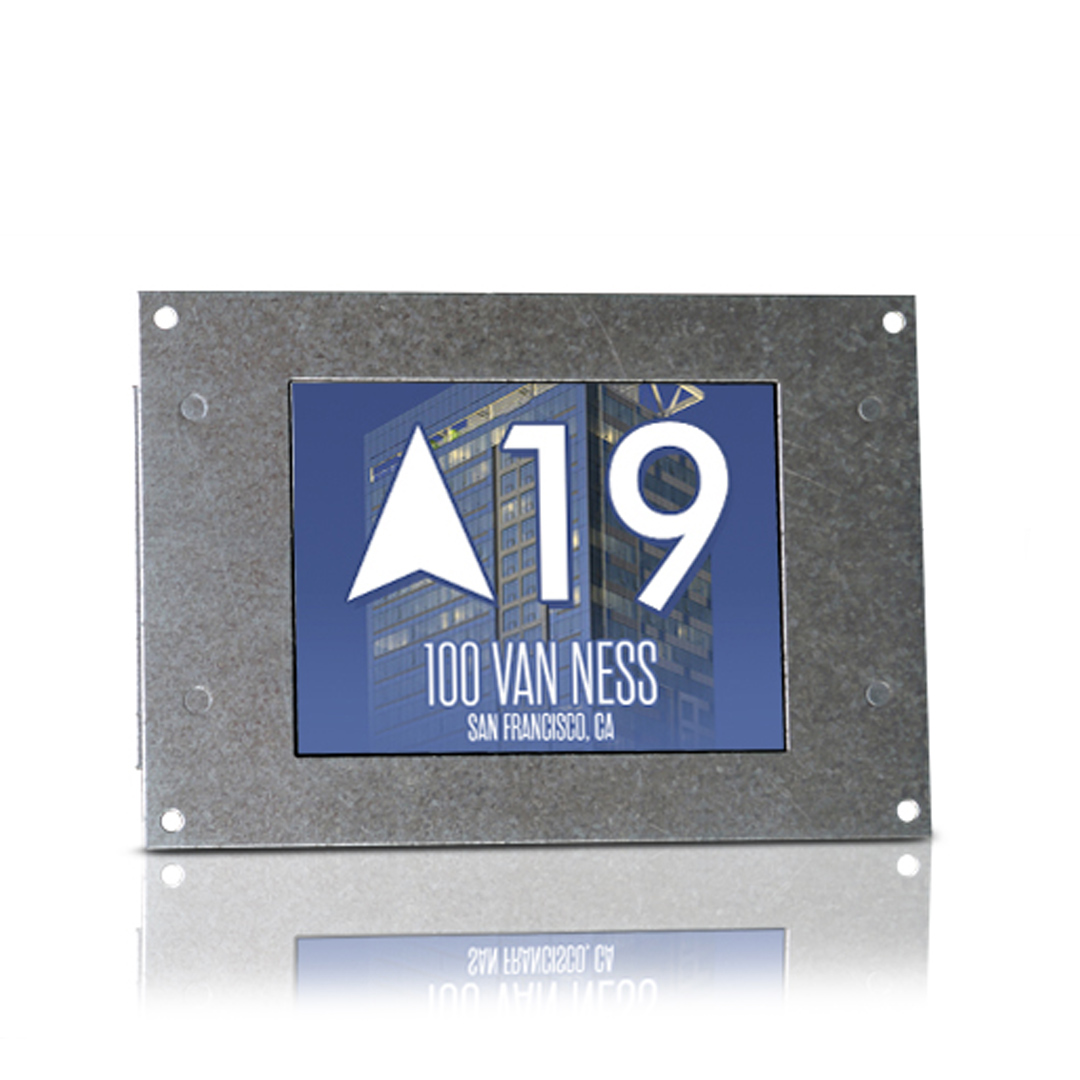

EMN57-BXX | 5.7″ TFT
VIEW: CATALOG PAGE | PANEL PREP: SMALL, HORIZONTAL, NARROW
DETAIL DIMENSION: SMALL, HORIZONTAL, NARROW MN57 WIRING DIAGRAM
DOWNLOAD: E-FLYER
5.7″ MINI PI
The Mini PI is a flexible position indicator that can be customized for any building or corporation. This customization can reflect architectural elements, color schemes, and corporation identity. Within this customization, information can be presented to passengers regarding the elevator’s current position and direction, arrival arrows along with priority messages from the controller. It’s also designed to be a destination-type display showing floors served when in destination mode. They are full color, have simple voice options, and are USB updatable.
These units also have a non-movement blanking to help preserve backlight life.
Typical Applications:
- Car operating panel
- Car transom
- Lobby/arrival arrows
- Destination Display
- Message
Features:
- Voice Capabilities
- Passing Chime Output
- Self Testing
- USB Updatable
- Low Profile
- Destination Display
- Backlight Saver Function / Default On
- MICRO COMM Input
Dimensions:
- Small (Standard Part): 6.750″ W x 4.500″ H x 1.750″ D | 171.45mm W x 114.30mm H x 44.45mm D
- Horizontal: 7.250″ W x 5.000″ H x 1.750″ D | 184.15mm W x 127mm H x 44.45mm D
- Vertical: 6.000″ W x 6.000″ H x 1.750″ D | 152.40mm W x 152.40mm H x 44.45mm D
Notes:
Standard lens: add .125″ * Depth includes room for reasonable wiring space.
Some features may not be available for your system. Please check with your manufacturer or engineer for special features.
Must be used with a driver.
