EH310-XXXXX | 30mm Dot Matrix [1″] CHARACTERS

SKU: EH310-XXXXX Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM: DISCRETE | MICRO COMM

DOT MATRIX

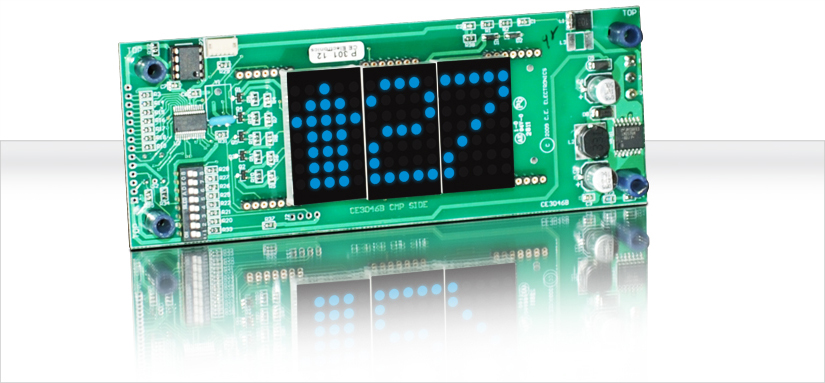

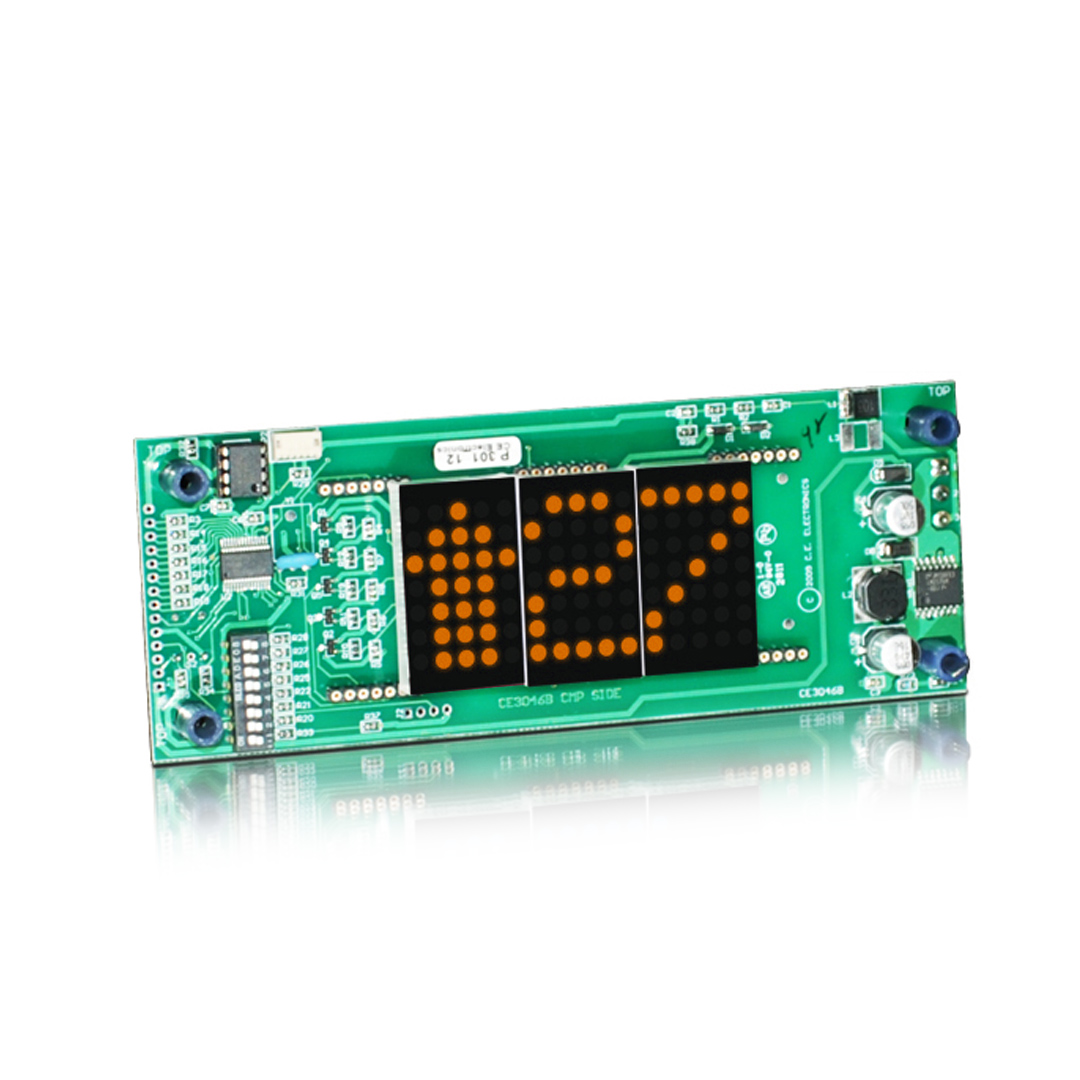

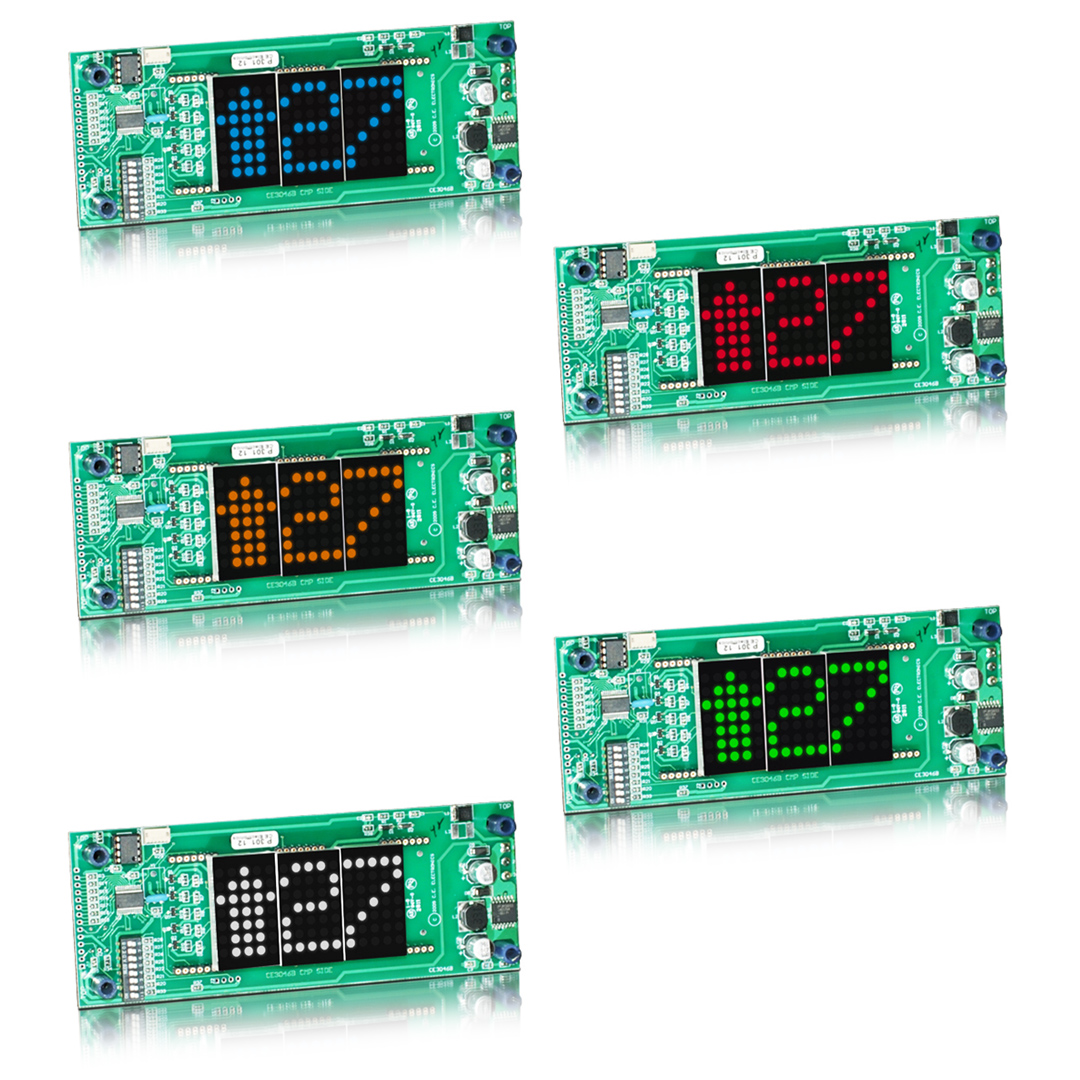

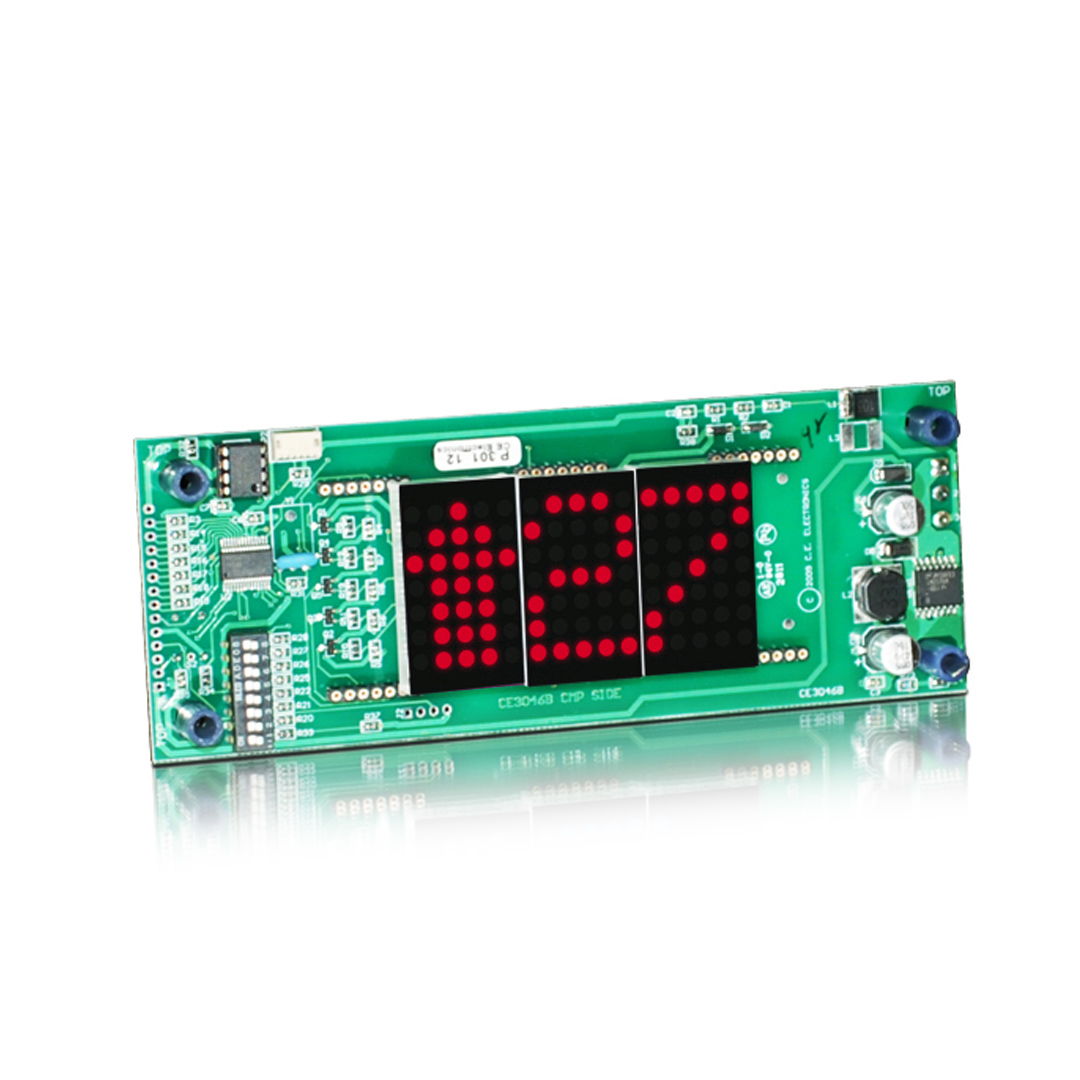

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with seperate “UP” and “DOWN” arrow. Double-digit with a single “UP/DOWN” arrow, or triple-digit floor designations.

Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low-cost design
  •  Self-contained unit
  •  Latched input
  •  Scrolling & rollover
  •  Hall lantern option
  •  Passing chime output
  •  Self Testing
  •  Message inputs
  •  Error detection and correction feature

Dimensions:

  •  160mm W x 60mm H x 44.5mm D  |  6.299″W x 2.362″H x 1.75″D



Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.
