DH320-XXXXX | 2″ CHARACTERS

SKU: DH320-XXXXX Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM: DISCRETE | MICRO COMM | METAL | E-FLYERS

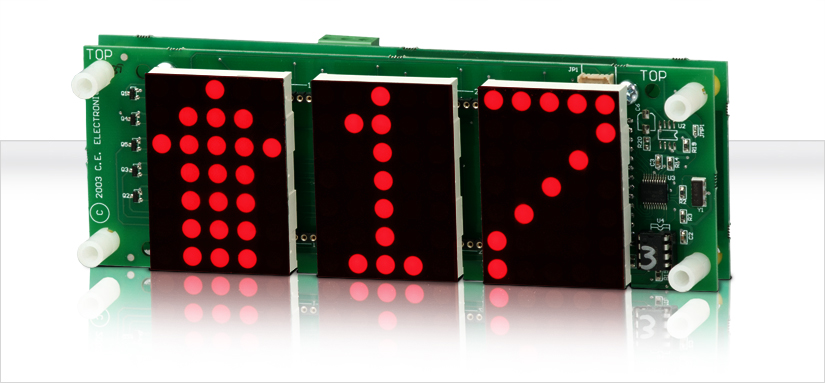

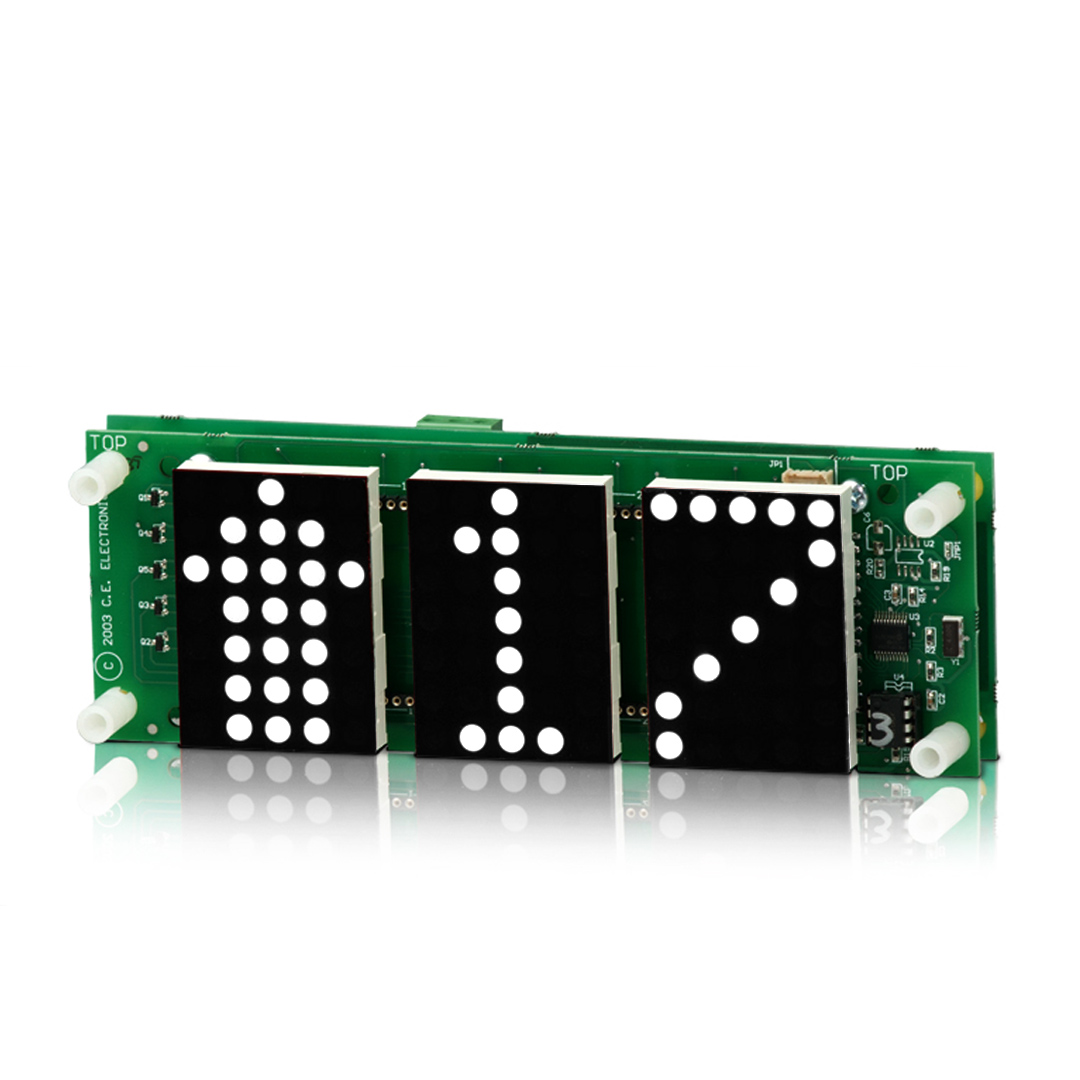

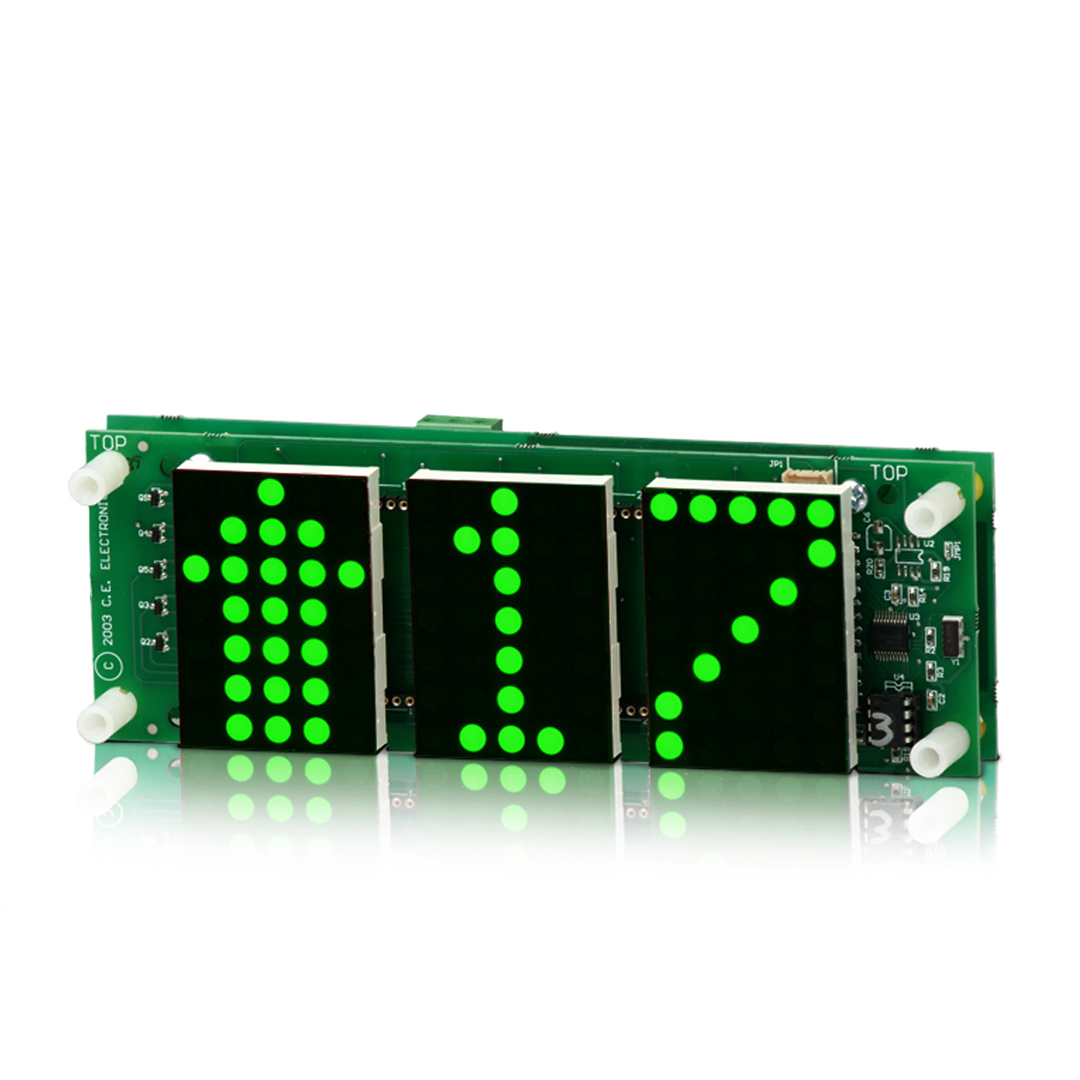

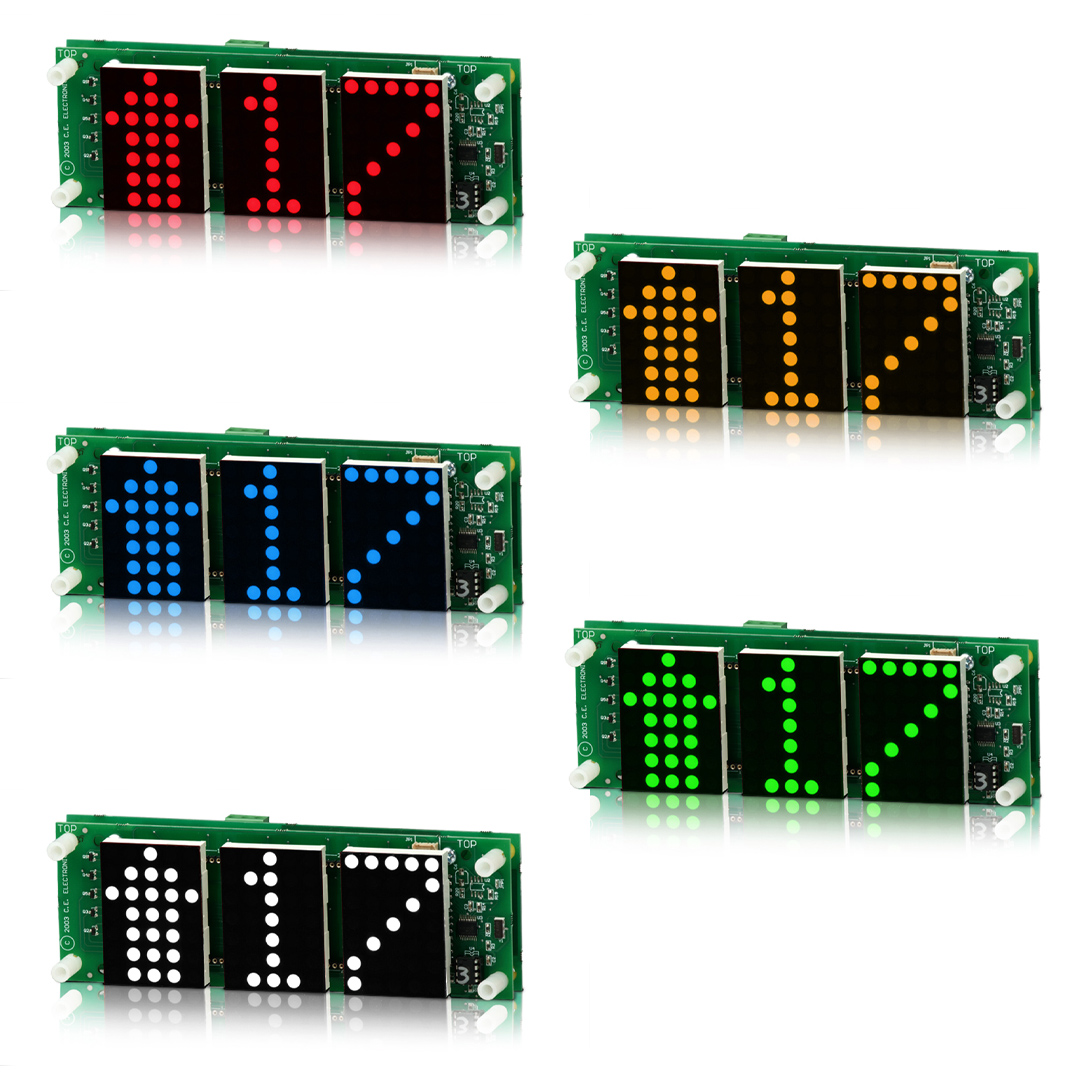

DOT MATRIX LED DIGITAL INDICATOR

Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with separate “UP” and “DOWN” arrows. Double digit with single “UP/DOWN” arrow, or triple digit floor designations.



Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low cost design
  •  Self contained unit
  •  Latched input
  •  Self Testing
  •  Scrolling
  •  Passing chime output
  •  Error detection and correction feature
  •  UL listed

Dimensions:

  •  6.8″W x 2.35″H x 2.6″D



Notes:

1. If a special voltage is required, please consult factory.

2. *110VAC not required for power supply on MICRO COMM units.

3. *Blue can not be mixed with other colors.
