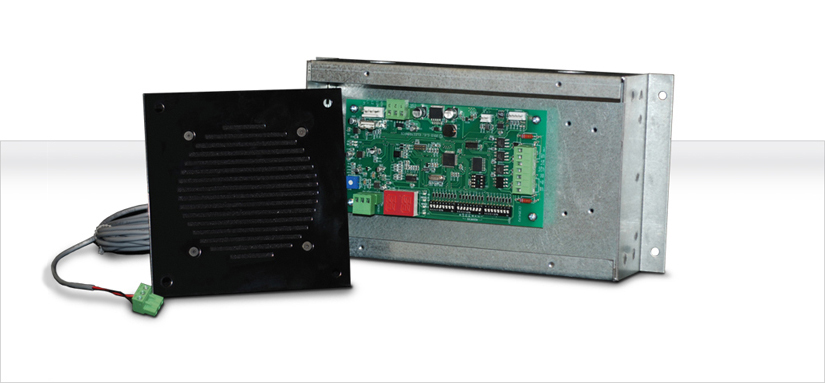

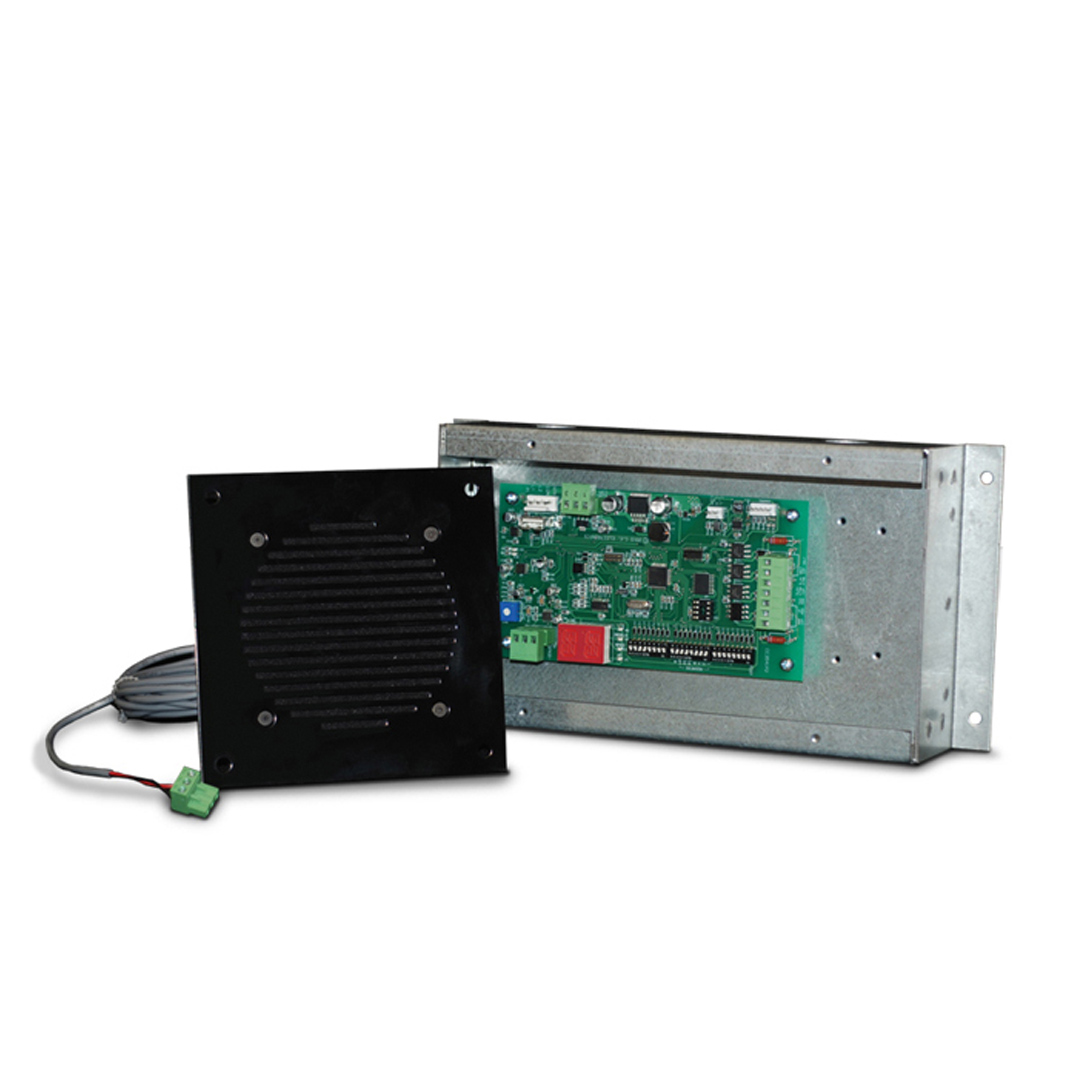

VM3541-XXXXX | DIGITIZED FLOOR ANNUNCIATOR

DIGITIZED FLOOR ANNUNCIATOR

The basic system includes up to eighty different messages, with a total message time of 8 minutes. The unit can be used on the MICRO COMM 3 wire network with no additional wires. An option for up/down and door strobe can be signaled at the device.

Features:

• Custom Vocabulary
• Up to 8 minutes of speech
• Human Voice
• Male or female voices
• Add on to existing P.I.s
• MICRO COMM inputs
• Conforms to AGAAG 4.10.13
• Includes sealed mid-range speaker
• Receives ASCII

Dimensions:

• 5.875″W x 11.50″H x 2.375″D   |   SPEAKER: 5.88″W 5.88″H x 2.25″D

Notes:

1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.

2. The digitized Voice Annunciator (VM3541-XXXXX) must be mounted within 20′ of the speaker or damage will result! C.E. #40040001 matching transformers may be purchased for greater distances – consult the factory.

3. If a special voltage is required, please consult the factory.
