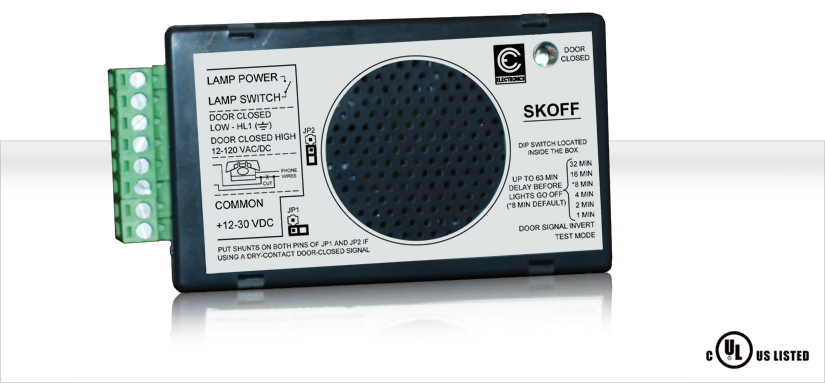

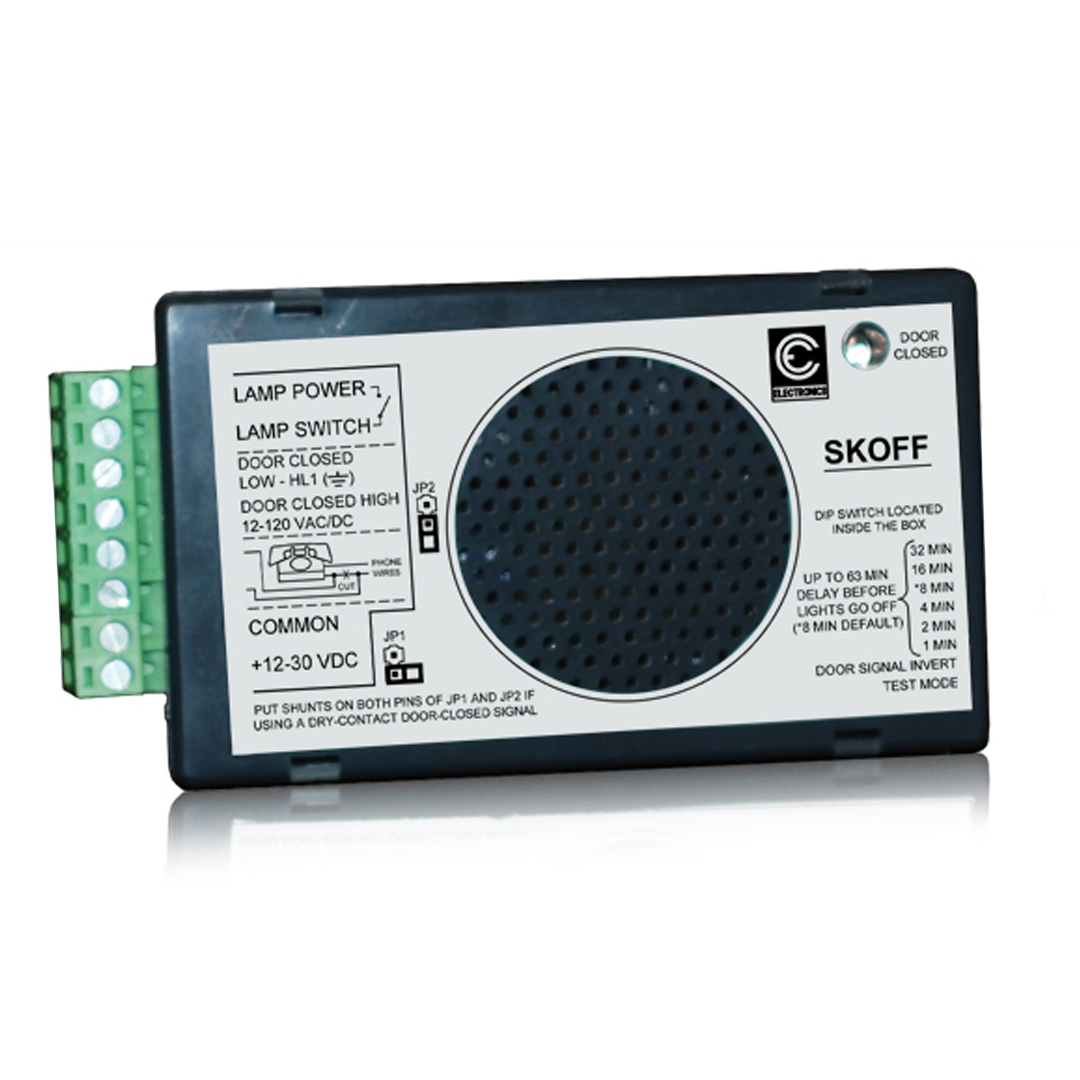

SKOFF | INTELLIGENT LIGHTING SHUTOFF

INTELLIGENT LIGHTING SHUTOFF

A solid-state light override circuit unit that looks at door close signals and after a selectable pre-determined time, operates a relay that turns the lamp/fan circuit off. Door signals that change the state of the control, restores the lamp circuit. The device also has a phone interrupt circuit that overrides the device for 24 hours.

Features:

•  Adjustable time signal
•  Compact design
•  Fast 3M Velcro fastener
•  10A, 125V Relay
•  Door signal invert dip switch
•  12-30volt power input
•  Otis RSL or MICRO COMM power input accepted
•  Optional power supply #PS40101301

Dimensions:

•  2.415″W x 4.15″H x 0.910″D
