SA130-XXXXX | 3.0″ LED ARROW

SKU: SA130-XXXXX Categories: ,

VIEW: CATALOG PAGE

METAL: Applied Short 70100001 | Applied Narrow 70100009
Surface Mount Narrow 70100010 | Surface Mount Short 70100012

E-FLYER

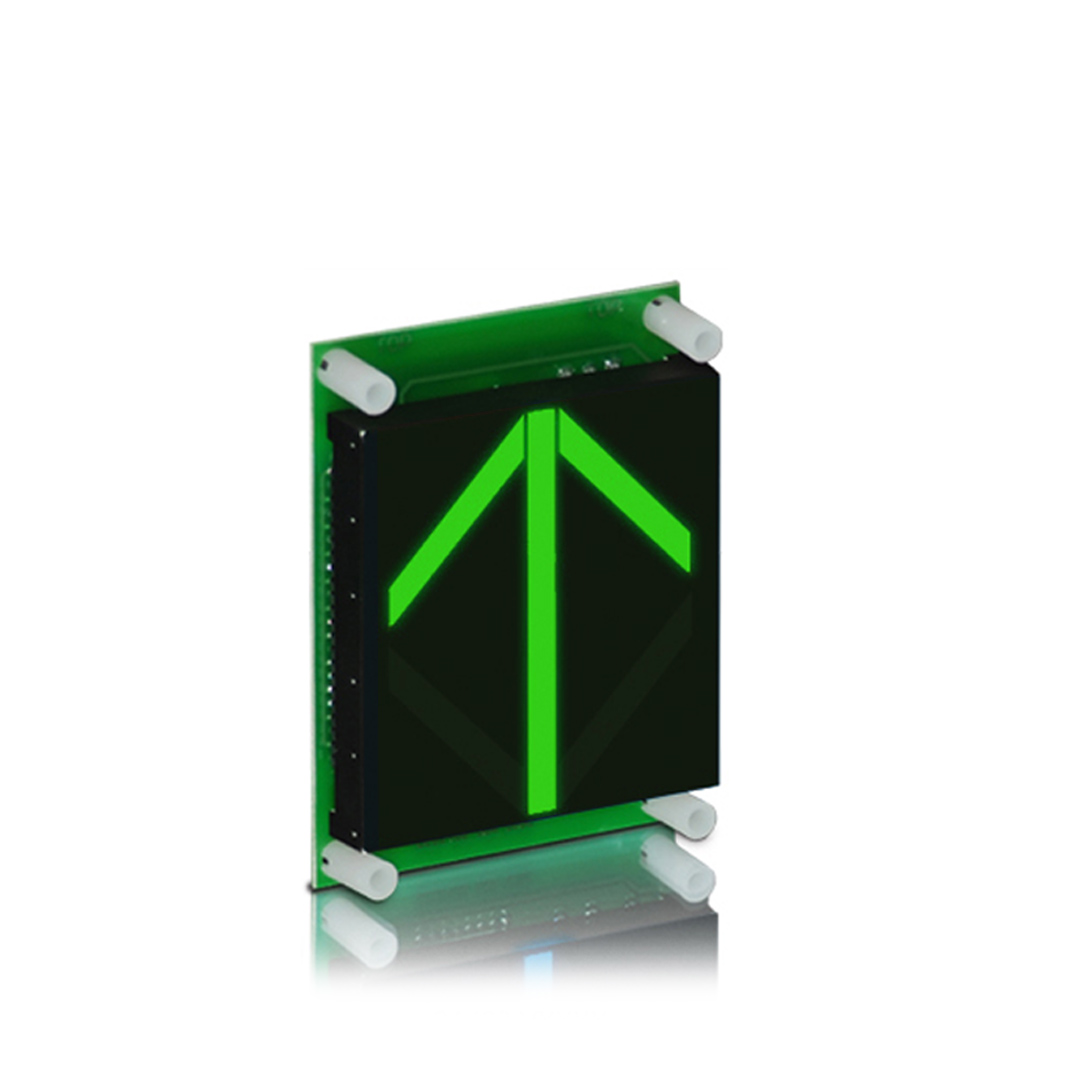

3.0" LED ARROW

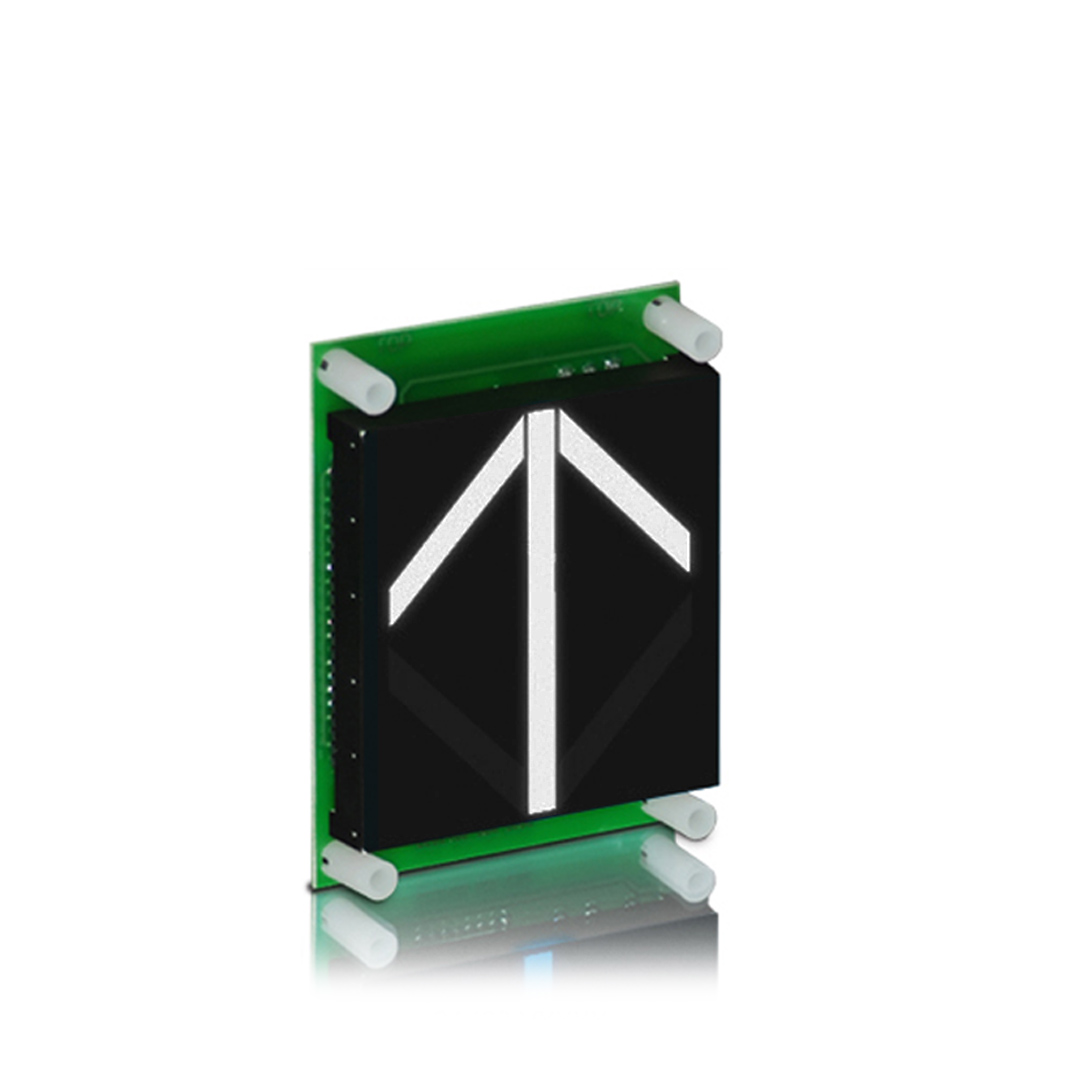

Long life, solid state bi-color, blue or white arrows for lanterns.



Typical Applications:

  • Hall or car lanterns

Features:

  • Ultra-thin packaging

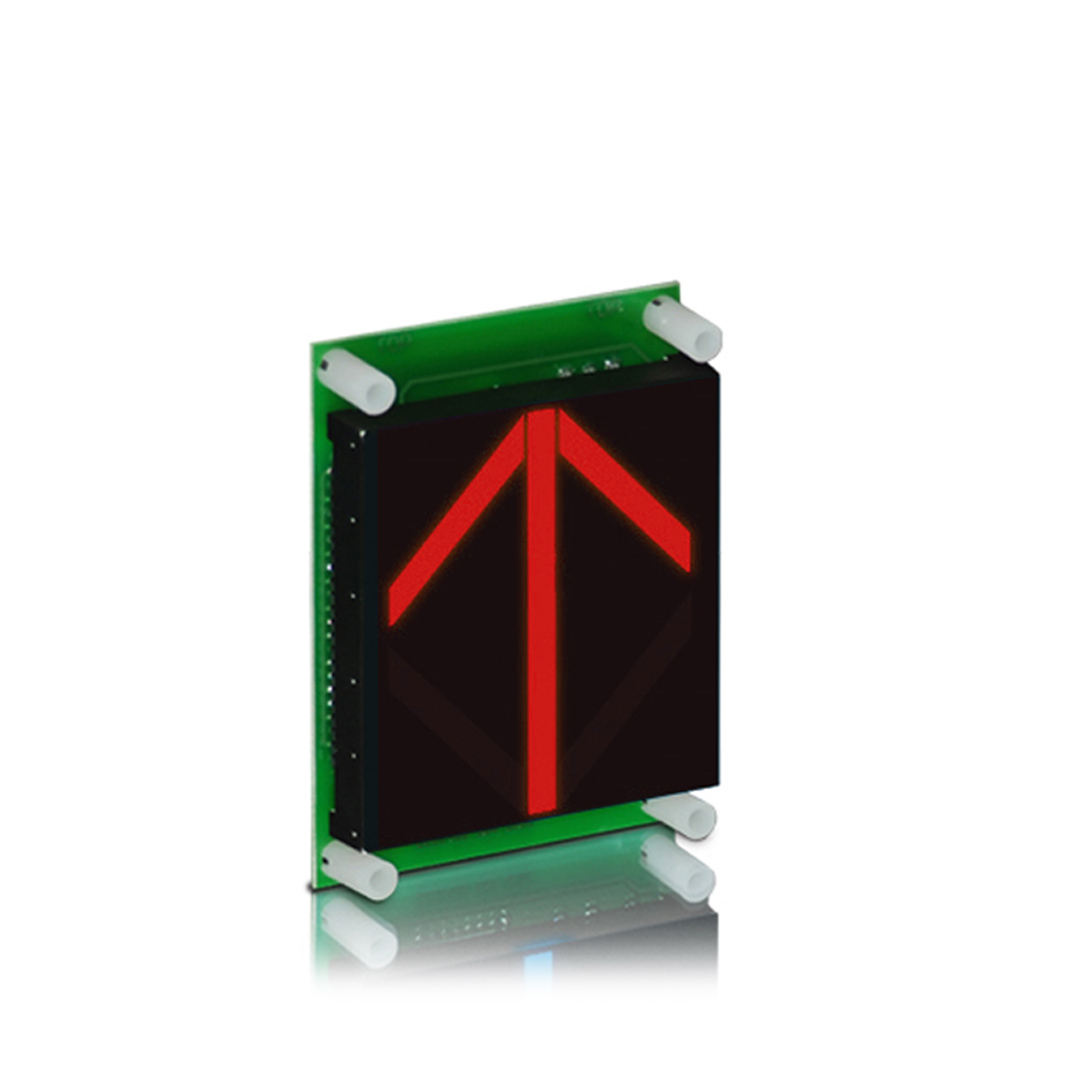

  • Bi-color, red down/green up or solid blue, solid white
  • Fast 3-wire hookup
  • Conforms to ADAAG 4.10.4
  • Jamb mountable (Vertical style only)





Dimensions:

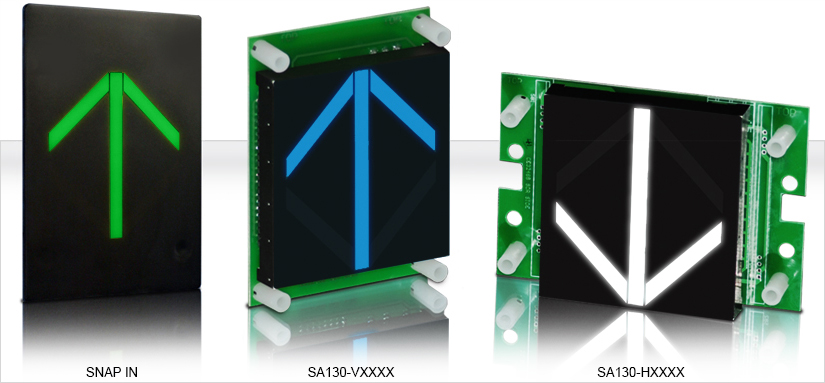

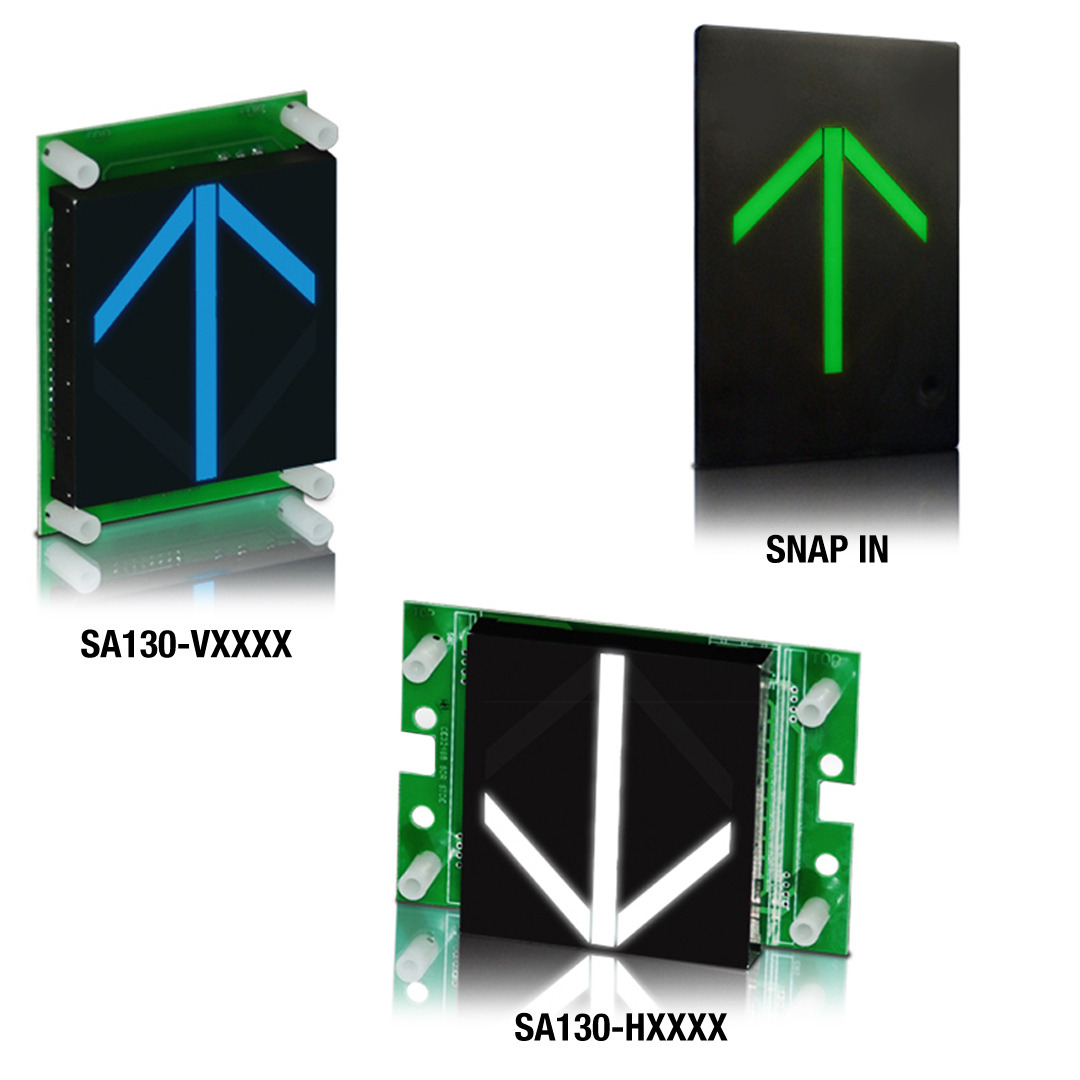

  • SA130-VXXXX: 3.00"W x 4.00"H x .85"D (NOTE: On MICRO COMM units, depth is 1.50")
  • SA130-HXXXX: 4.50"W x 3.10"H x .85"D (NOTE: On MICRO COMM units, depth is 1.25")
  • SNAP IN: 3.4"W x 5.2"H x 1.5"D (Vertical only)
