SA130-VOSXX | 3.0″ LED VERTCAL ARROW

SKU: SA130-VOSXX Categories: ,

VIEW: CATALOG PAGE | WIRING DIAGRAM

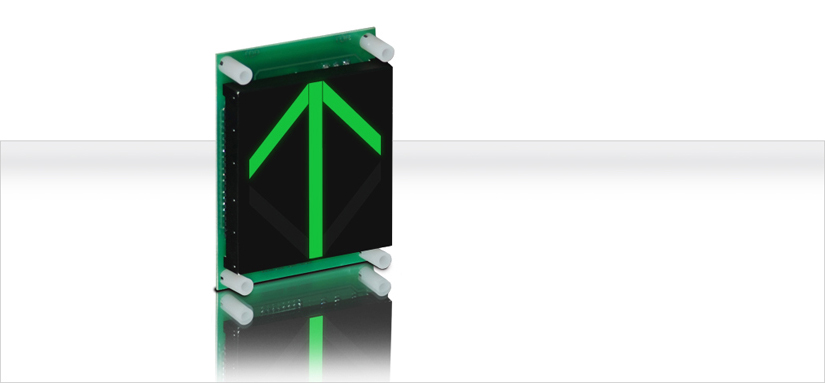

3.0″ LED VERTICAL ARROW

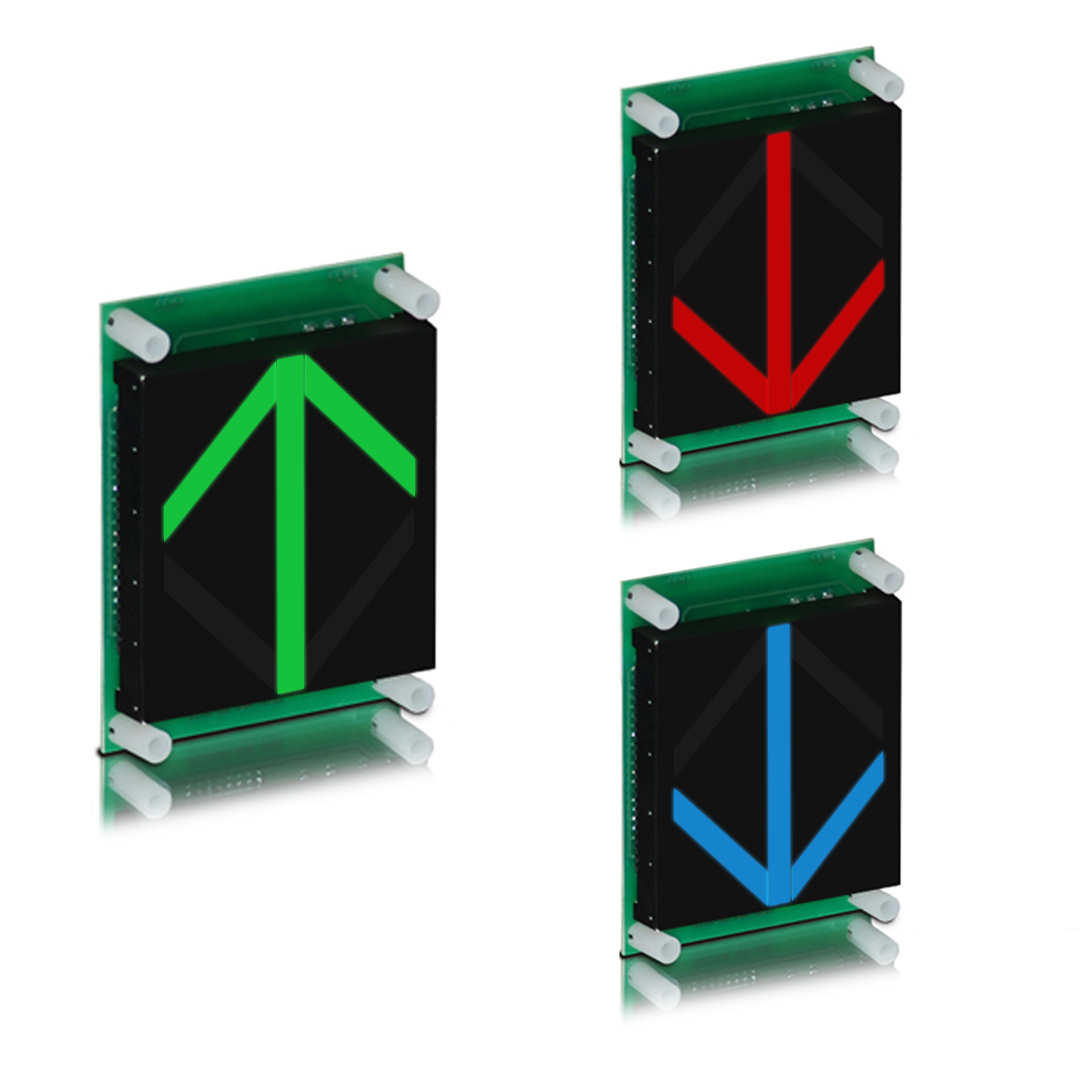

Long life, solid state vertical arrow for lanterns, 100,000 hour rated life. Accepts signals from Otis serial CDL link. The bi-color arrow is green for up and red for down or optional blue.

Typical Applications:

  •  Hall and car lanterns, arrival or traveling

Features:

  •  Ultra-thin packaging
  •  Bi-color
  •  Red down/green up or solid blue
  •  Jamb mountable
  •  Fast, 4-wire hookup
  •  1-year factory warranty
  •  Conforms to ADAAG 4.10.4
  •  Includes gong

Dimensions:

  •  3.00″W x 4.00″H x 1.50″D  |  3.0″ ARROW

Note:

Older SA130-OSX = SA130-VOSX
