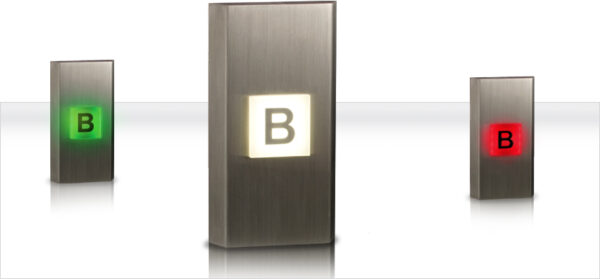

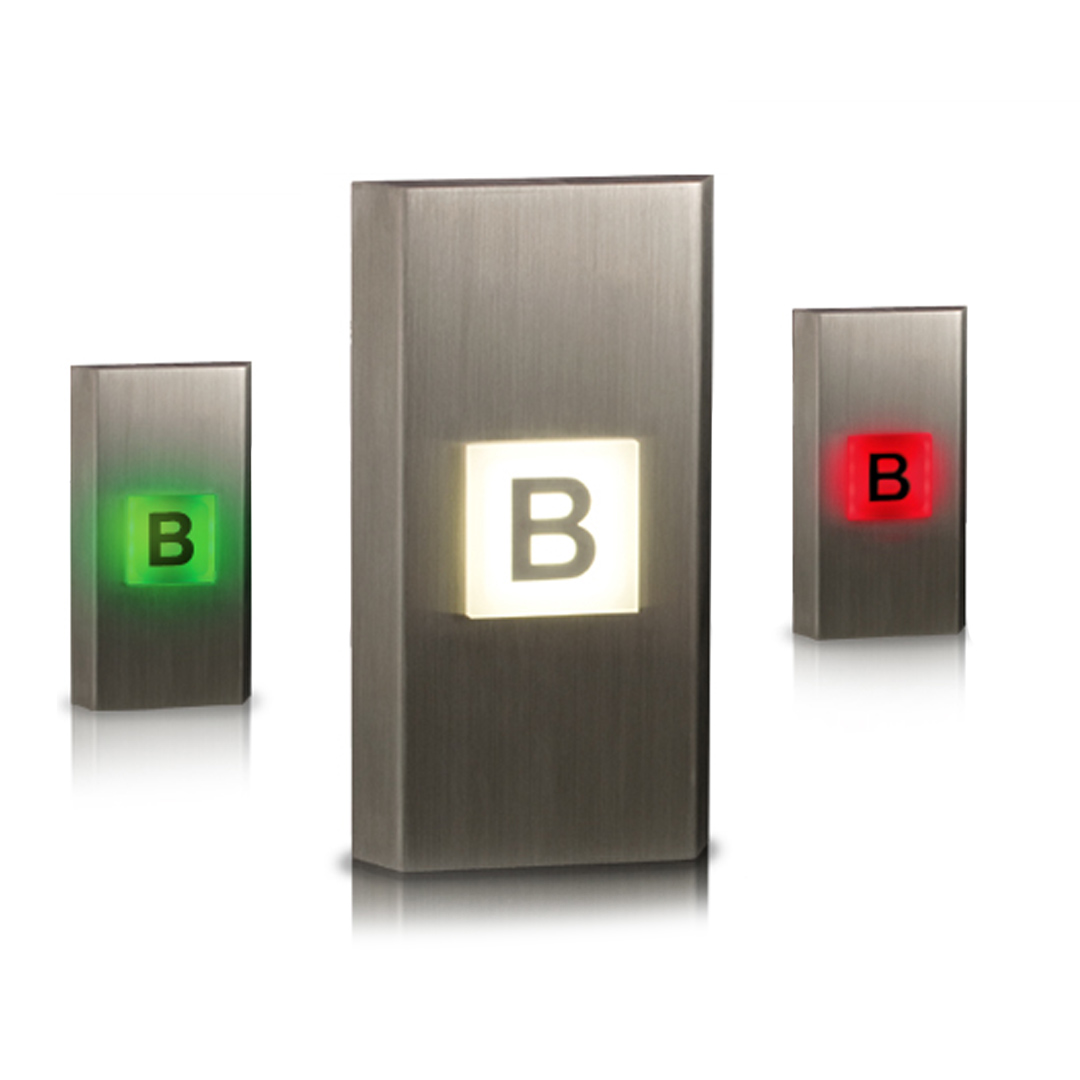

OBOX-X | 3″ LED EXTENDED DESTINATION ARROW

3″ LED EXTENDED DESTINATION BLOCK

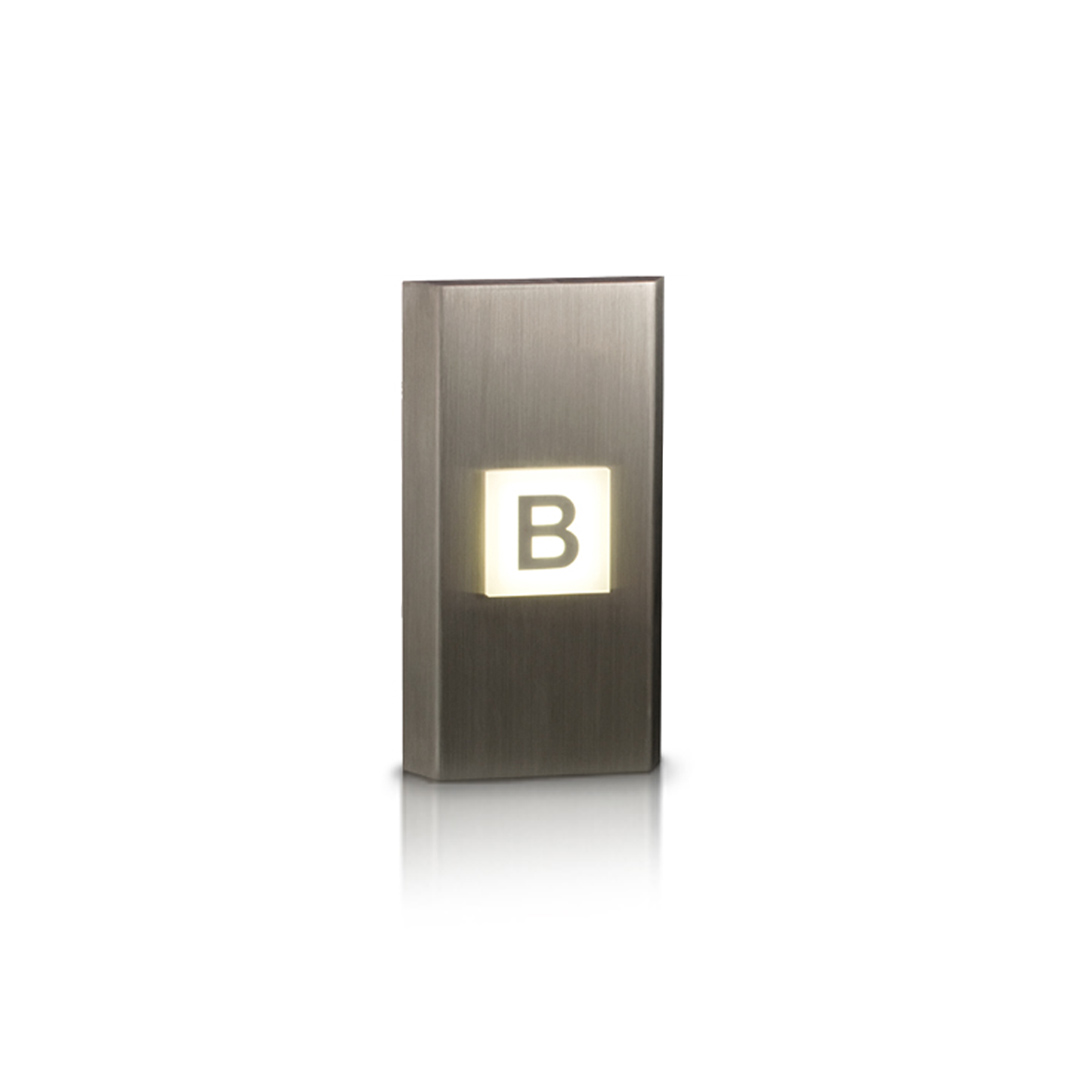

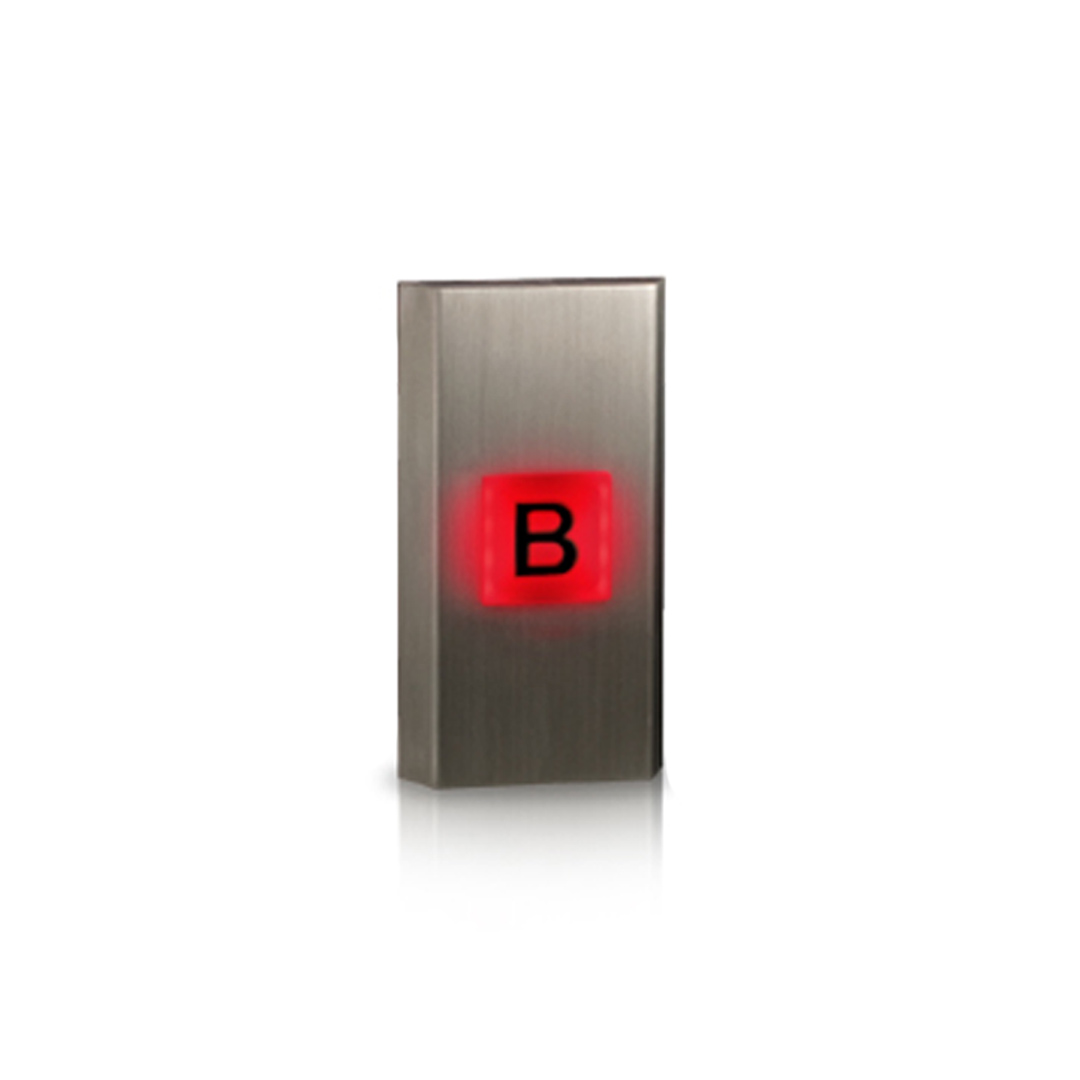

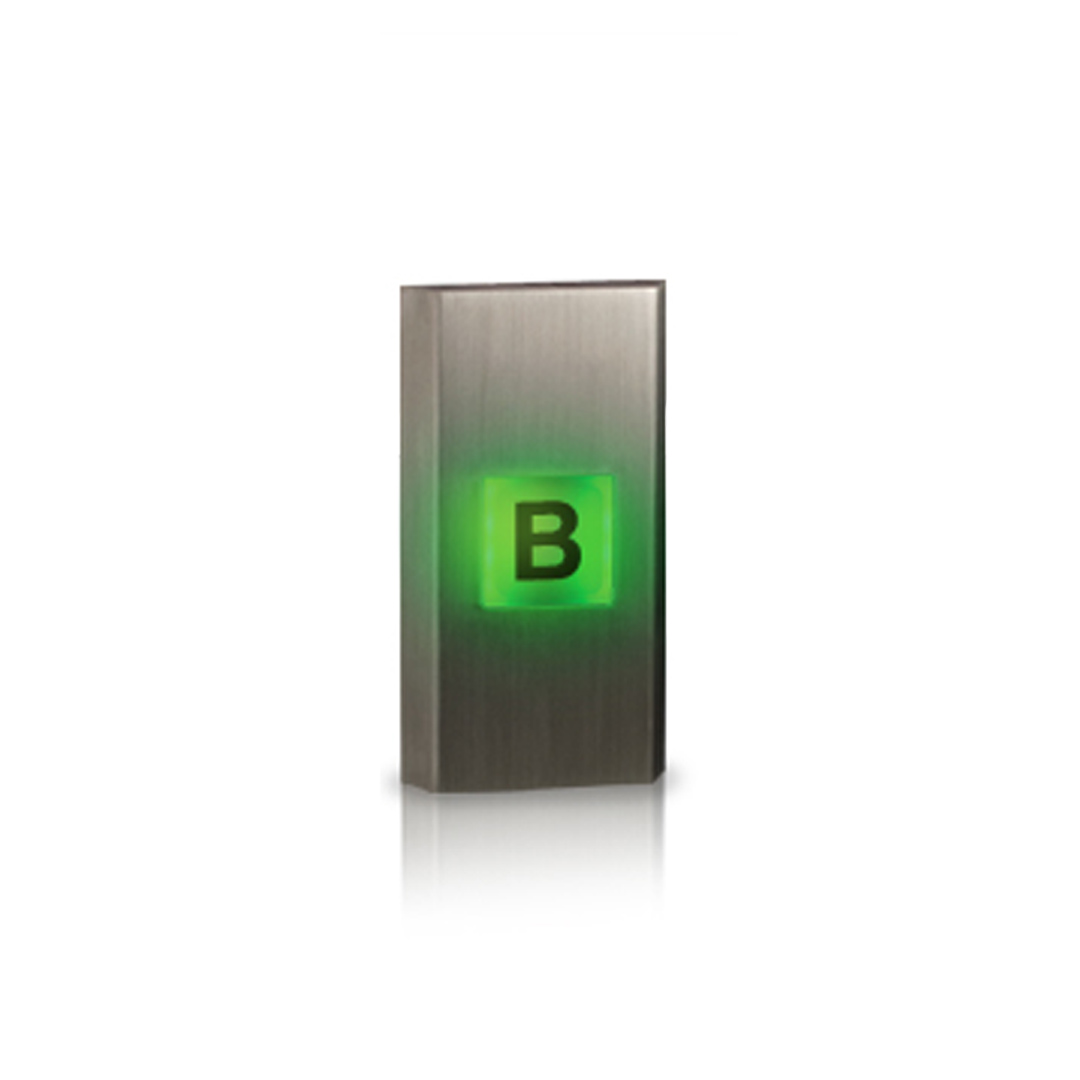

Long life, solid state LED’s with a 100,000 hour rated life. Accepts existing signals over the Otis RSL link. It includes white LED’s when floor is available. For arrival they turn either green in the up direction or red in the down with destination characters for 180° viewing. The unit is also equipped with an arrival speaker and destination tones. The programming is dip switch selectable.

Typical Applications:

•  Destination Indicator with auto fill arrows

Features:

•  2″ characters
•  180° viewing angle lantern
•  1 year factory warranty
•  Conforms to ADAAG 4.10.4
•  Includes speaker for tones
•  Otis RSL input
•  ECA
•  Optional Metal

Dimensions:

•  4.000″W x 4.000″H x 1″D (Clearance for electronics)

Note:

Some features may not be available for your system. Please check with your manufacture or engineering for special features.
