MSL05-XXXX | SCROLLING MESSAGE DISPLAY

SKU: MSL05-XXXX Category:

VIEW: CATALOG PAGE | E-FLYER

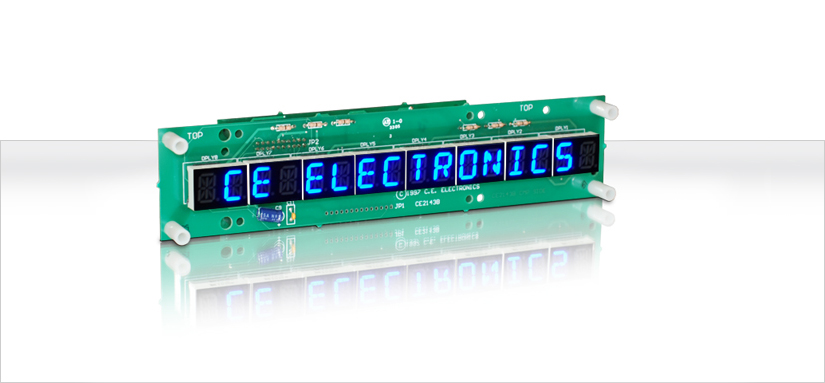

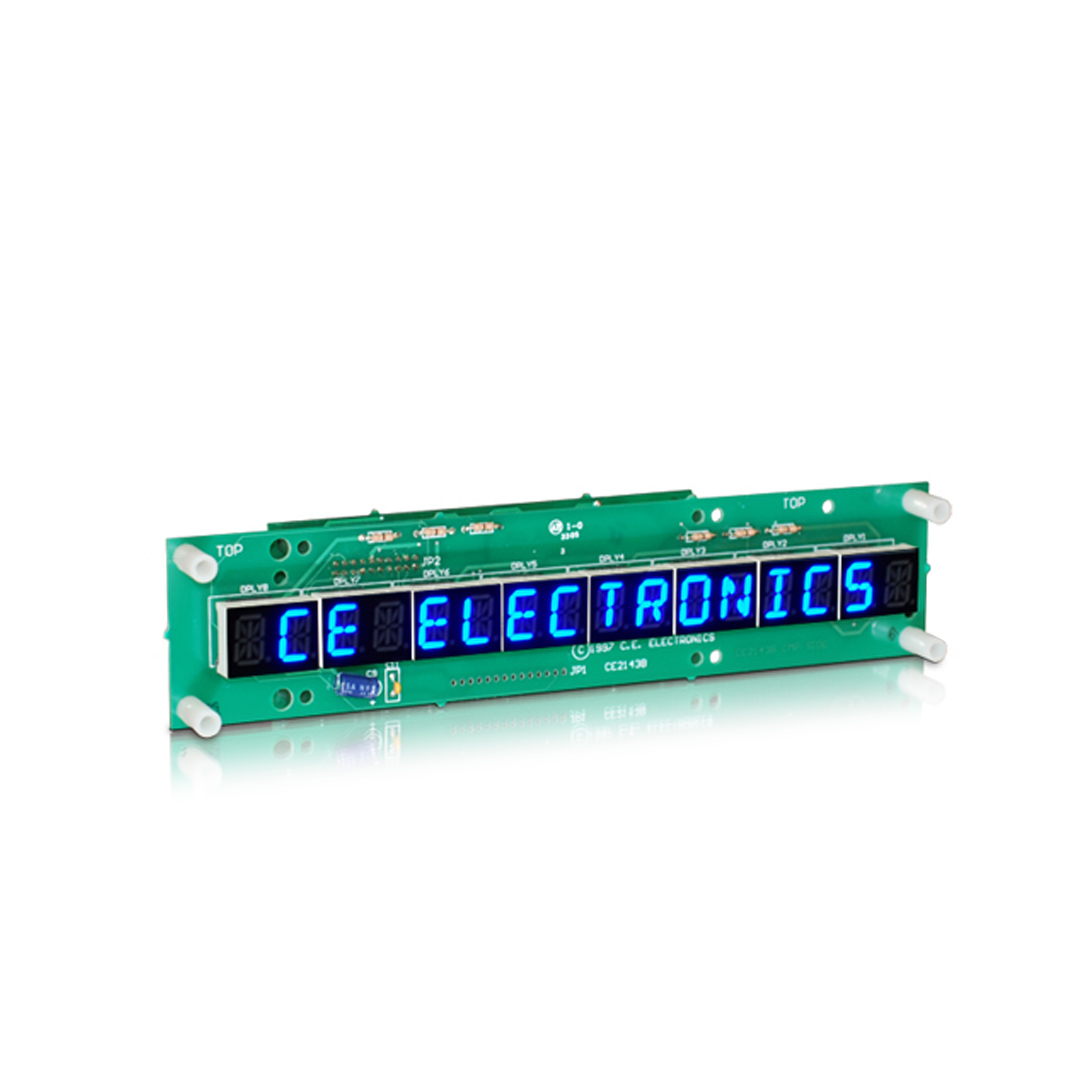

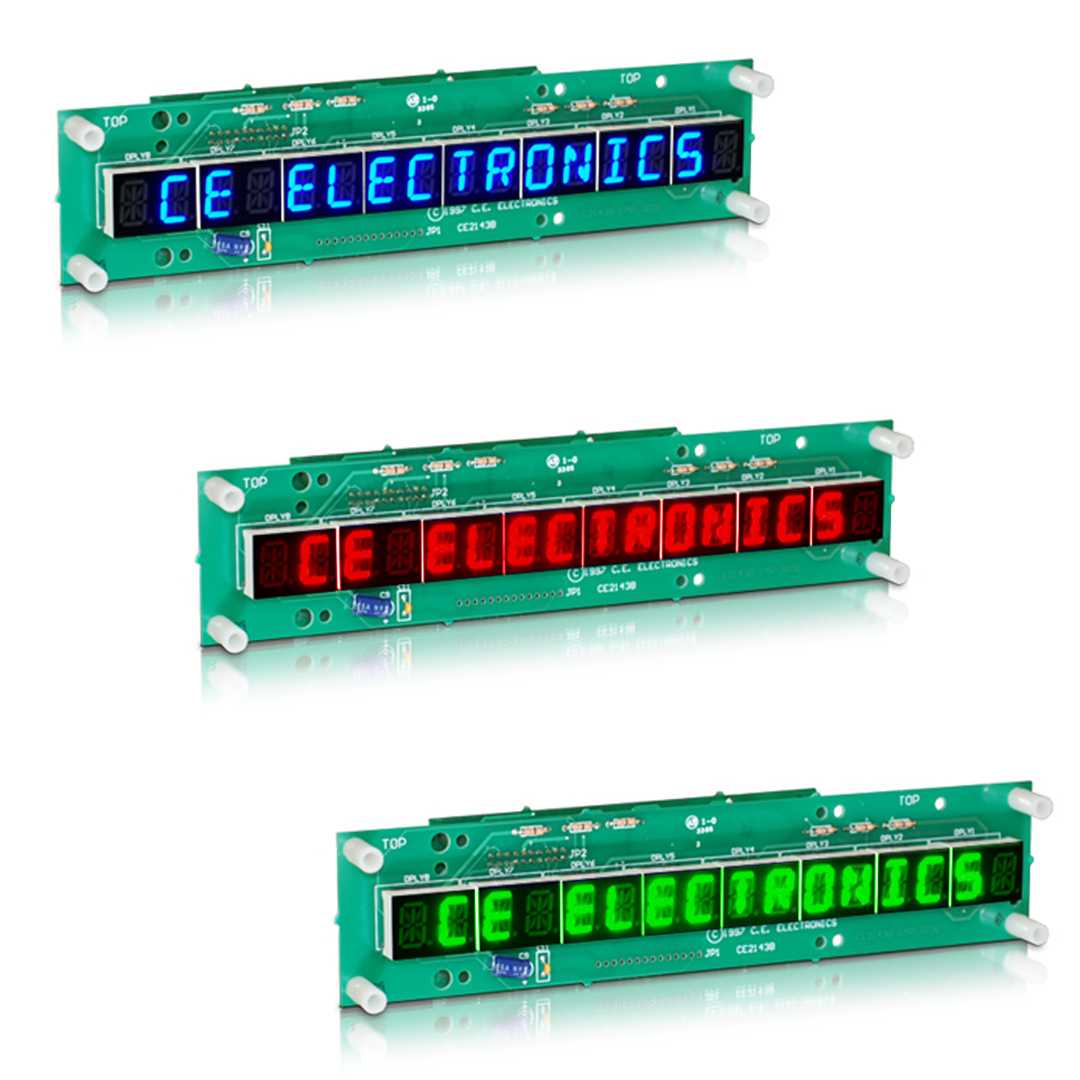

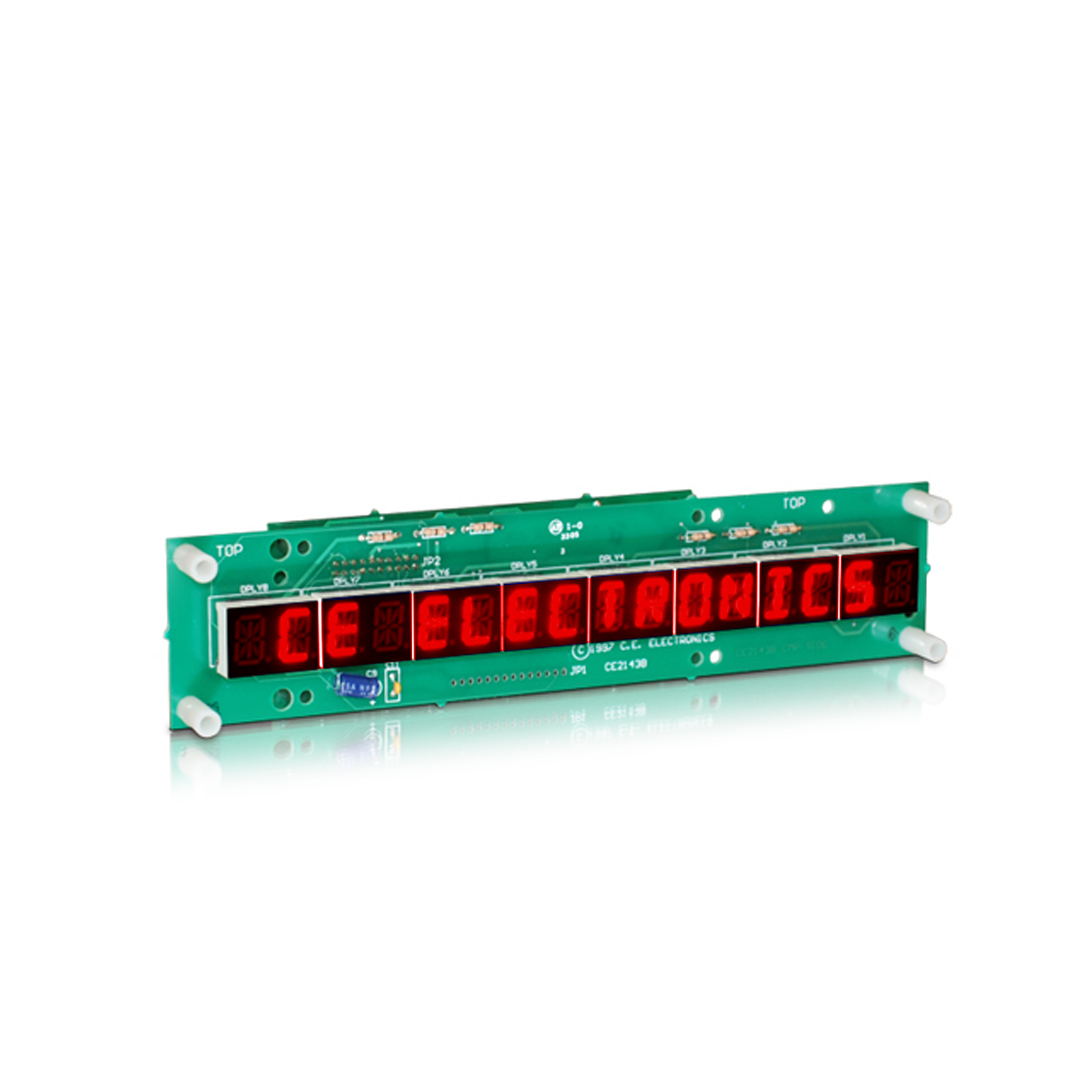

SCROLLING MESSAGE DISPLAY

A versatile scrolling message displays any alphanumeric characters within a .5-inch LED 16-digit screen. Various messages can be selected via binary inputs or through C.E.’s Micro Comm 3 wire network. When used with MTIME2-X the time, date and temperature can be displayed as part of a message or it can be shown in a static format. The display is capable of 63 different messages (119 characters per message max). The display is capable of continuous scrolling or can be programmed to scroll in stop and then flash.

Features:

  •  63 messages
  •  Scrolling in/Scroll out
  •  Continuous scroll
  •  Adjustable flashing
  •  Adjustable blanking
  •  Binary inputs
  •  10-150VAC/DC inputs

Dimensions:

  •  9.00″W x 2.00″H x 2.20″D

Note:

1. If a special voltage is required, please consult the factory.
