MR103-X – MR107-X | DOT MATRIX LED DIGITAL INDICATOR

SKU: MR103-X - MR107-X Category:

VIEW: CATALOG PAGE | WIRING DIGRAM: MR103-X-MR107-X



DOT MATRIX LED DIGITAL INDICATOR

For floor position display. Any alphanumeric or custom character can be displayed.





Typical Applications:

  • Direct replacement for Westinghouse Syncrodial units

Features:

  •  Low cost design
  •  Latched input
  •  Scrolling & roll over
  •  Hall lantern option
  •  Passing shime output
  •  Self Testing
  •  Message inputs
  •  Error detection and correction feature

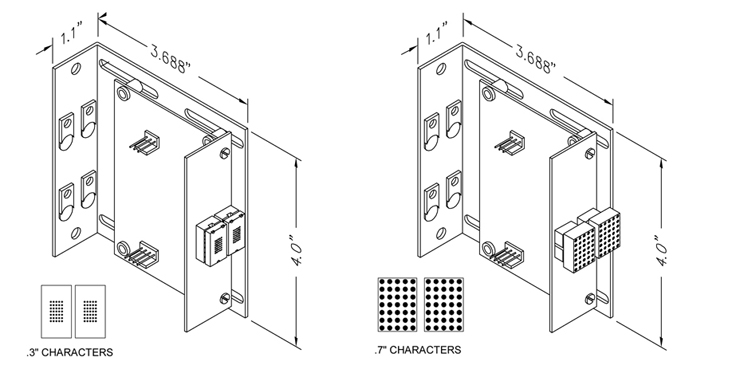

Dimensions:

  •  MR103-X | 1.1″W x 4.0″H x 3.688″D | .3″ Characters
  •  MR107-X | 1.1″W x 4.0″H x 3.688″D | .7 Characters



Notes:

1. This is not a stand alone unit. Must be used in conjunction with a MCCU controller.

2. Only three hoist wires required from “CCU” to “RDI”.

3. Pluggable terminal block with 8′ cable supplied.
