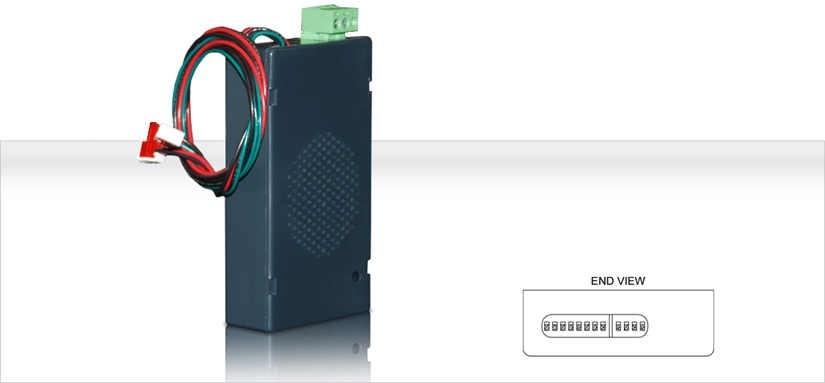

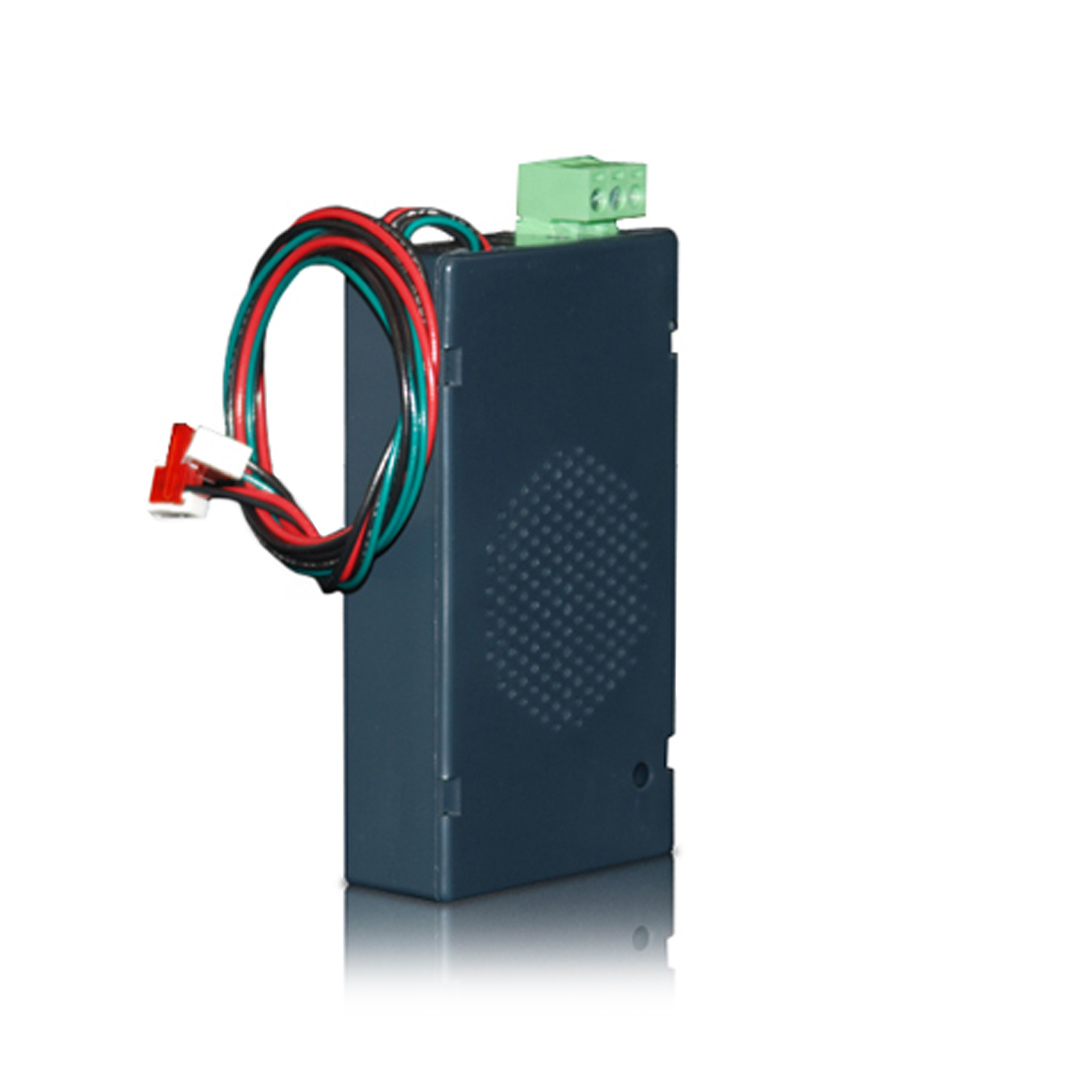

M3491-X | ARRIVAL GONG / LANTERN DRIVER
Documents:
Catalog Page
Wiring Diagram
ARRIVAL GONG / LANTERN DRIVER
This unit is designed to sound the arrival gong from the MICRO COMM 3 wire network. Solid State Output to drive LED or lamps at a maximum of 250mA per output.
Typical Applications:
- For car or hall audio indications
Features:
- Adjustable volume
- Arrival chime
- Compact Design
- Serial Hookup
- Conforms to ADAAG 4.10.4
- Solid State output
- Maximum 250mA per output @ 24VDC
Dimensions:
- 2.415″W x 4.625″H x 0.910″D
