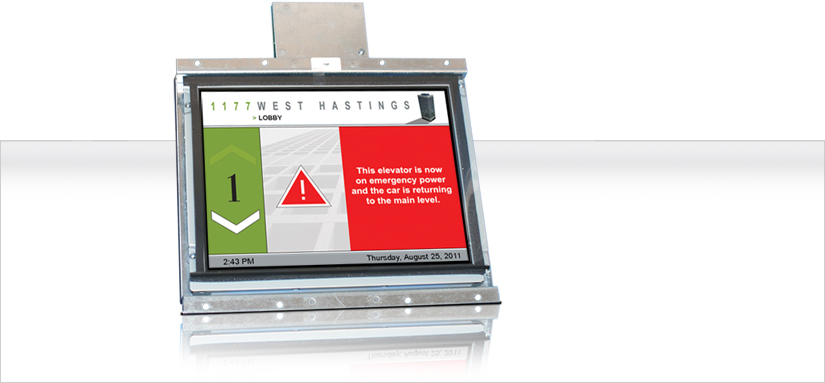

EX104-DX | 10.4″ ELITE PI

10.4″ ELITE PI

The MICRO COMM Elite PI is the most flexible position indicator available. With the Elite PI Designer software, you can customize your own position indicator by selecting background colors and textures, fonts, and arrow styles. This system is so flexible you can even determine where the display elements appear on the screen. In addition to design flexibility, the MICRO COMM Elite PI can display floor, priority, and time-based messages.

Typical Applications:

•  Car-op panel
•  Transom car
•  Lobby

Features:

•  Passing Chime
•  Live Video Option
•  Self-testing
•  Low profile
•  Elite PI Designer software
•  Elite PI Transfer software
•  Multi-car capabilities for hallway use
•  Video Driver Board can be mounted above or below the display
•  CPU Box can be up to 25 feet from the screen
•  One remote CPU Box can support 2 screens

Dimensions:

•  9.90″W x 8.75″H x 1.375″D

This must be used in conjunction with remote cpu ER104-XXX
Recommended clearance for display with lens is 1.50 inch.
