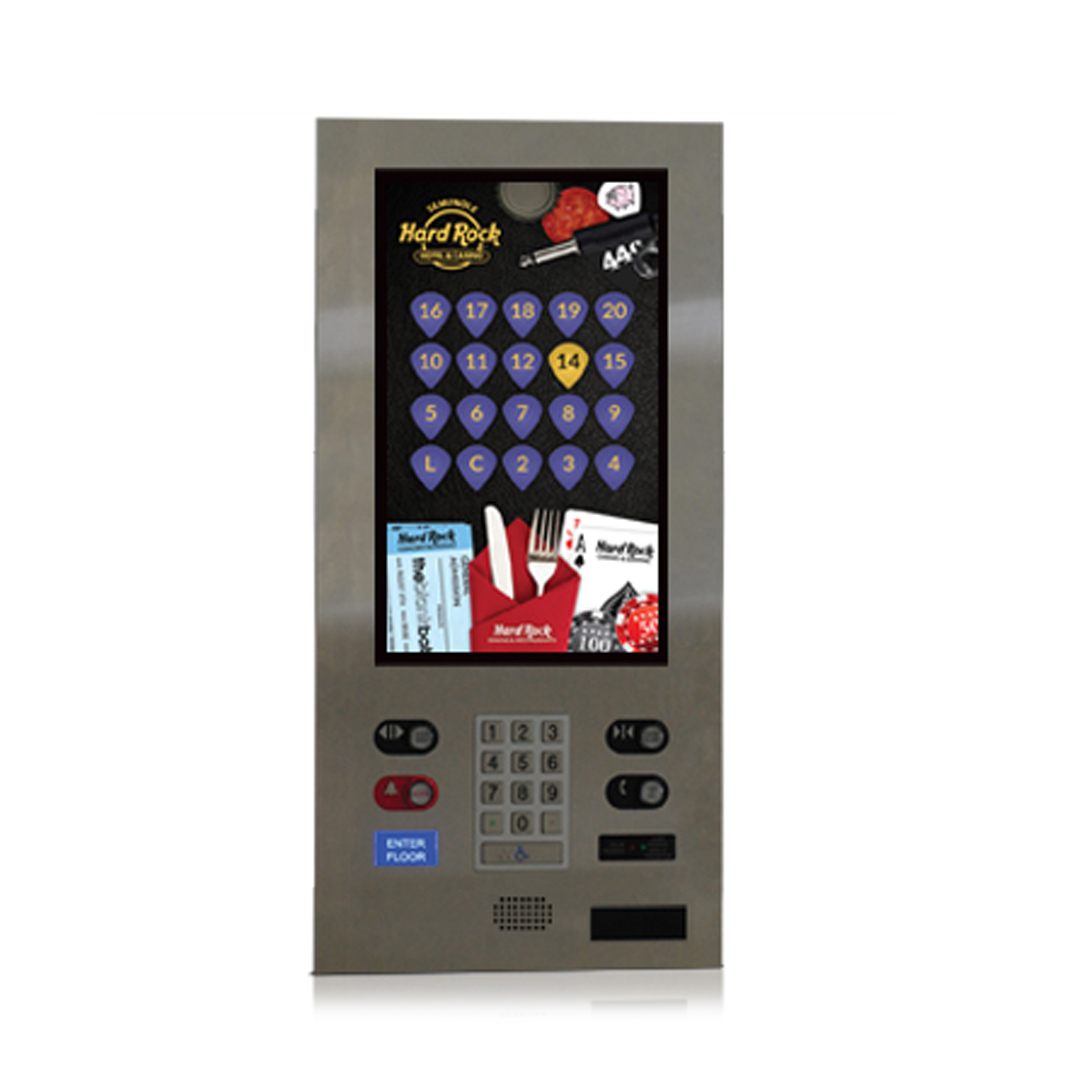

ET240-KPX | 24″ ELITE TOUCH ® | PCAP

SKU: ET240-KPX Category:

VIEW: CATALOG PAGE | PANEL PREP: PP240-KPX
DETAILED DIMENSIONS: ET240-KPX-DETAIL1 | E-FLYER L PREP
CONTROLLER INTERFACE: CIB-DXXRX | KEYPAD: ETKYPD-XXX

24″ ELITE TOUCH ® SERIES

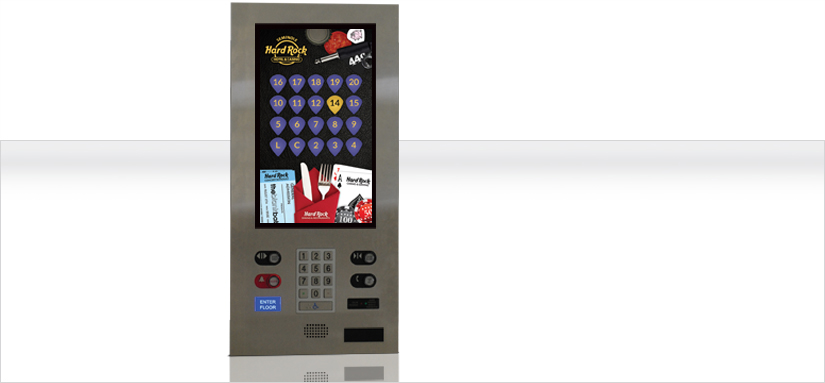

The ET240 touchscreens take the place of the traditional car panel pushbuttons. The graphics on the touchscreen represent destinations served by the elevator. The passengers choose their floor by touching the appropriate area on the screen.

PCAP SCREEN: PROJECT CAPACITIVE TOUCH

This uses the conductive touch of a human finger for the input.
Flush Screen



Typical Applications:

  •  Car Operating Panel



Features:

  •  Broad viewing angle of 170 degrees (85 x 85 x 85 x 85)
  •  24 Bit color choices (more than 16 million)
  •  Can be paired with EN81 keypad with LCD readout
  •  USB updatable
  •  ASME17.12007, CSA B44-07, ANSI A1171.1-2003
  •  UL-60950, CSA22.2 # 60950 ball drop test

PCAP:

  •  PROJECTED CAPACITANCE SCREENS
  •  Conductive touch by human finger for input
  •  Flush Screen

Dimensions:

  •  14″W x 24.25″H x 2.5″D
