EH220-XXXXX | 50mm Dot Matrix [2″] CHARACTER

SKU: EH220-XXXXX Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM: DISCRETE | MICRO COMM | E-FLYER

DOT MATRIX

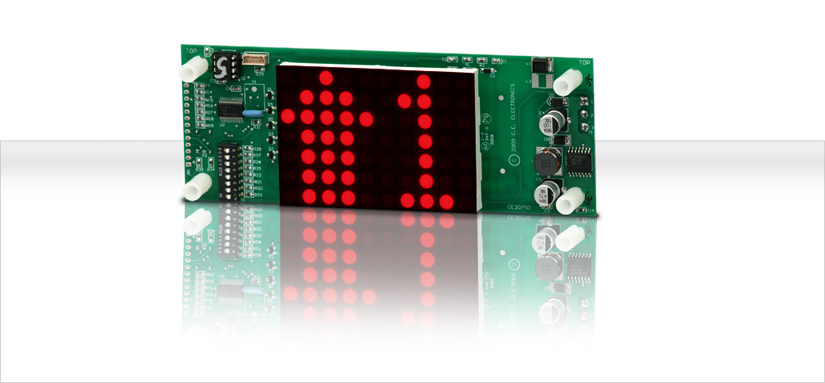

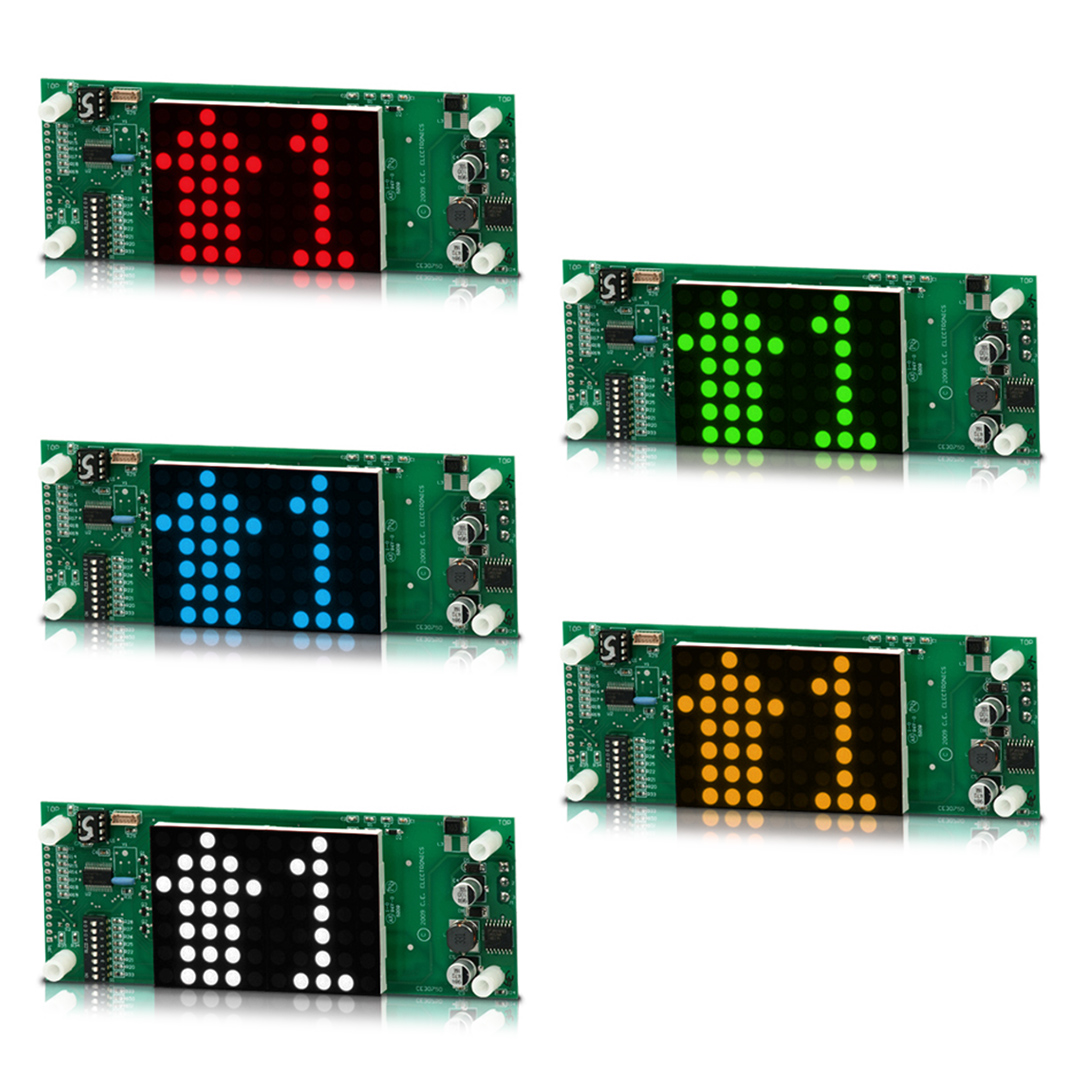

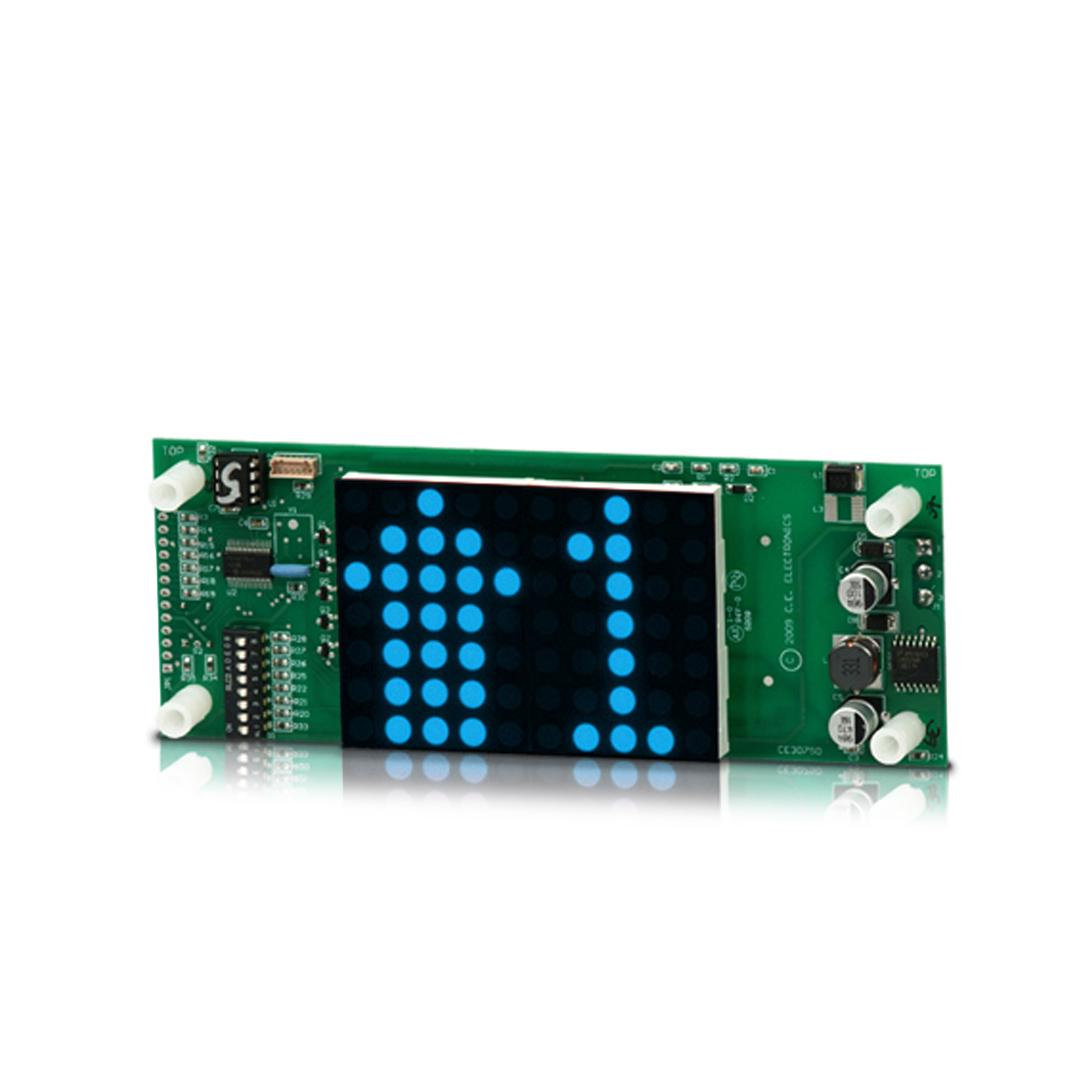

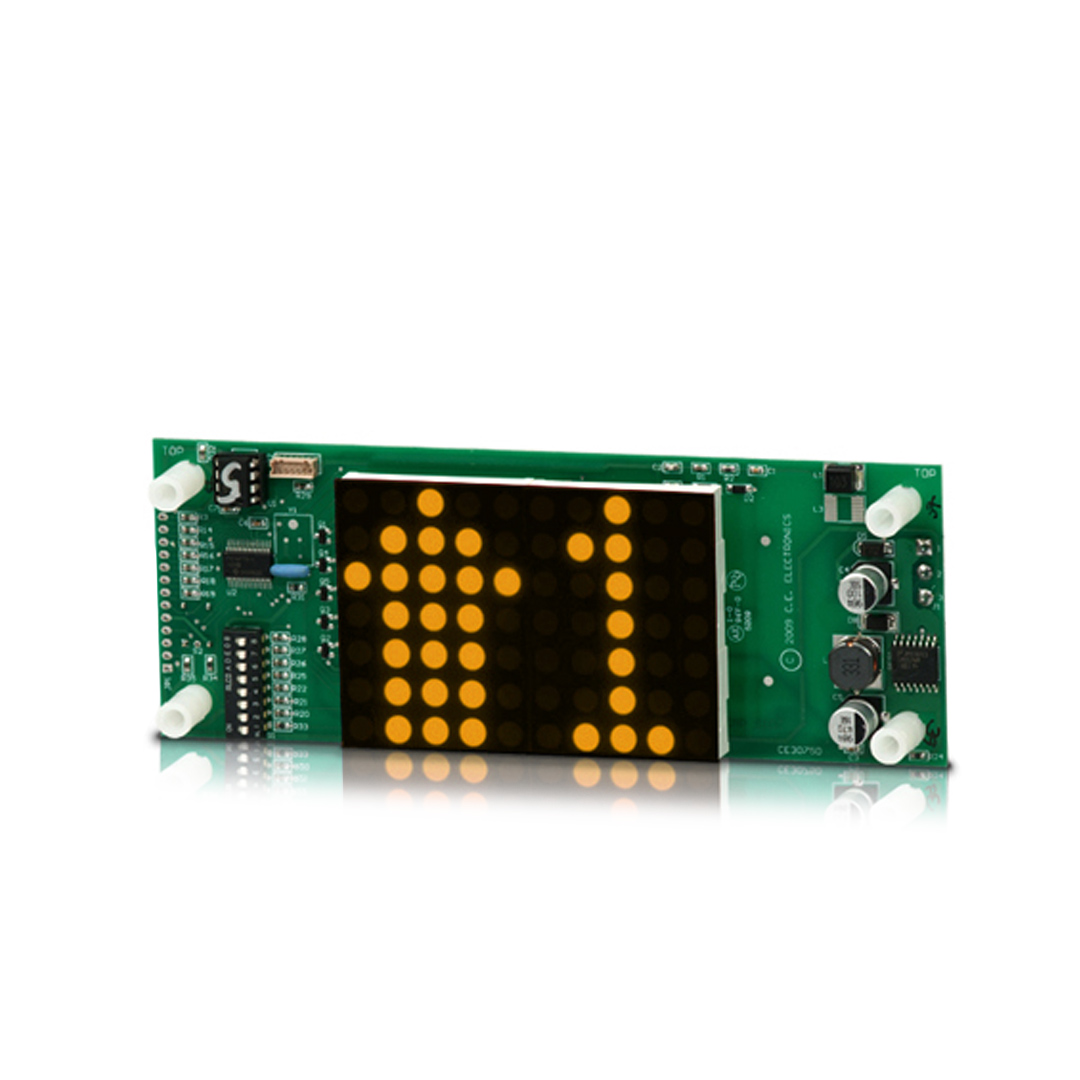

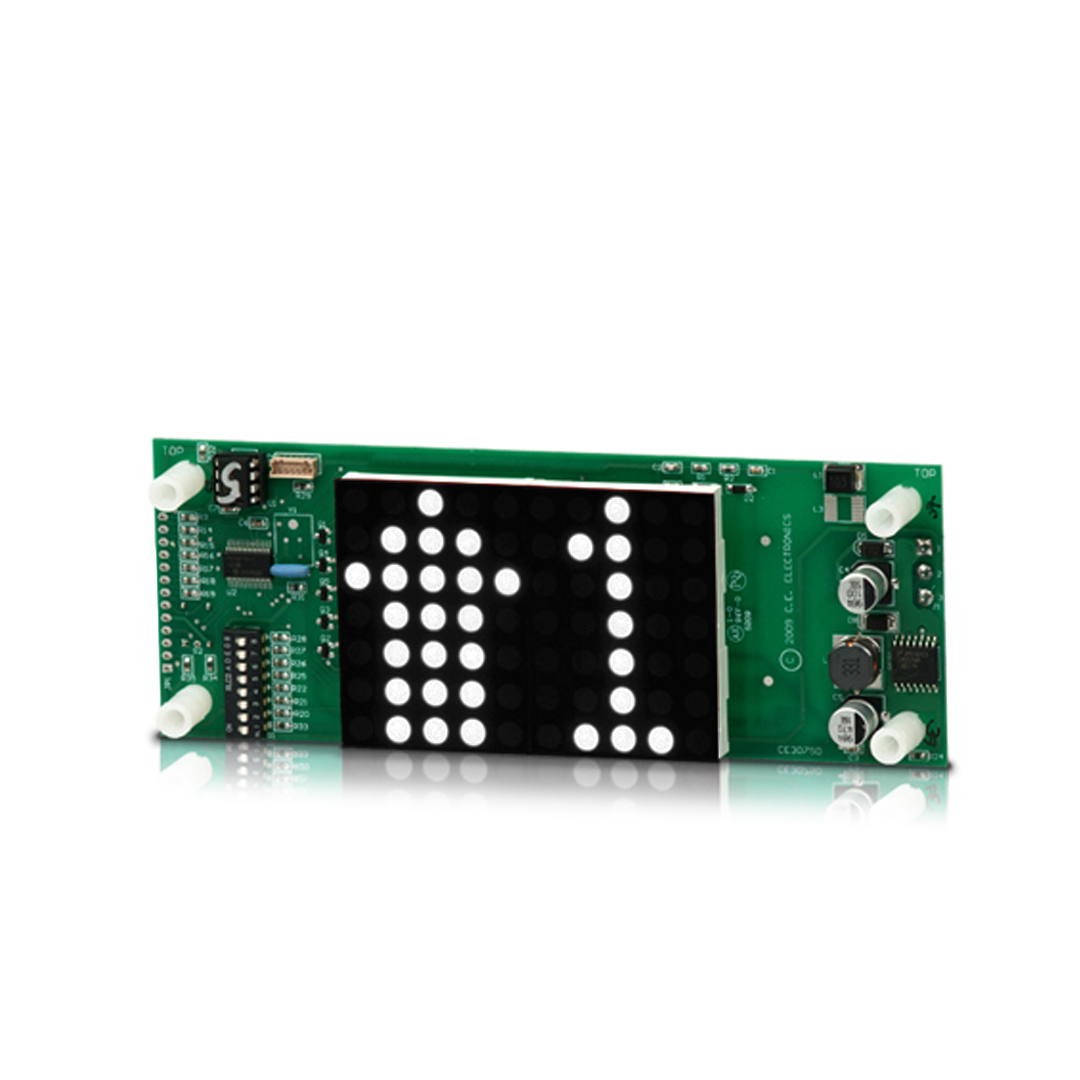

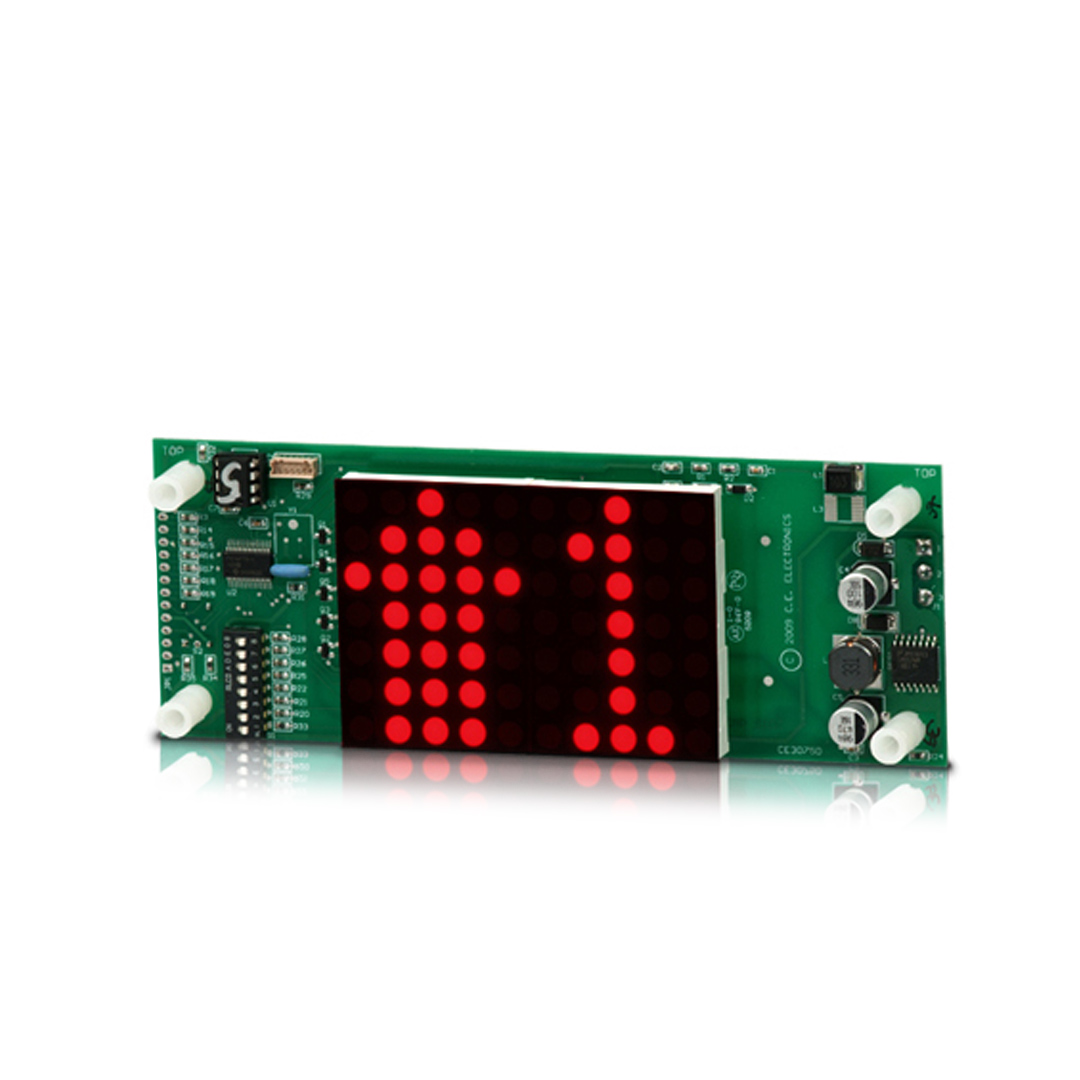

Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any aphanumeric or custom character can be displayed in either single digit with arrow or double digit floor designations.

Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low-cost design
  •  Self-contained unit
  •  Latched input
  •  Scrolling & rollover
  •  Hall lantern option
  •  Passing chime output
  •  Self-testing
  •  Message inputs
  •  Error detection and correction feature



Dimensions:

  •  160mm W x 60mm H x 44.5mm  |  6.299″W x 2.362″H x 1.75″D



Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM Interface.
