VS3541-XXXXX | DIGITIZED FLOOR ANNUNCIATOR

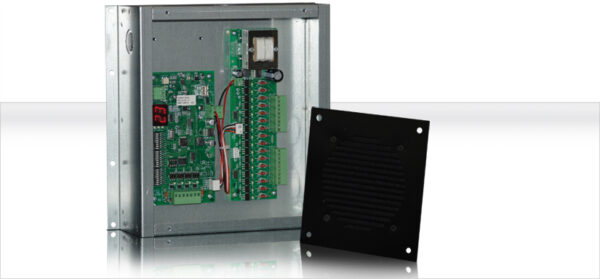

DIGITIZED FLOOR ANNUNCIATOR

The basic system includes up to eighty different messages, with a total message time of 8 minutes. The system can be used as a stand alone or in conjunction with independent position indicators. 16 discrete inputs can be combined to announce messages or floors. If additional floors or messages are needed, consult factory for additional options.

Features:

•  Custom Vocabulary
•  Up to 8 minutes of speech
•  Capable of 80 messages
•  LED input indicators
•  Human voice
•  Male or female voices
•  6-150v AC/DC inputs
•  Full wave bridge inputs
•  Stand alone or add on to existing P.I.’s
•  Includes sealed mid-range speaker
•  Conforms to ADAAG 4.10.13
•  UL Listed

Dimensions:

•  11.000″W x 11.000″H x 3.375″D | SPEAKER: 5.88″W x 5.88″H x 2.25″D

Notes:

1. This digitized voice annunciator (VS3541-XXXXX) MUST be mounted within 20′ of the speaker or damage will result! C.E. #40040001 matching transformers may be purchased for greater distance – consult the factory.

2. In some applications the MAMMX-X may be needed.

3. If a special voltage is required, please consult factory.

4. *May need additional decoder boards, please consult factory.
