SMCDU-XXX | CONTROL DRIVER BOARD

SKU: SMCDU-XXX Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM

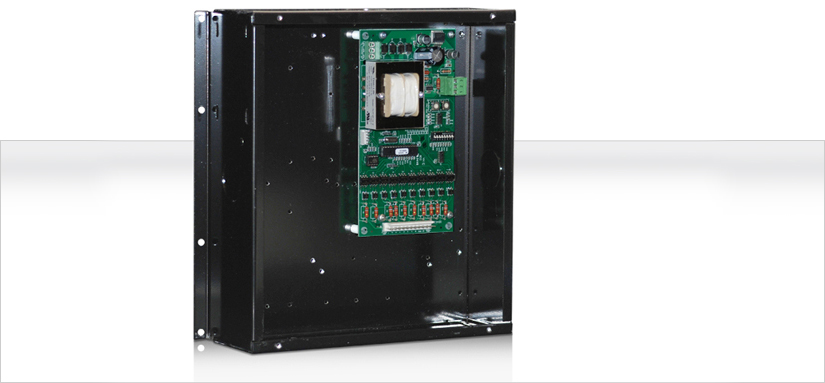

CONTROL DRIVER BOARD

This unit was designed to be a compact display driver board. The board is capable of driving 4 displays remote from itself. Any MICRO COMM series display can be utilized with this unit.



Features:

  •  Latched inputs
  •  Cross wire protected
  •  Self testing
  •  Alternate message
  •  Passing chime output
  •  Remote display
  •  Self-contained
  •  Error detection and correction feature
  •  UL listed
  •  Fullwave Bridge AC/DC inputs
  •  8 Inputs & Up/Down



Dimensions:

  •  7.00″W x 3.75″H x 2.50″D   |   8″ cable included

Notes:

1. Derate 50% on VF display.
2. *May need additional decoder card.
3. If a special voltage is required, please consult factory.
