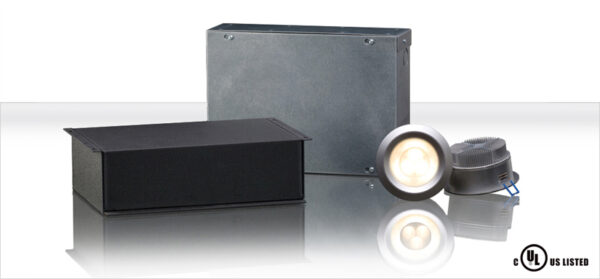

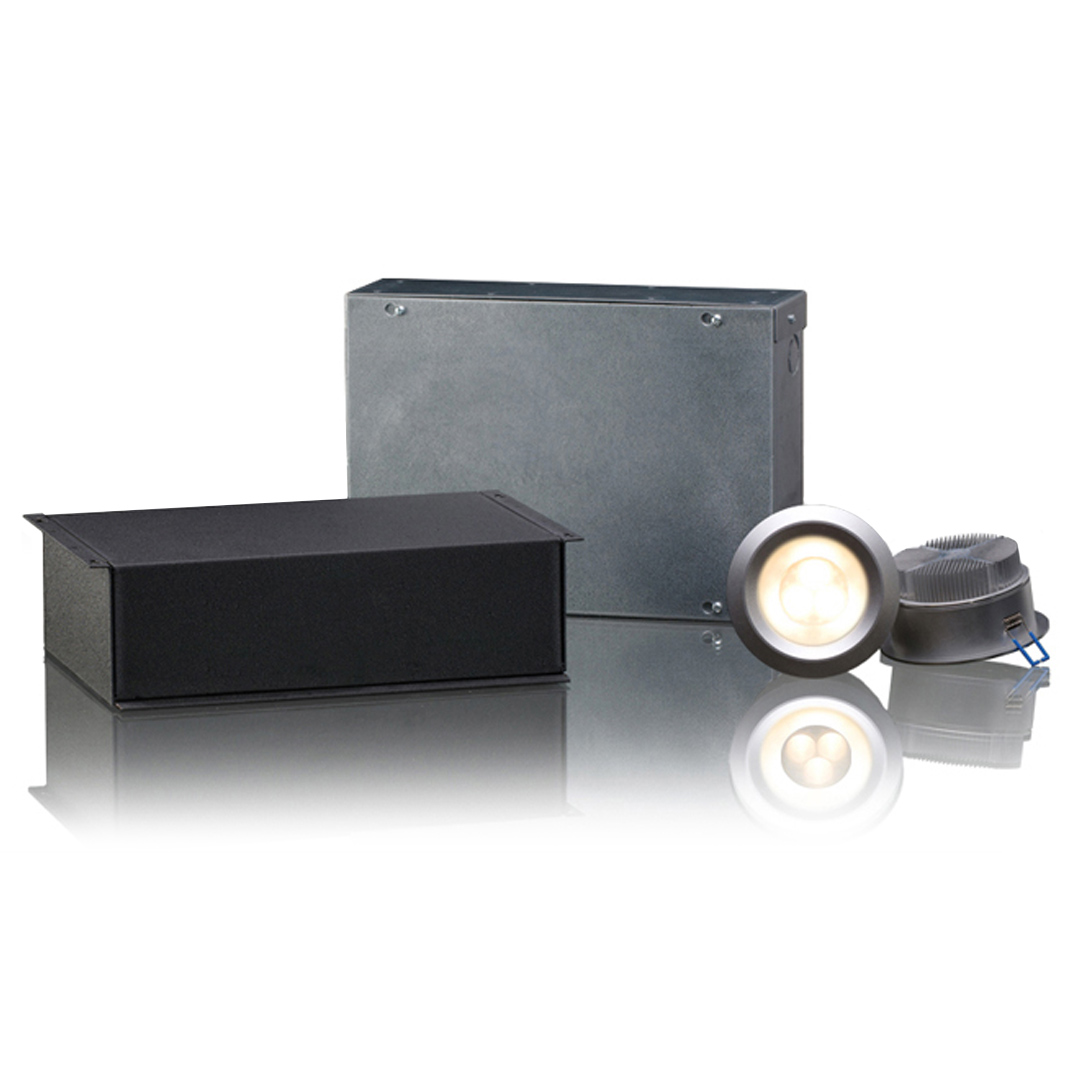

ELEVATOR CAB LIGHTING
The SKCAB battery-backed cab lighting system was designed to provide an efficient LED-based lighting solution for elevator cabs. In the event of a power outage, it also incorporates an emergency battery backup system to provide power for lights and a cab-operated alarm.
Features:
- Dimming input with on/off and 8 brightness settings.
- External light switch input.
- 30-month battery life indication.
- 3W and 9W models available.
- When activated in Emergency power condition 2 of the LED Lamps are turned on using CE’s Intelli-Socket design.
- This Intelli-Socket design monitors all circuits for loads and keeps two LEDs on while activated meeting the ASME A17 code.
- Incorporates intelligent load software.
- Options for: 6V, 12V, and 24V alarm drivers.
- Optional: Sonalert Alarm added.
- Top of cab or ceiling-mount / clamshell options available.
- Optional: SKDIM remote dimmer feature available.
Battery backup mode provides emergency power for:
- 2 lamps powered for 4 hours. The unit will automatically power two lamps. If the designated lamp socket is empty or a lamp burns out, a new lamp will be turned on.
- 1 bell powered for 1 hour. 80-90 DBA @ 3 meters.
Dimensions:
- Ceiling Mount (Horizontal): 13″W x 8″H x 3.625″D
- Cab Top Mount (Vertical): 14.25″W x 7.75″H x 3.875″D
