SHCDUE-XXX | CONTROL DRIVER BOARD
VIEW: CATALOG PAGE | WIRING DIAGRAMS: SHCDUE-01 | SHCDUE-02

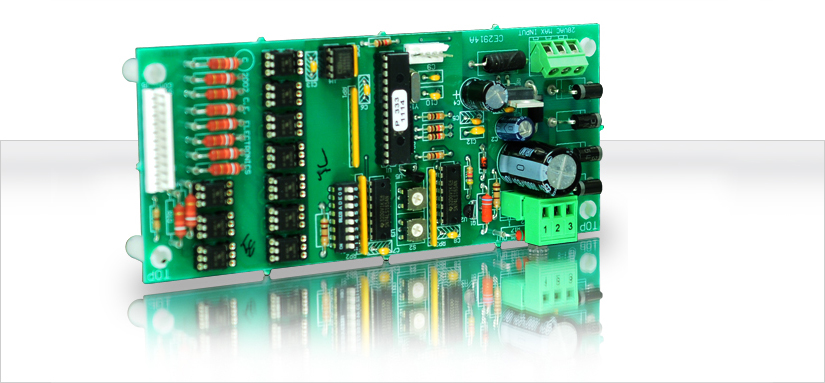

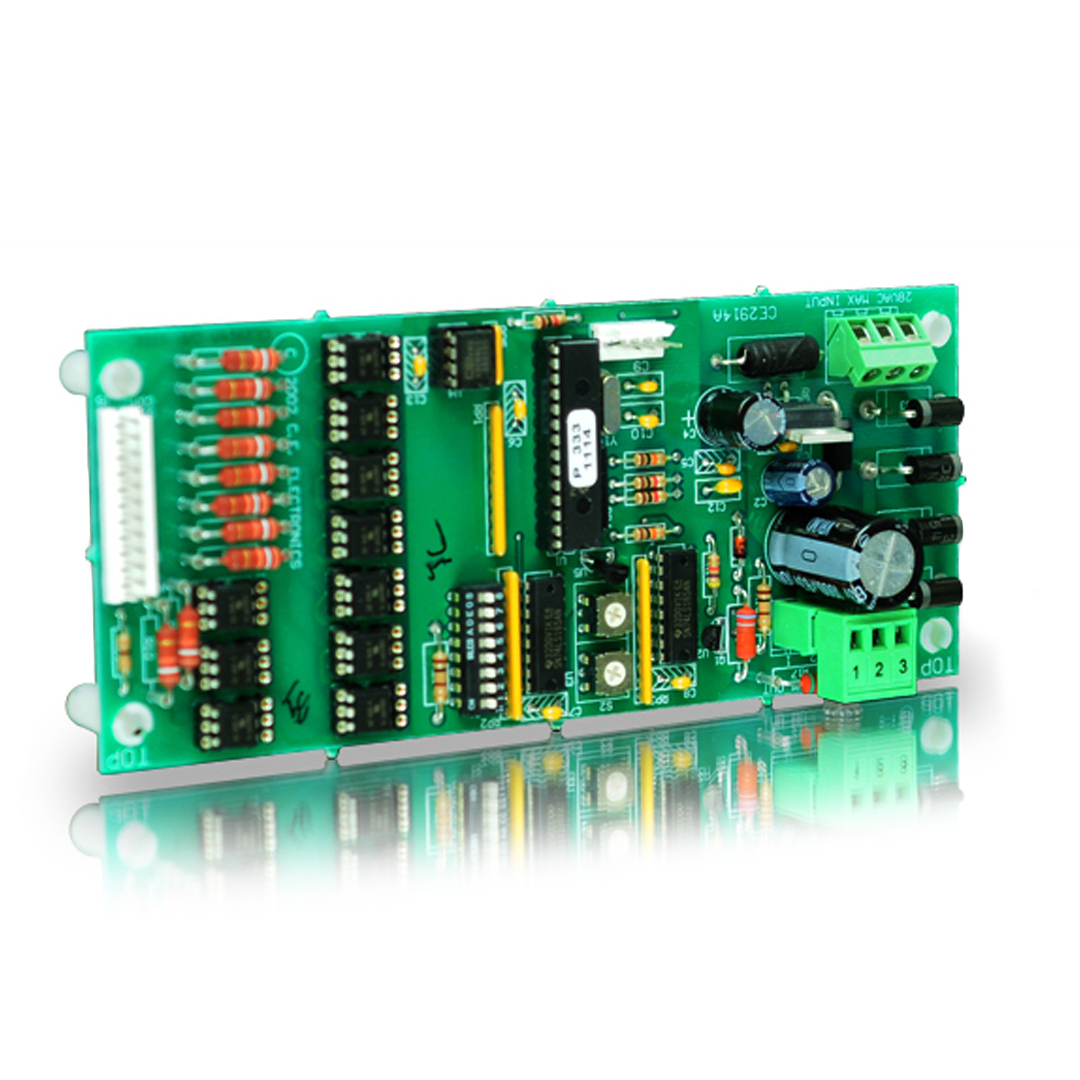

CONTROL DRIVER BOARD
This unit was designed to be a compact low voltage display driver board. The board is capable of driving up to 30 displays remote from itself. The number of displays driven is subject to the power supply provided. Any MICRO COMM series can be utilized with this unit.
Features:
- Latched inputs
- Cross wire protected
- Self testing
- Alternate message
- Passing chime output
- Remote Display
- Self-contained
- 24 volt power supply
- Error detection and correction feature
- 8 Inputs & Up/Down
- Dimensions:
6.500″W x 2.750″H x 1.25″D
Notes:
1. *May need additional decoder card.
2. If a special voltage is required, please consult factory.
