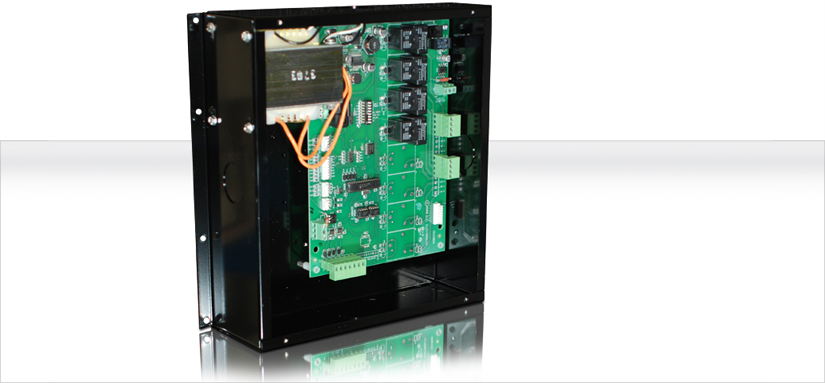

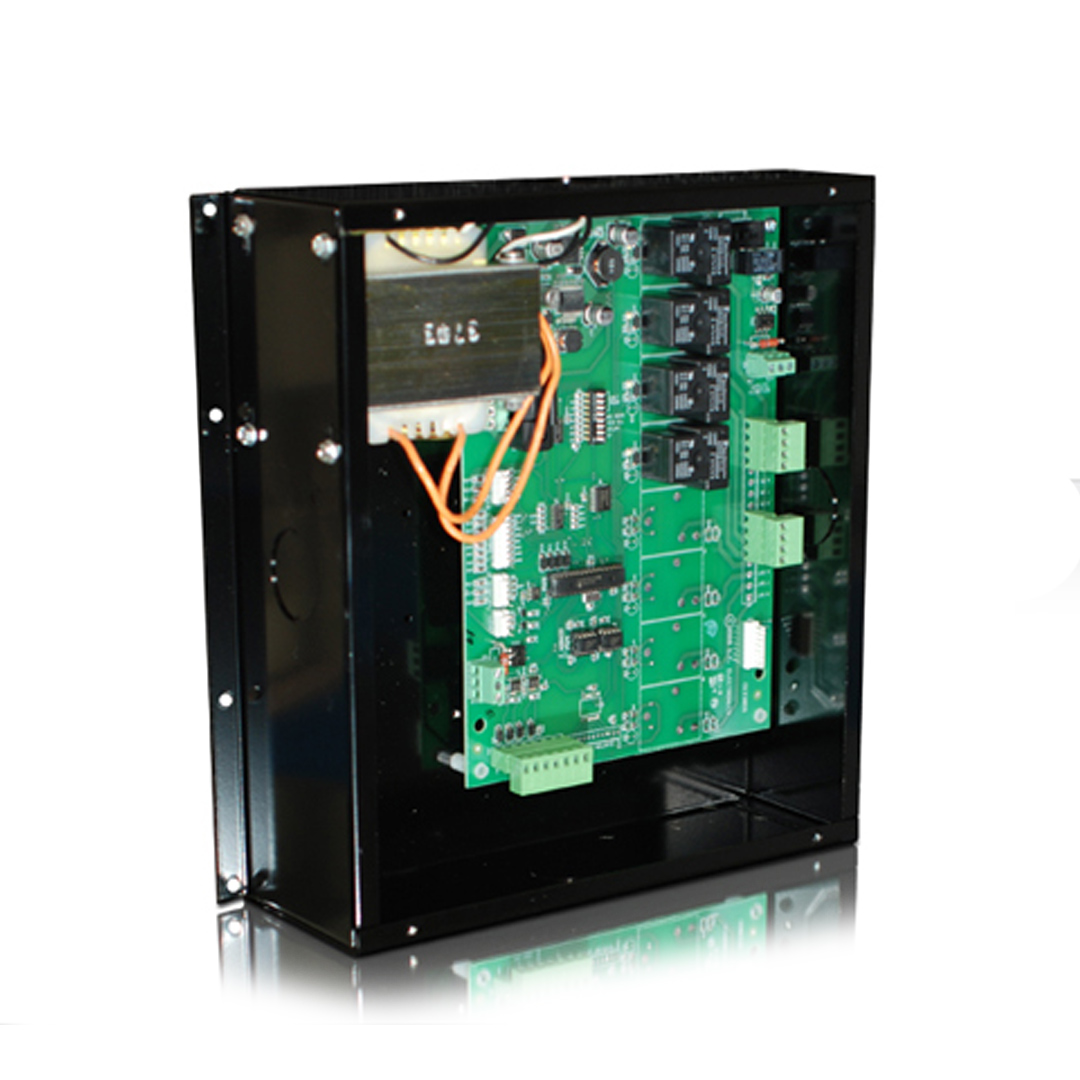

SEC04-XXXX | SECURITY BUTTON INTERFACE

SECURITY BUTTON INTERFACE

This system was design to allow up to 4 secured landing when the unit is activated. It disables the landing through a relay that is wired in circuits. Whn the appropiate code is entered, the relay closes for a predetermined (adjustable) time. It then allows the user to input the floor or floors that he has been given access. An on board override will de-activate the unit as long as an external input signal is present. An optional time module can activate or de-activate the system at programmable times during the day.

Features:

•  Up to 4 landings
•  Override input
•  Field programmable
•  Pluggable connections
•  Keypad/Card reader or elevator button access
•  Custom graphics or photo ID cards available
•  Optional programmable timer
•  Access to multiple floors, 6 digit codes with up to 600 users

Dimensions

• 11.0″W x 11.0″H x 3.375″D

Notes:
1. If a special voltage is required, please consult factory.
2. If needing over 16 landings, please consult factory.
