SCWXX-X | WESTINGHOUSE HALF WAVE SIGNAL ENCODER BD.

SKU: SCWXX-X Category:

VIEW: CATALOG PAGE |   WIRING DIAGRAM

WESTINGHOUSE HALF WAVE SIGNAL ENCODER BOARD

Converts Westinghouse half-wave logic (single wire input) to binary for easy installation for any C.E. binary display – voice annunciator, Micro Comm series ADA products, etc.

Features:

  •  Simple diode matrix design
  •  1-year factory warranty
  •  1 amp silicon decoding diodes
  •  Reliable terminal block hookup
  •  Accepts voltages of 5 to 130 volts

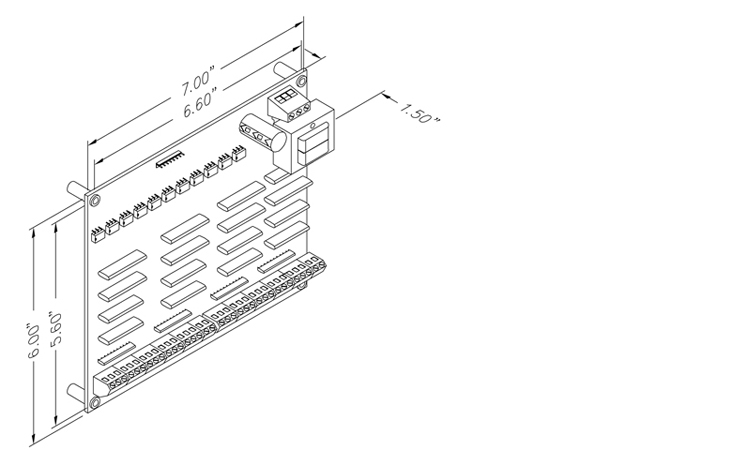

Dimensions:

  •  7.00″W x 6.00″H x 1.50″D
