SC015-X | SC110-X | DECODER CARD

SKU: SC015-X | SC110-X Category:

VIEW: CATALOG PAGE   |  WIRING DIAGRAMS: SC015-X |  SC110-X

SC015-X | DECODER CARD

15 input to binary output decoder board. The decoder card converts discrete floor inputs to binary to minimize the number of wires in the hoistway.

Features:

  •  Simple diode matrix design
  •  1-year factory warranty
  •  1 amp silicon decoding diodes
  •  Reliable terminal block hookup
  •  Accepts voltage of 5 to 400 volts

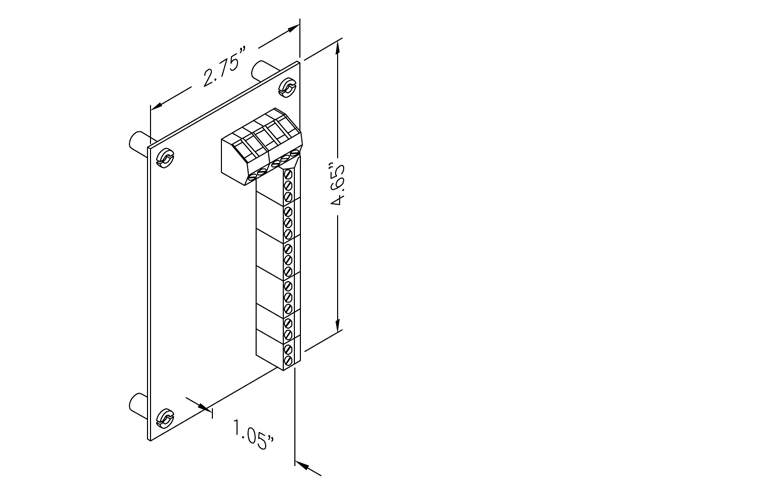

Dimensions:

  •  2.75″W x 4.65″H x 1.05″D

SC110-X | DECODER CARD

Units & tens input to binary output decoder board. The decoder card converts units & tens inputs to binary to minimize the number of wires in the hoistway.

Features:

  •  Simple diode matrix design
  •  1-year factory warranty
  •  1 amp silicon decoding diodes
  •  Reliable terminal block hookup
  •  Accepts voltage of 5 to 400 volts

Dimensions:

  •  2.75″W x 4.65″H x 1.05″D
