SA125-XXXXX | 2.5″ LED ARROW

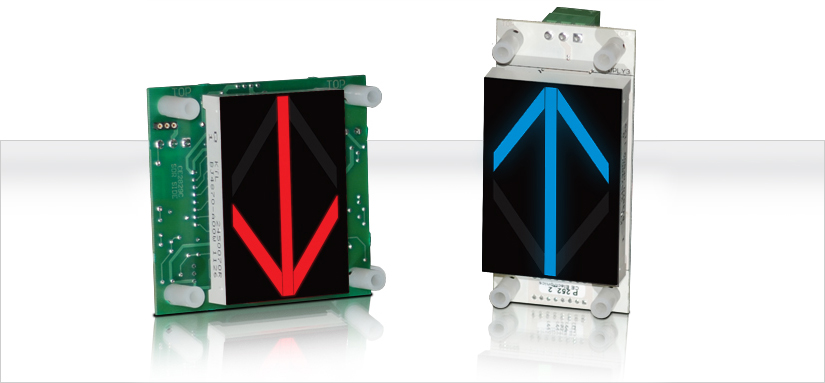

2.5″ LED ARROW

Long life, solid state arrow for lanterns, 100,000 hours rated life. Accepts signals from 6 to 120 volts, AC or DC. Comes with output terminals for electronic chimes or electromechanical gongs.

Typical Applications:

•  Car-op Panel
•  Transom-car or hall

Features:

•  Ultra-thin packaging
•  Jamb Mountable
•  Fast, 3-wire hookup
•  1-year factory warranty
•  Order in red, green, blue, and white LED displays

Dimensions

• SA125-HXXXX | 3.30″W x 3.00″H x 1.0″D/1.625″ for Micro Comm
•  SA125-VXXXX | 1.90″W x 4.0″H x 1.0″D/1.625″ for Micro Comm

Note:

1. If a special voltage is required, please consult the factory.

2. Blue & White = Not available in signal voltage A- D
