OAHF-SX | 3.0″ LED FLUSH ARROW

SKU: OAHF-SX Categories: ,

VIEW: CATALOG PAGE | WIRING DIAGRAM

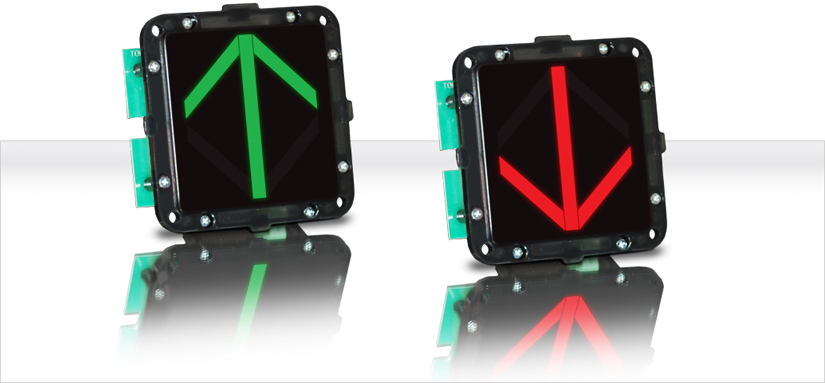

3.0″ LED FLUSH ARROW

Long life, solid state bi-color or solid blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals within the standard Otis range. The bi-color arrow is green for up and red for down or optional solid blue, or solid white.

Typical Applications:

  •  Hall and car lanterns for Otis advance series style fixtures, horizontal or vertical mounting.

Features:

  •  Otis advance series mounting
  •  Ultra-thin packaging
  •  Bi-color or Blue
  •  Red down / green up or solid blue
  •  1 year factory warranty
  •  Conforms to ADAAG 4.10.4
  •  Includes gong

Dimensions:

  •  114.3mm W x 78.74mm H x 38.1mm D | 3.0″ ARROW

Note:

Serial Flat LED Lantern available in M2 Series only
