VIDEO OVERLAY

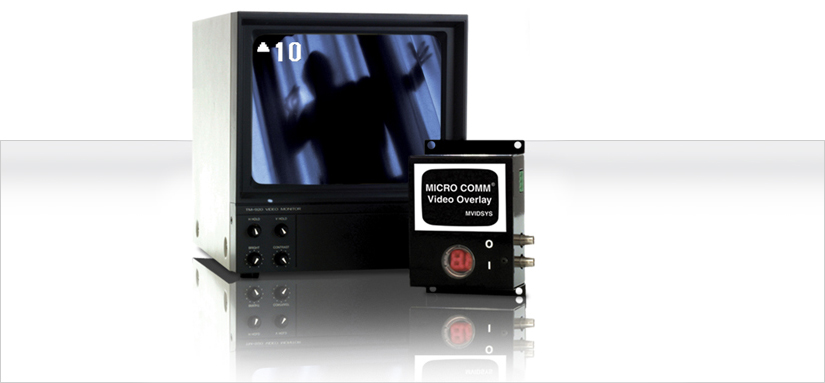

The MVIDSYS-X is an overlay system that can add floor position and direction to any NTSC or PAL-B video signal for security and liability applications. If the information is available on the link, the unit can also provide messages that are needed for elevator status. Installation of the unit utilizes existing coax wiring to the monitor but will require the 3-wire MICRO COMM link for the elevator information. This information can be gathered from an existing MICRO COMM link in the car or can be obtained by installing a driver in the machine room and bringing the data down to the car on the 3-wire serial link to display floor position and elevator status.
Features:
- Powered by MICRO COMM – MICRO COMM driver not included
- Adjustable positioning
- Message handling
- Easy installation
- NTSC compatible
- PAL-B compatible
- Other interfaces can be made available such as CAN or RSL if needed (these links are subject to approval).
Dimensions:
- 3.94″W x 2.63″H x 1.35″D
* Monitor not included
