EX104-BX2 | 10.4″ ELITE PI

SKU: EX104-BX2 Category:

VIEW: CATALOG PAGE |   PANEL PREP: PP104-4
DETAIL DIMENSION: DD104-4 |  WIRING DIAGRAM | DOWNLOAD: E-FLYER

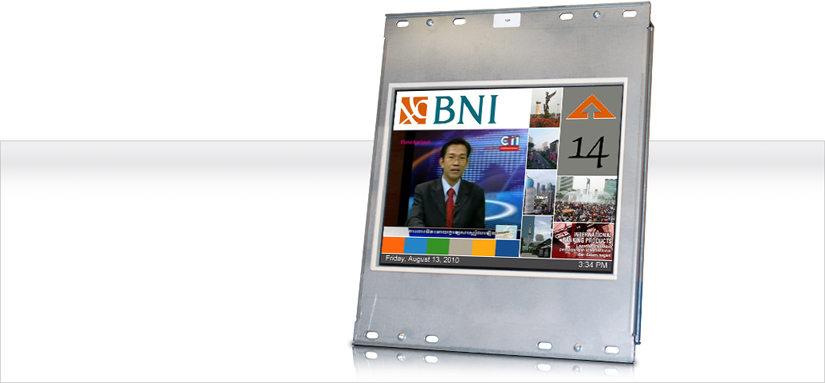

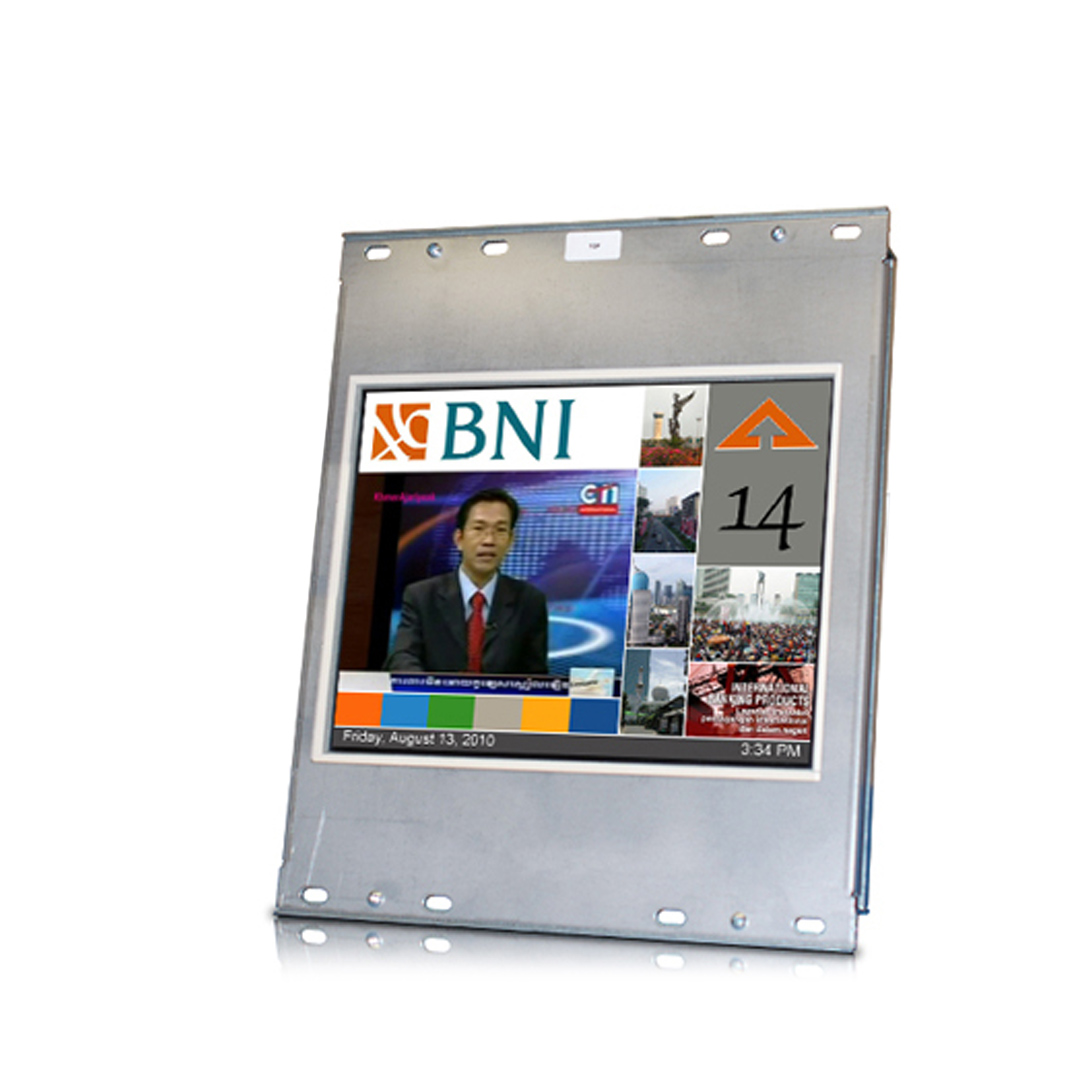

10.4″ ELITE PI

The MICRO COMM Elite PI is the most flexible position indicator available. With the Elite PI Deisgner software, you can customize your own position indicator by selecting background colors and textures, fonts, and arrow styles. This system is so flexible you can even determine where the display elements appear on the screen. In addition to design flexibilty, the MICRO COMM Elite PI can display floor, priority, and time-based messages.



Typical Applications:

  •  Car-op panel
  •  Transom car or hub

Features:

  •  Passing chime output
  •  Live video option
  •  Self Testing
  •  Low profile
  •  Elite PI Designer software
  •  Elite PI Transfer software
  •  Multi-car capabilities for hallway use
  •  MICRO COMM serial link input



Dimensions:

  •  9.900″W x 12.000″H x 2.80″D
