EV115-XXXXX | 45mm Dot Matrix [1.5″] CHARACTER

SKU: EV115-XXXXX Category:

VIEW: CATALOG PAGE |     WIRING DIAGRAM: DISCRETE | MICRO COMM

DOT MATRIX

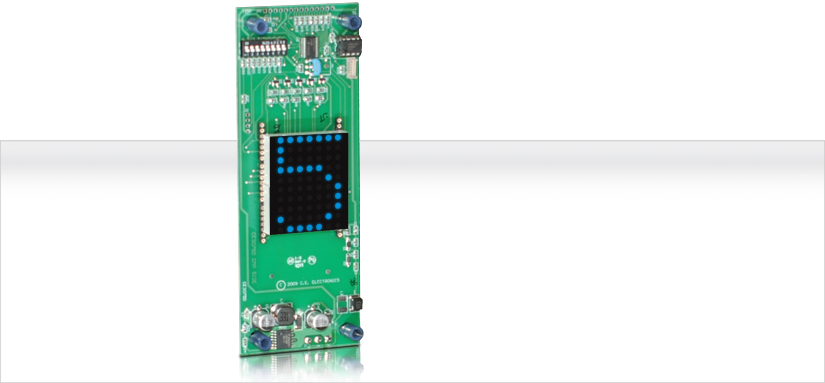

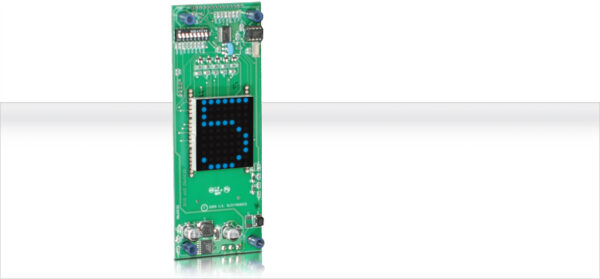

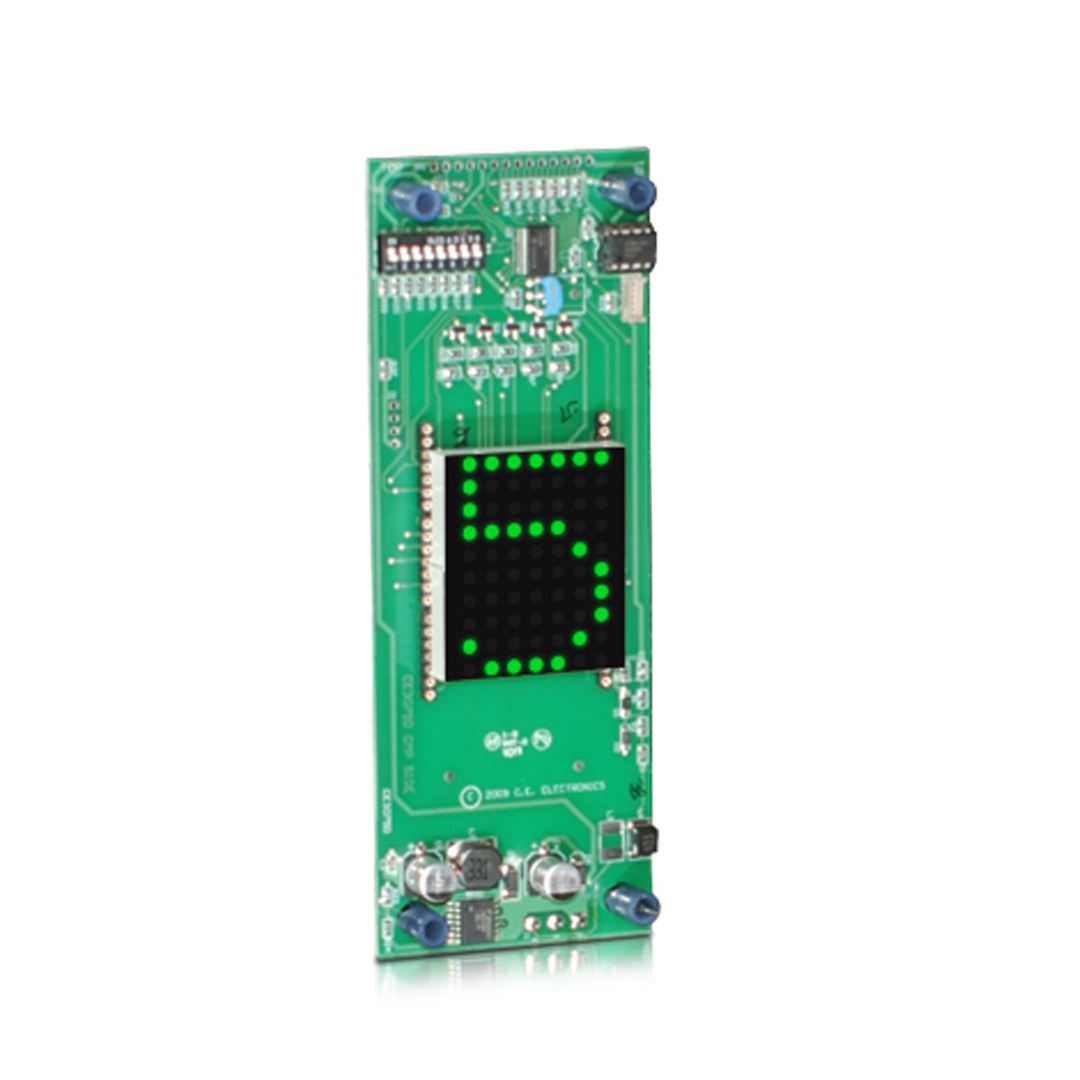

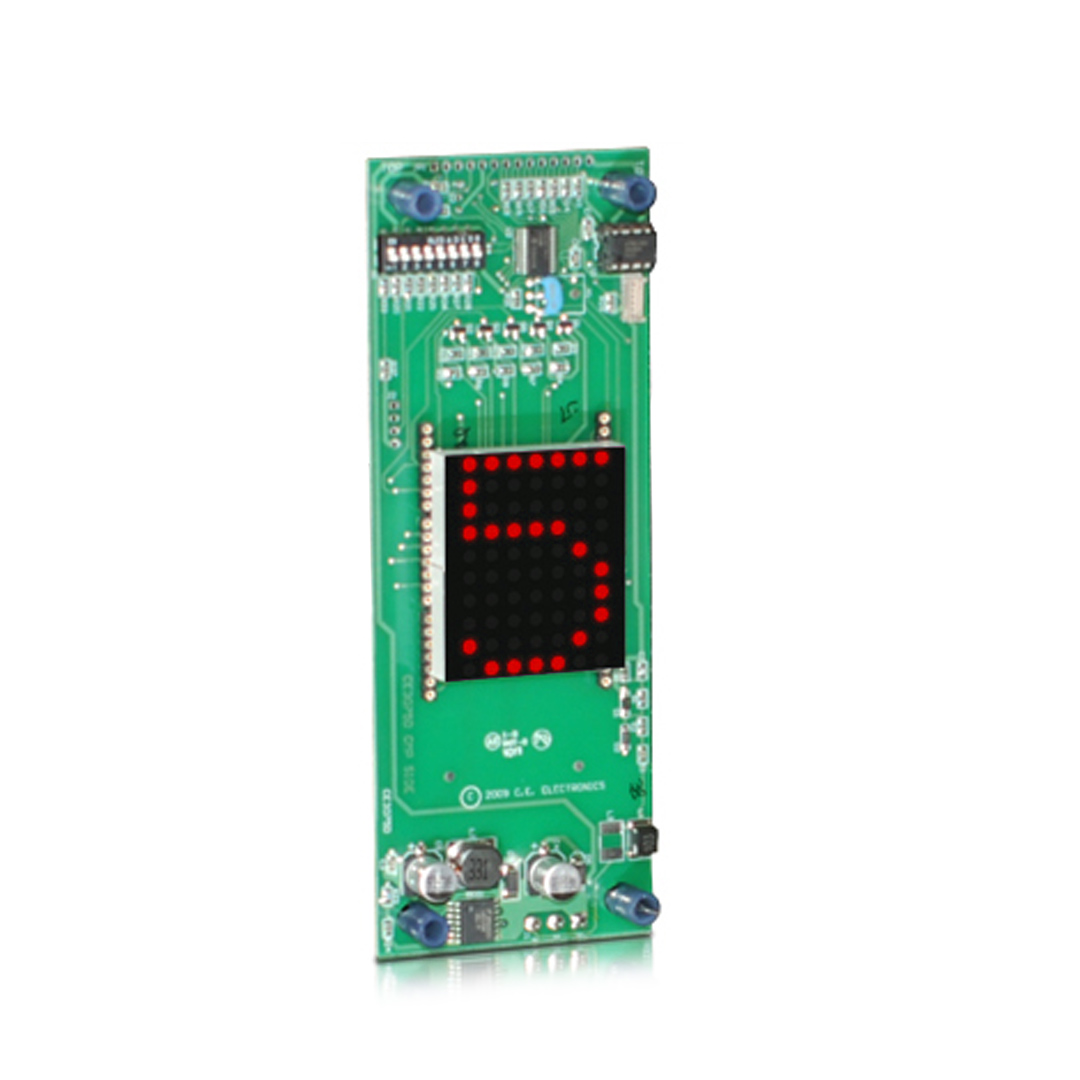

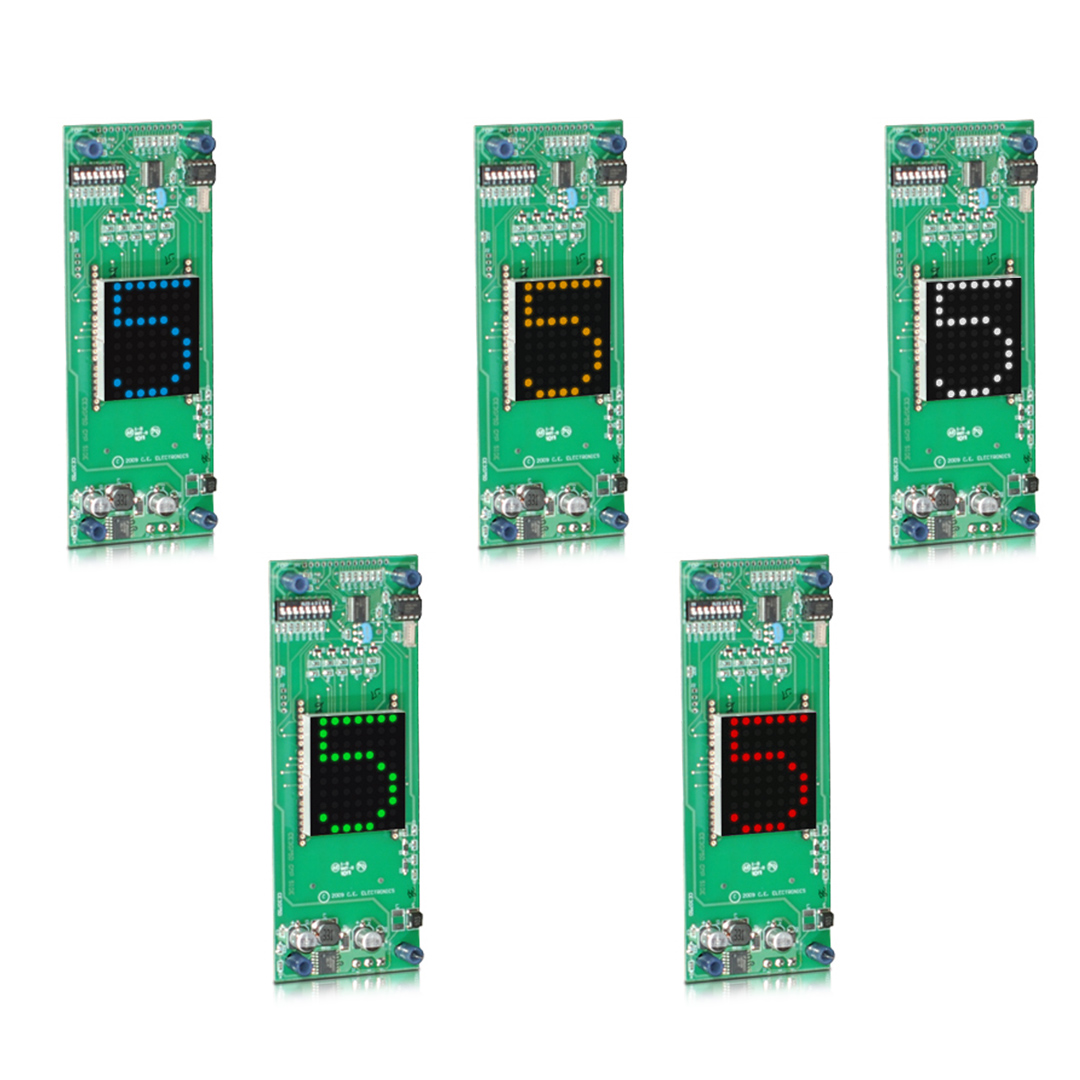

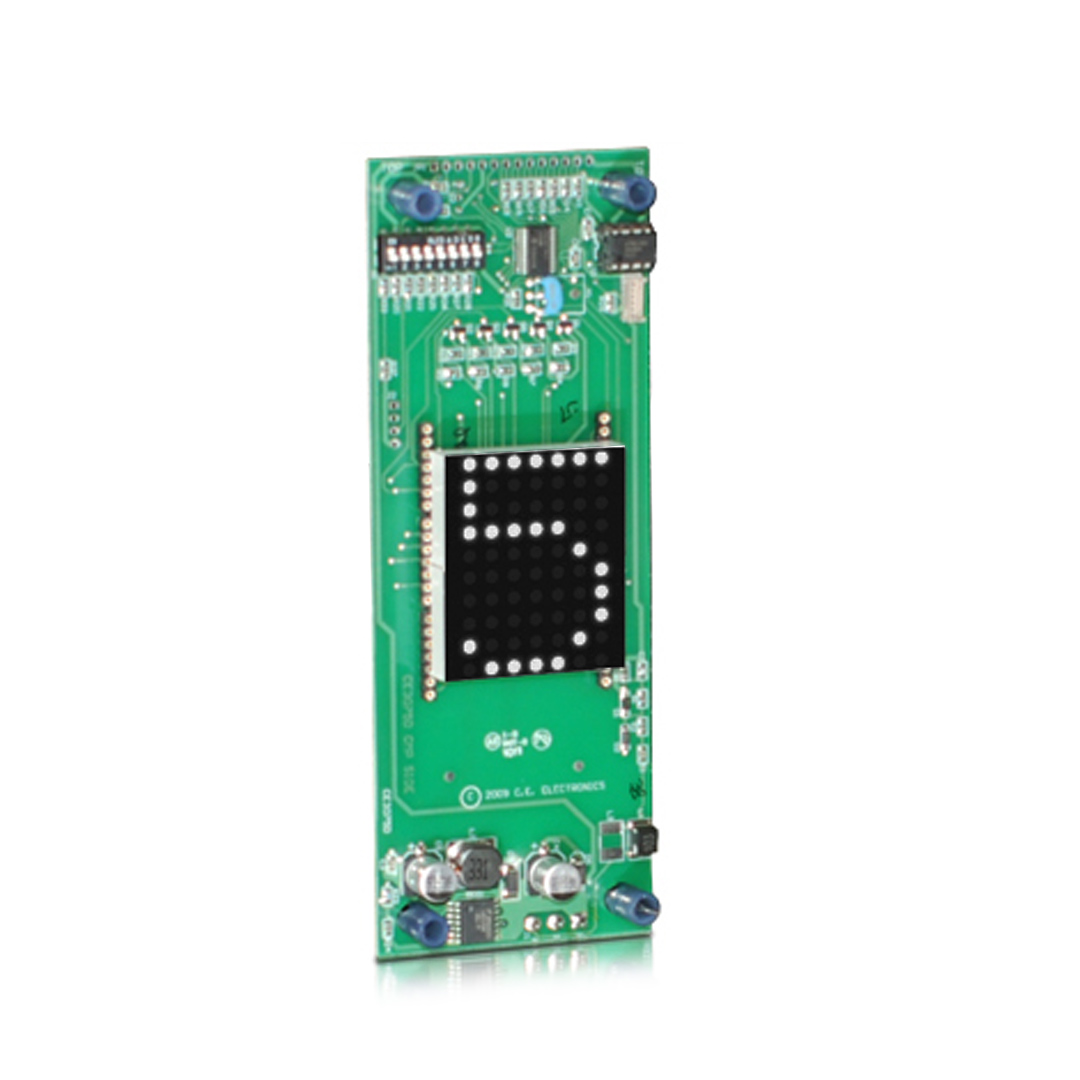

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in single-digit floor designations.

Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low-cost design
  •  Self-contained unit
  •  Latched input
  •  Scrolling & rollover
  •  Hall lantern option
  •  Passing chime output
  •  Self Testing
  •  Message inputs
  •  Error detection and correction feature

Dimensions:

  •  60mm W x 160mm H x 44.5mm D  |  2.362″W x 6.299″H x 1.75″D

Notes:

1. Is a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a Micro Comm interface.
