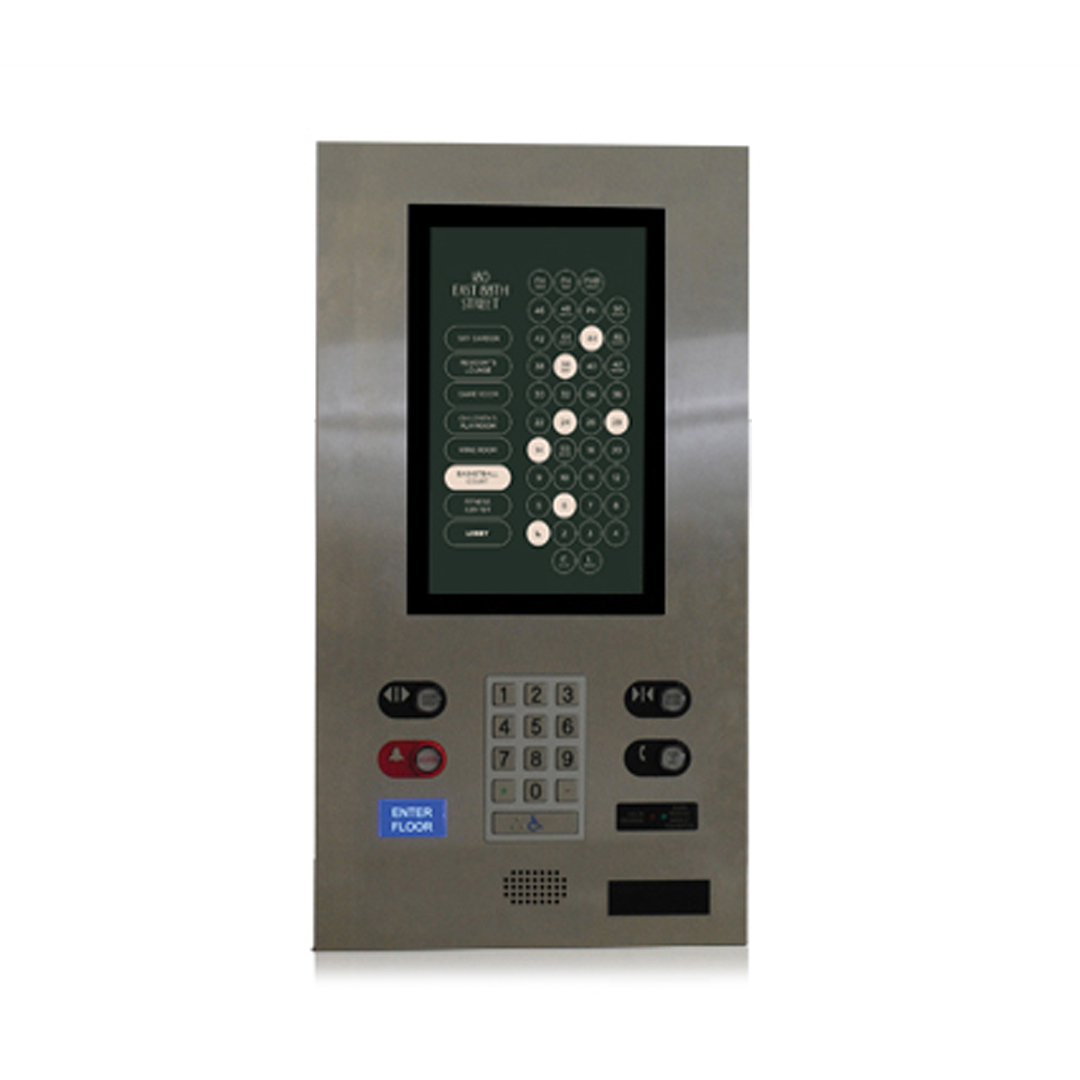

ET185-KPX3 | 18.5″ ELITE TOUCH

SKU: ET185-KPX3 Category:

VIEW: CATALOG PAGE | ET185-KPX3-DETAIL1 | E-FLYER
PANEL PREP: PP185-PNE | DETAILED DIMENSIONS: DD185-E
L PREP
CONTROLLER INTERFACE: CIB-DXXRX | KEYPAD: ETKYPD-XXX

18.5″ ELITE TOUCH ® SERIES

Our 18.5 Touchscreen would take place of the traditional car panel pushbuttons. The graphics on the touchscreen represent destination served by the elevator. The passengers choose their floor by touching the appropriate area on the screen.

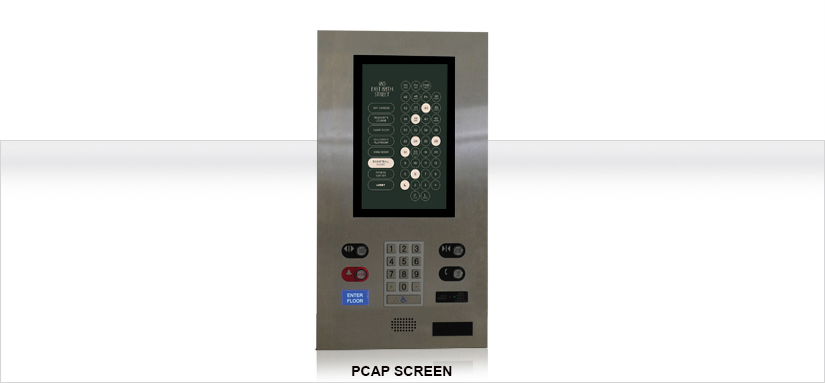

PCAP SCREEN: PROJECT CAPACITIVE TOUCH

This uses the conductive touch of a human finger for the input.
Flush Screen

Typical Applications:

  •  Car Operating Panel

Features:

  •  Broad viewing angle of 170 degrees (85 x 85 x 85 x 85)
  •  24 Bit color choices (more than 16 million)
  •  Can be paired with EN81 keypad with LCD readout
  •  USB updatable
  •  ASME17.12007, CSA B44-07, ANSI A1171.1-2003
  •  UL-60950, CSA22.2 # 60950 ball drop test

PCAP:

  •  PROJECTED CAPACITANCE SCREENS
  •  Conductive touch by human finger for input
  •  Flush Screen

Dimensions:

  •  11.25″W x 19.25″H x 3.50″D
