EMN43-S6XX | 4.3″ TFT

SKU: EMN43-S6XX Categories: ,

VIEW: CATALOG PAGE

DOWNLOAD: E-FLYER

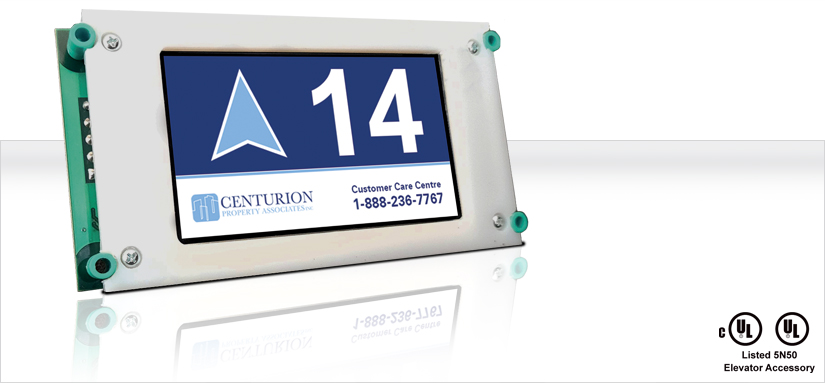

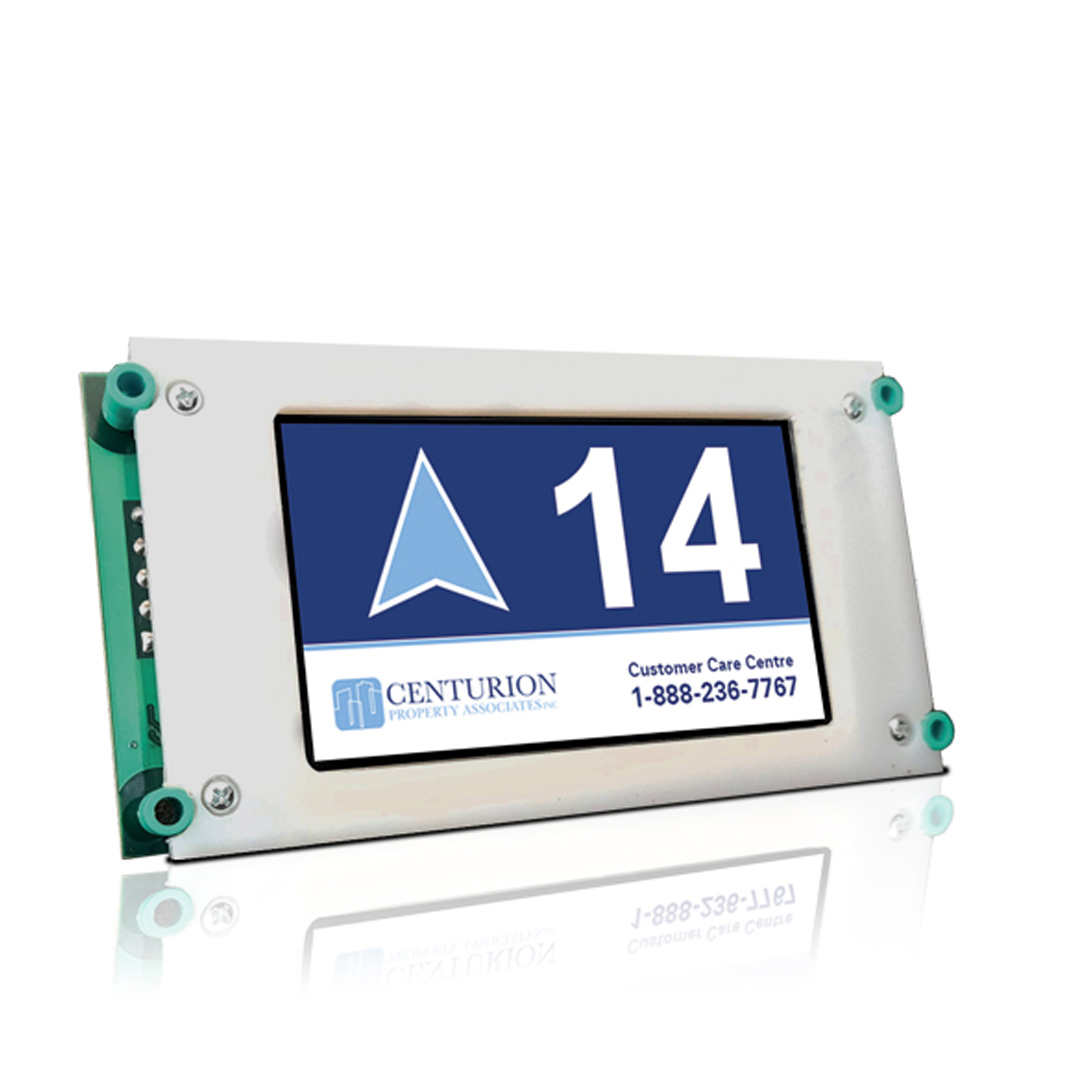

4.3” MINI PI

The Mini PI is a flexible information indicator that can be customized for any building or corporation. This customization can reflect architectural elements, color schemes, and corporation identity. Within this customization, information can be presented to passengers regarding the elevator’s current position and direction, arrival arrows along with priority messages from the controller. It’s also designed to be a destination-type display showing floors served when in destination mode.

These units also have a non-movement blanking to help preserve backlight life.





Typical Applications:

  • Car operating panel
  • Car transom
  • Lobby/arrival
  • Messaging
  • Destination Display



Features:

  • Passing Chime Output
  • USB Updatable
  • Self Testing
  • Low Profile
  • Destination Display
  • Backlight Saver Function
  • MICRO COMM Input
  • Voice Capabilities
  • ASME 17.1 hb-2019 Display Compliant for Ring, Rath & EVAC

Dimensions:

  • Horizontal: 6.00″W x 3.0″H x 2.50″D



Note:This display does not have the standard 4.3 display side lights.
