EH130-XXXXX | 75mm Dot Matrix [3″] CHARACTER

SKU: EH130-XXXXX Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM: DISCRETE | MICRO COMM

DOT MATRIX

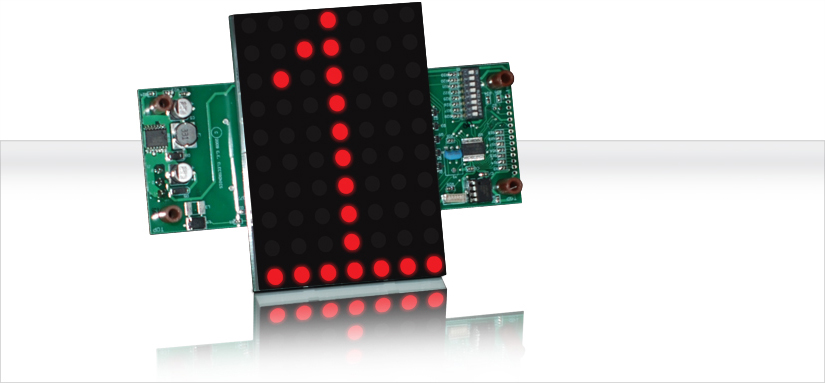

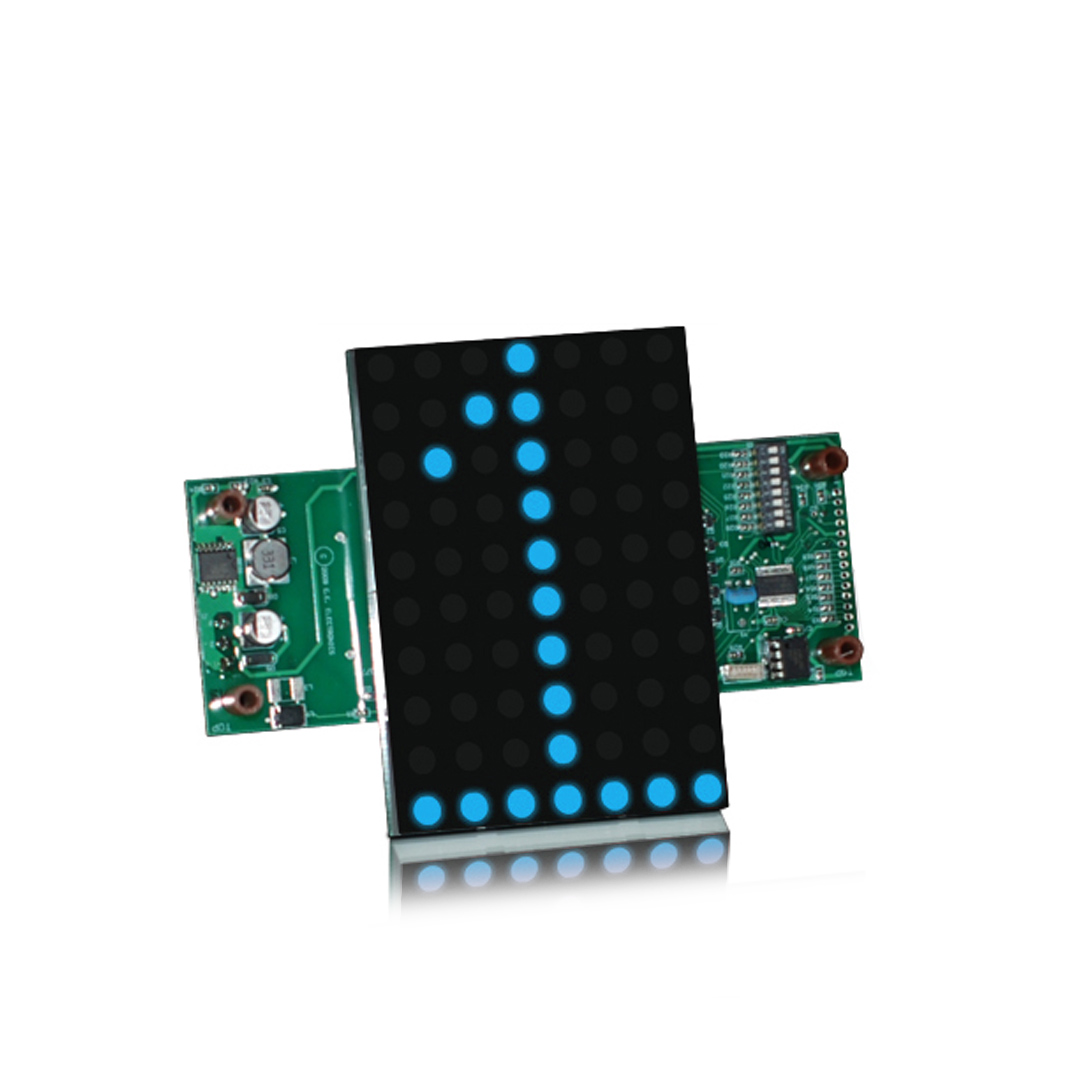

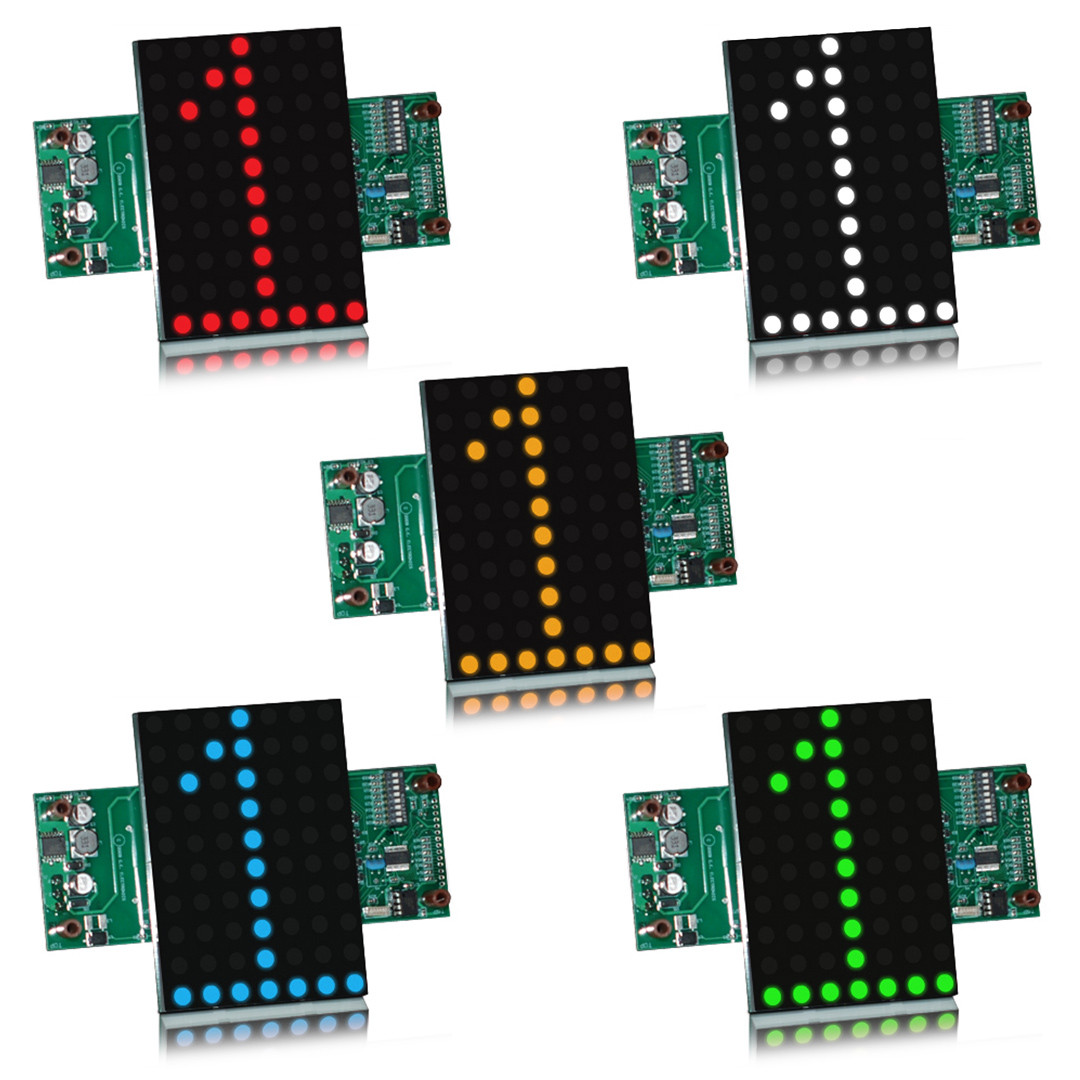

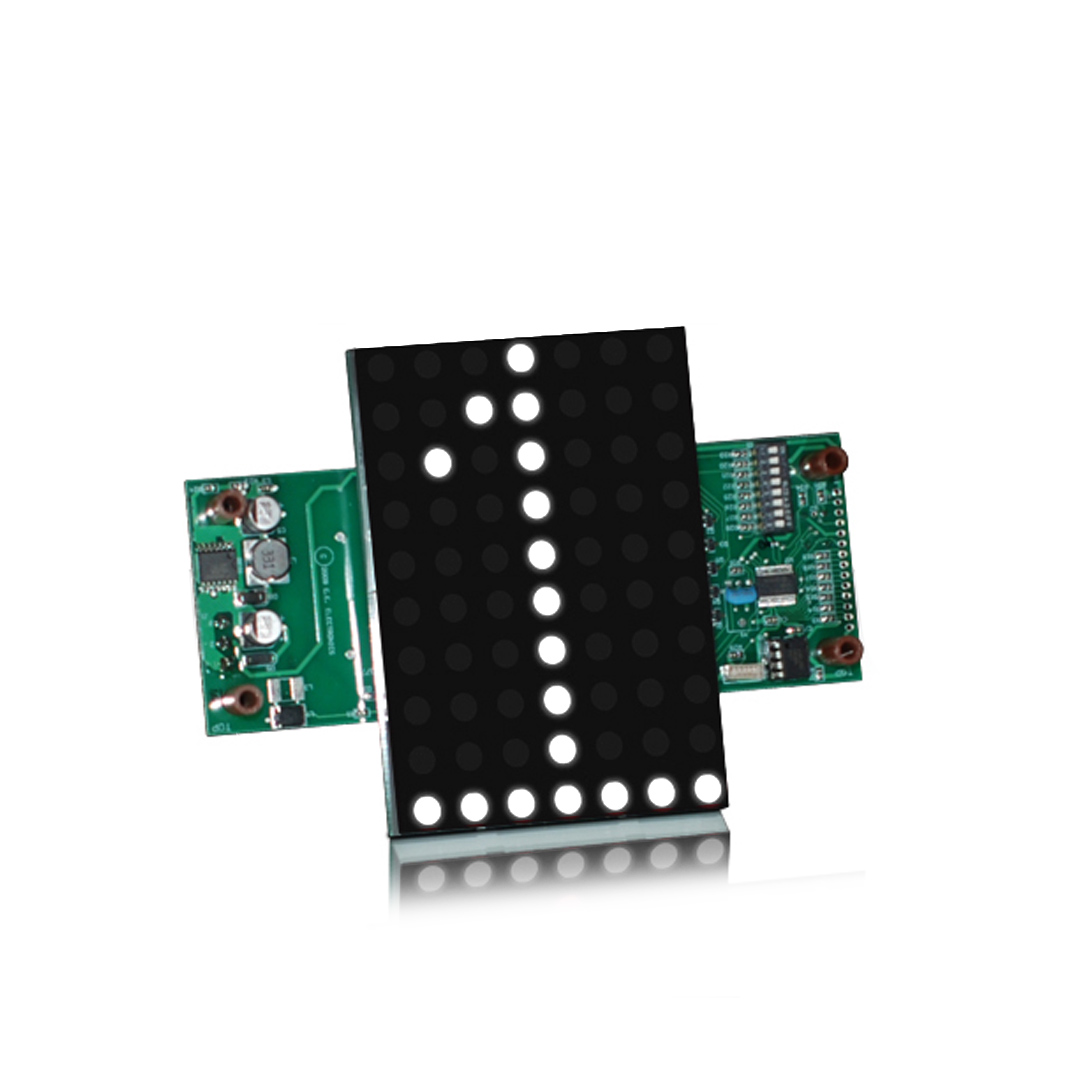

Dot Matrix LED Digital Indicator for floor position display. Any alphanumeric or custom character can be displayed.



Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low cost design
  •  Self contained unit
  •  Latched input
  •  Scrolling & roll over
  •  Hall lantern option
  •  Passing chime output
  •  Self Testing
  •  Message inputs
  •  Error detection and correction feature

Dimensions:

  •  160mm W x 60mm H x 44.5mm  |  6.299″W x 2.362″H x 1.75″D



Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
