DPCXX-XXXXX | DIRECTION PREFERENCE CONTROL UNIT

Category:

VIEW: CATALOG PAGE |     WIRING DIAGRAM

DIRECTION PREFERENCE CONTROL UNIT

Save hours and time by following a few parameters. This unit determines the direction preference for a controller without lantern logic. The unit makes intelligent decisions based on the information given, then provides the correct output. Dry contact relays are given for up and down indications with an option for MICRO COMM serial lanterns.



Features:

  •  Machine room mount
  •  Self-contained
  •  Opto isolated inputs
  •  Pluggable connection
  •  Fused
  •  Relay output
  •  Optional serial lantern output
  •  Confroms to ADAAG 4.10.4

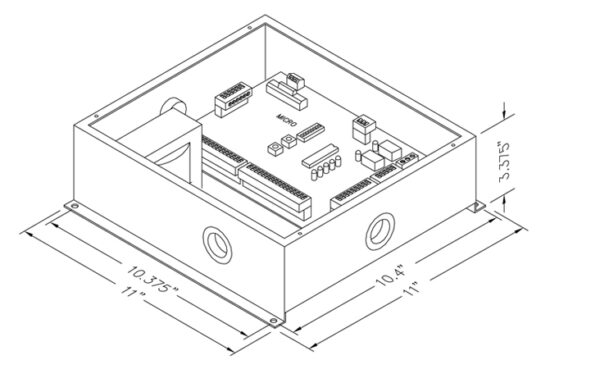

Dimensions:

  •  11″W x 11″H x 3.375″H



Notes:

1. Illuminated hall buttons needed for use of this device.

2. If a special voltage is required, please consult factory.
