COPLD1-XXXXXX | C.O.P. LAMP DRIVER

SKU: COPLD1-XXXXXX Category:

VIEW: CATALOG PAGE  | WIRING DIAGRAM: DIRECT INPUT CONNECTION | MICRO COMM CONNECTION

C.O.P. LAMP DRIVER

The C.O.P. Lamp driver was designed to illuminate the pushbutton lamps, requiring no extra wiring from the machine room. This unit offers a choice of options, including passing chime output and/or calling to accept chime.

Features:

  •  Easy installation
  •  Includes 8ft. cable
  •  The fire key clears all lamps
  •  Microprocessor controlled
  •  P.I. cancels individual lamp
  •  MICRO COMM input for lamp cancellation
  •  Conforms to ADA AG 4.10.12(2)
  •  8 inputs / 8 outputs main and auxiliary

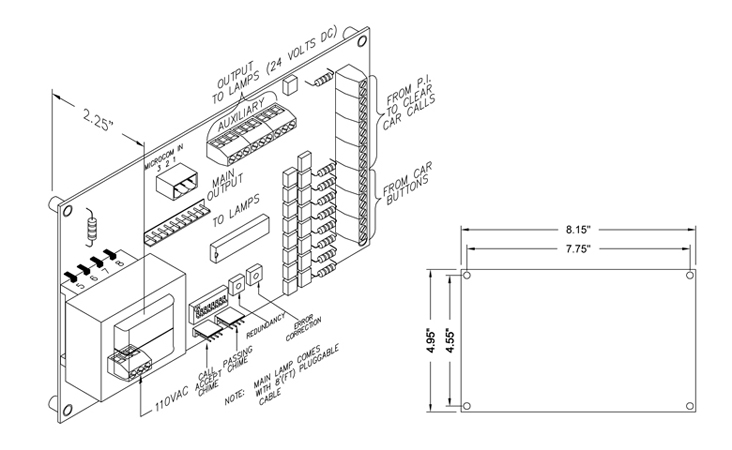

Dimensions:

  •  Vertical: 8.15″W x 4.95″H x 2.25″D

Note:

• MUST USE 6, 24, 28, 30VDC LAMPS/LEDS 72ma MAX
