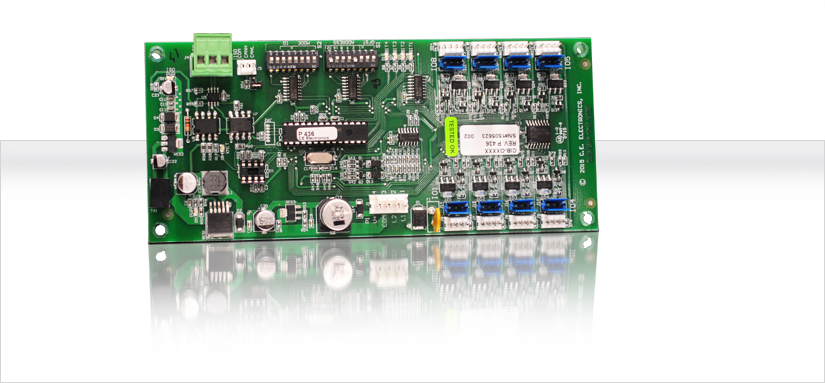

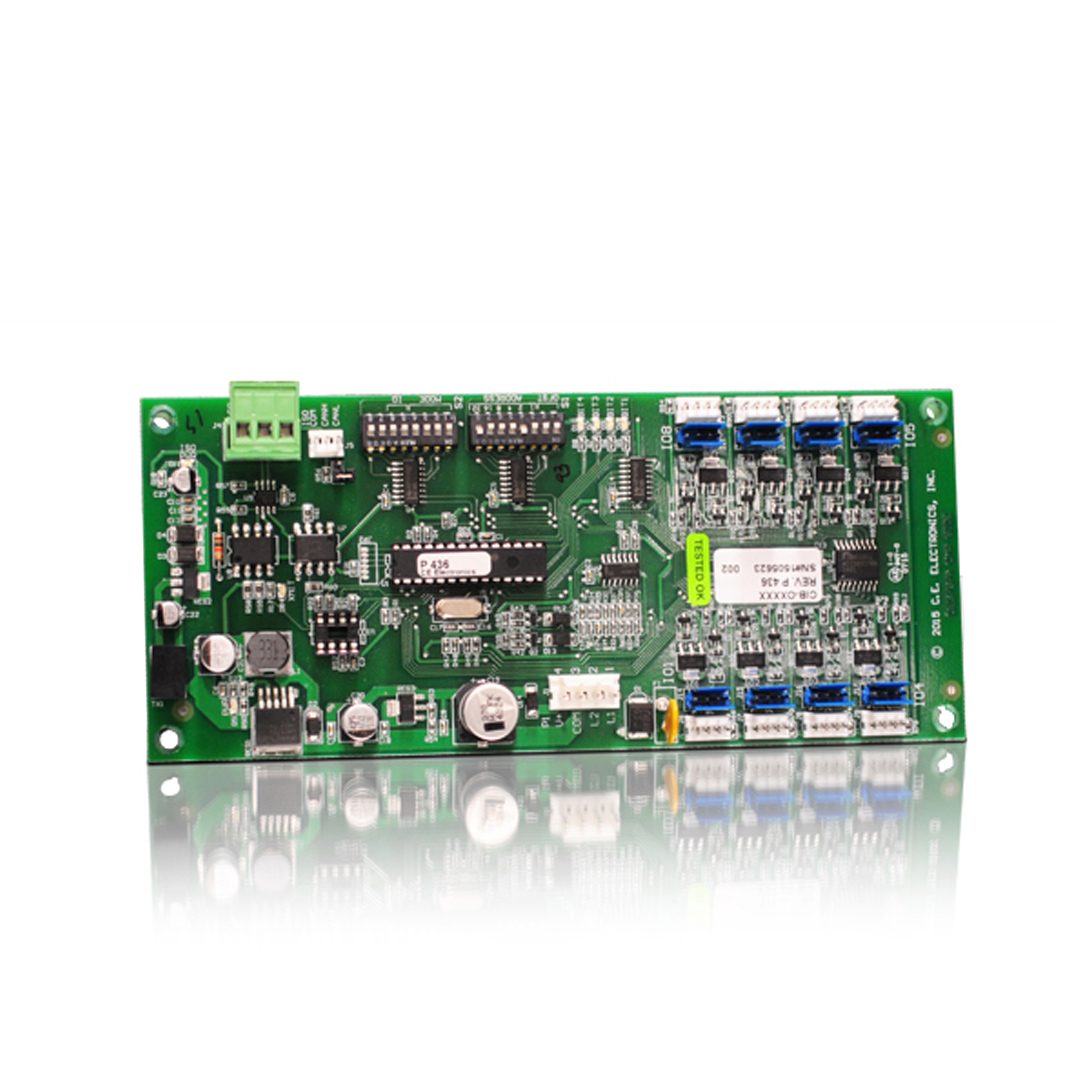

CONTROLLER INTERFACE BOARD
This unit is the interface between the touchscreen and the Otis RSL. As the rider selects their car call on the screen, the CIB collects that information and sends it to the controller via RSL. The controller responds via RSL and communicates feed back to the touch screen. The car call is illuminated on screen to confirm the selection and then the controller send the car to the floor.
Typical Applications:
> Touch screen to RSL interface
Features:
> This board also has 8 discrete I/O (24v) that also tie into the RSL and can be parallel with the touch screen or as separate I/O.
Dimensions:
> 8.250″W x 3.500″H
Note:
> 1-3/4 Minimum required depth
