SH222-XXXX | 2.2″ CHARACTERS
VIEW: CATALOG PAGE | WIRING DIAGRAM | DOWNLOAD: E-FLYER

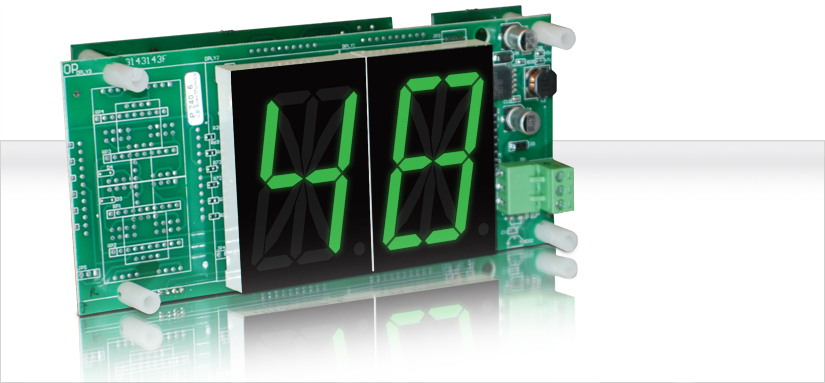

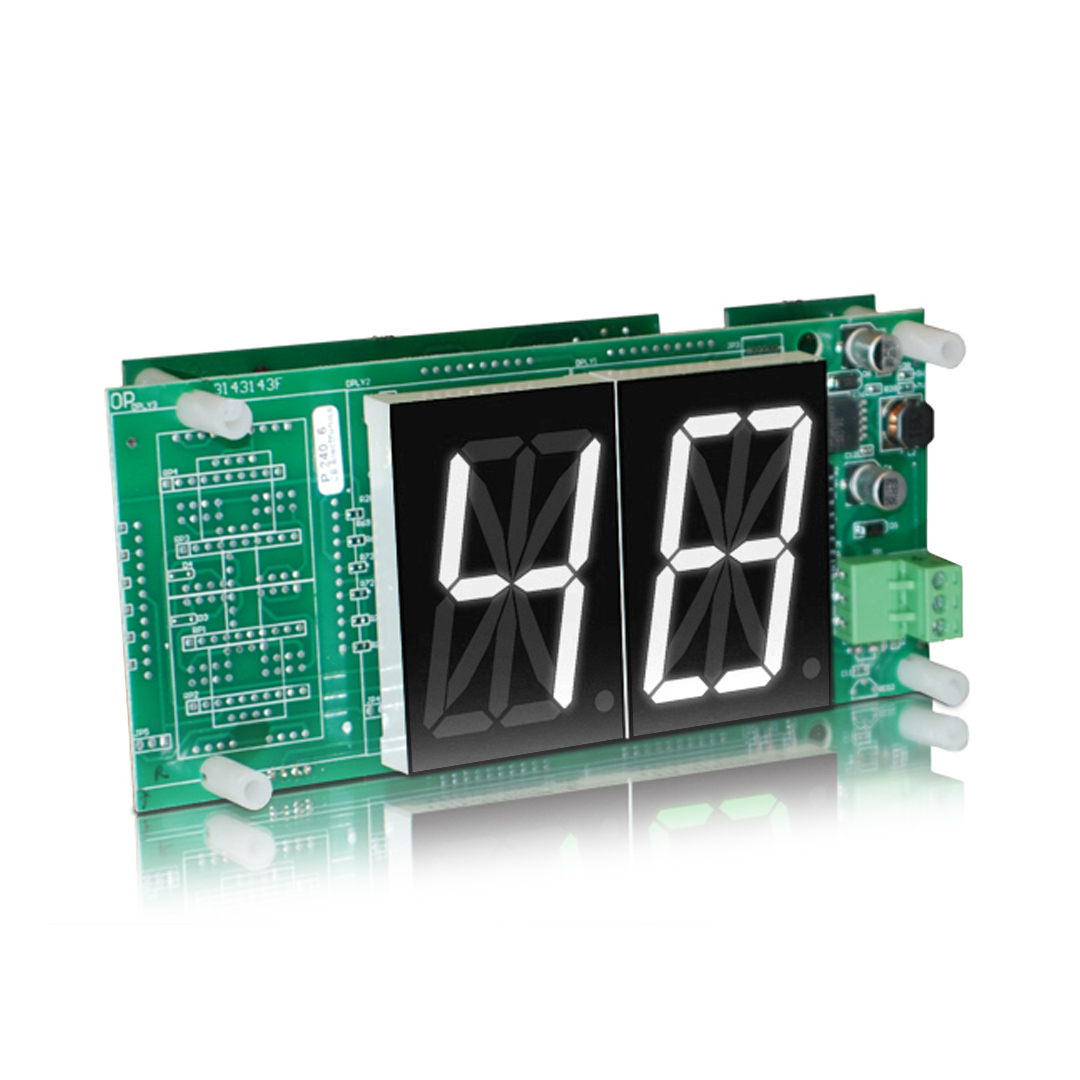

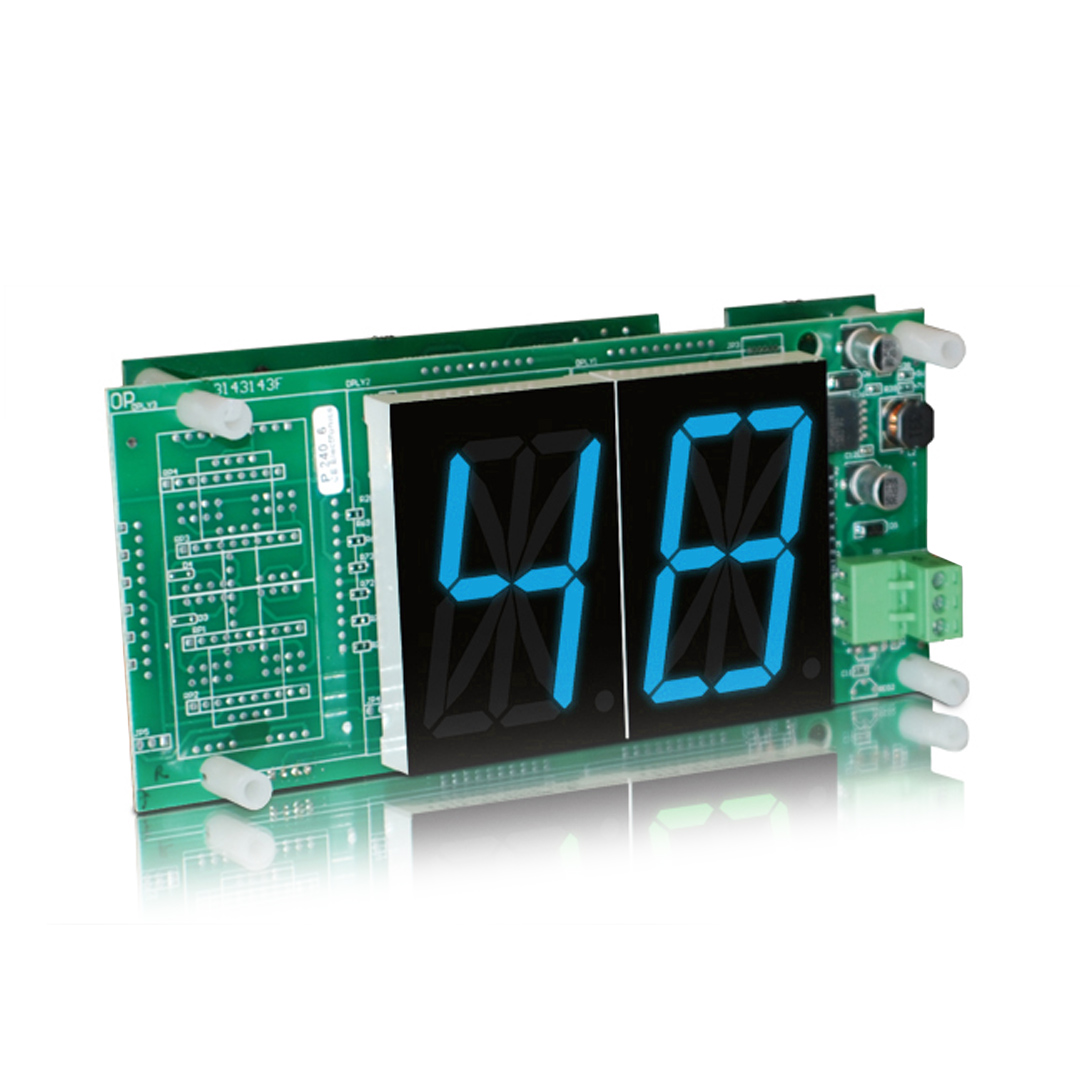

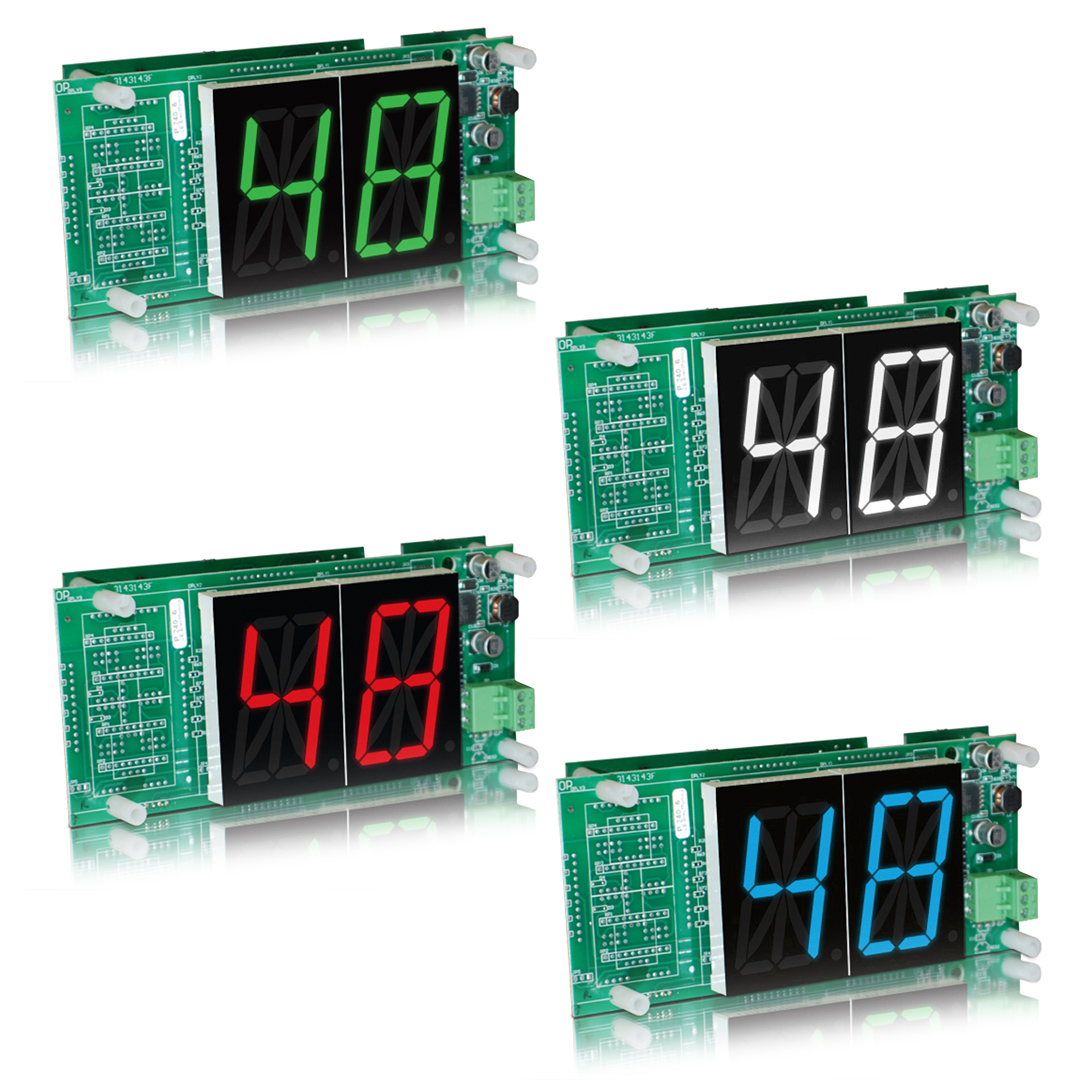

SEGMENTED 2.2″ DISPLAY
Segmented LED main digital indicator for floor position. Any alphanumeric character can be displayed single digit or double digit floor designations.
Typical Applications
- Car-OP Panel
- Transom-car or hall
Features:
- Self contained
- Auxiliary output
- Latched inputs
- On board power supply
- Self testing
- Passing chime output
- Error detection and correction feature
- UL
- 8 inputs
Dimensions:
- 6.7″W x 3.1″H x 2.75″D | 2.2″ CHARACTERS
Note:
1. *May need additional decoder card.
2. If a special voltage is required, please consult factory.
3. Required 110VAC or optional 220VAC – Consult factory for 220AC
