SH122-XXXXX | 2.2″ CHARACTERS | 2.5″ ARROW

SKU: SH122-XXXXX Category:

VIEW: CATALOG PAGE |     WIRING DIAGRAM | DOWNLOAD: E-FLYER

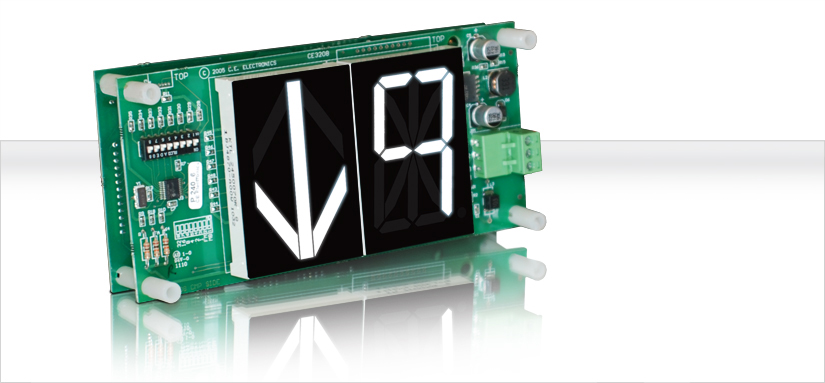

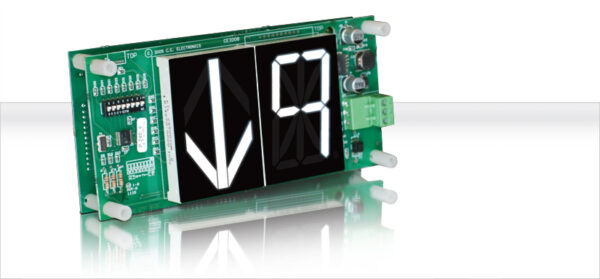

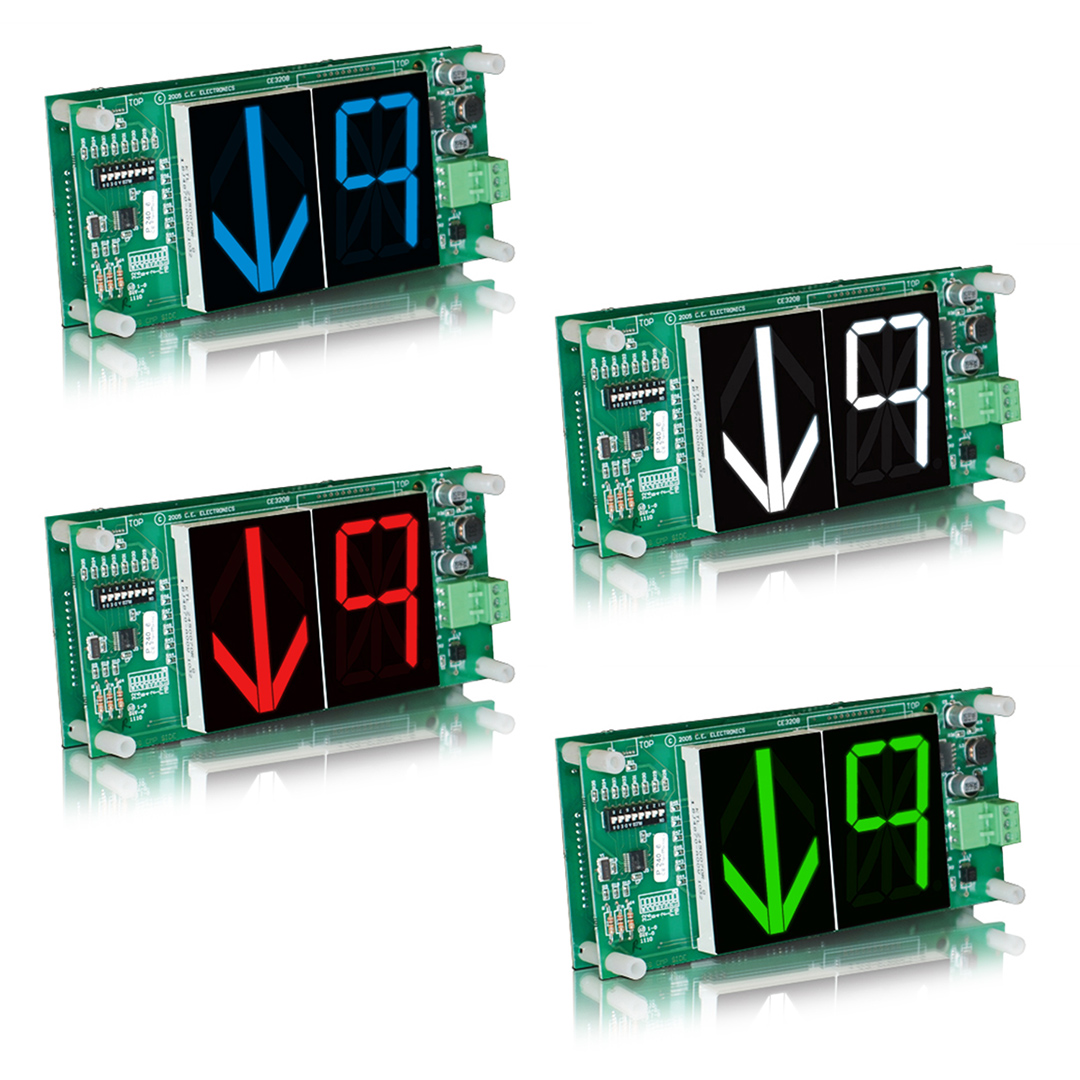

SEGMENTED 2.2″ DISPLAY

Segmented LED main digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in single digit floor designations.

Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Self contained
  •  Auxiliary output
  •  Latched inputs
  •  On board power supply
  •  Self testing
  •  Passing chime output
  •  Error detection and correction feature
  •  UL
  •  8 Inputs & Up/Down

Dimensions:

  •  6.6″W x 3.1″H x 2.75″D   |   2.2″ CHARACTERS   |   2.5″ ARROW





Notes:
1. *May need additional decoder card.

2. If a special voltage is required, please consult factory.

3. Required 110VAC or optional 220VAC – Consult factory for 220AC
