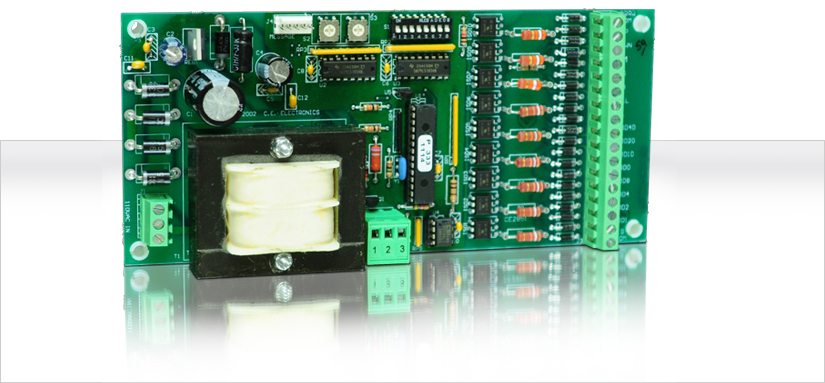

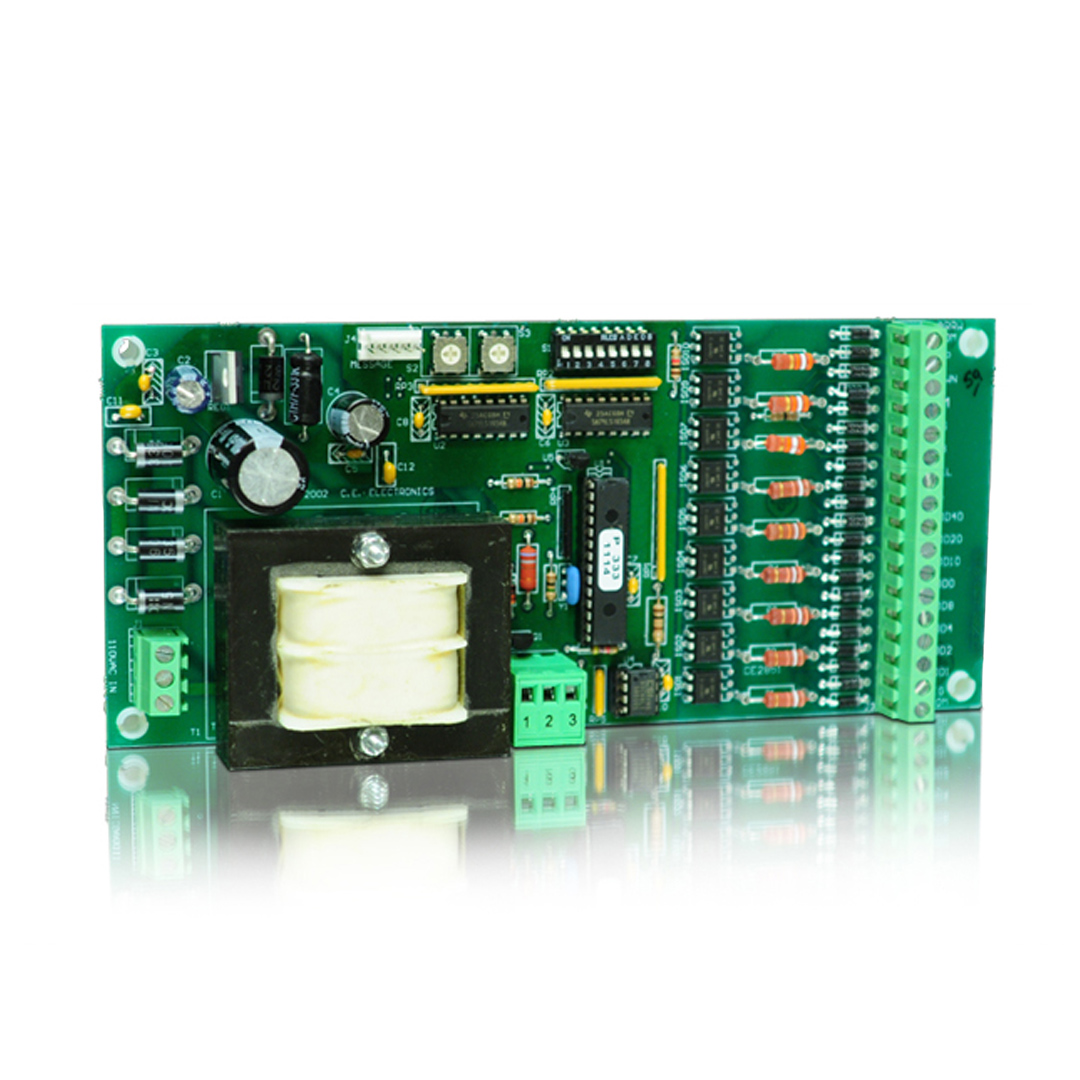

CONTROL DRIVER BOARD

This unit was designed to be interfaced to Dover type controllers. The board is capable of driving 2 to 4 displays remote from itself. Any MICRO COMM series display can be utilized with this unit.



Features:

  •  Latched inputs
  •  Cross wire protected
  •  Self testing
  •  Alternate message
  •  Passing chime output
  •  MICRO COMM output
  •  Self-contained
  •  Error detection and correction feature



  • Dimension:
    7.600″W x 3.000″H x 2.5″D



Notes:
1. Derate 50% on VF display.
2. * May need additional decoder card.
