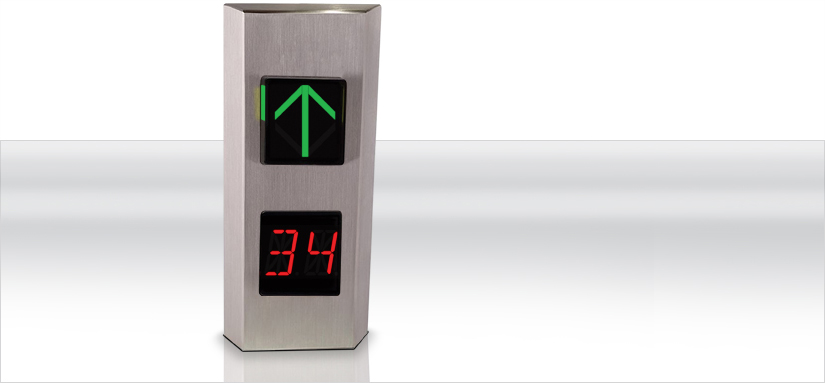

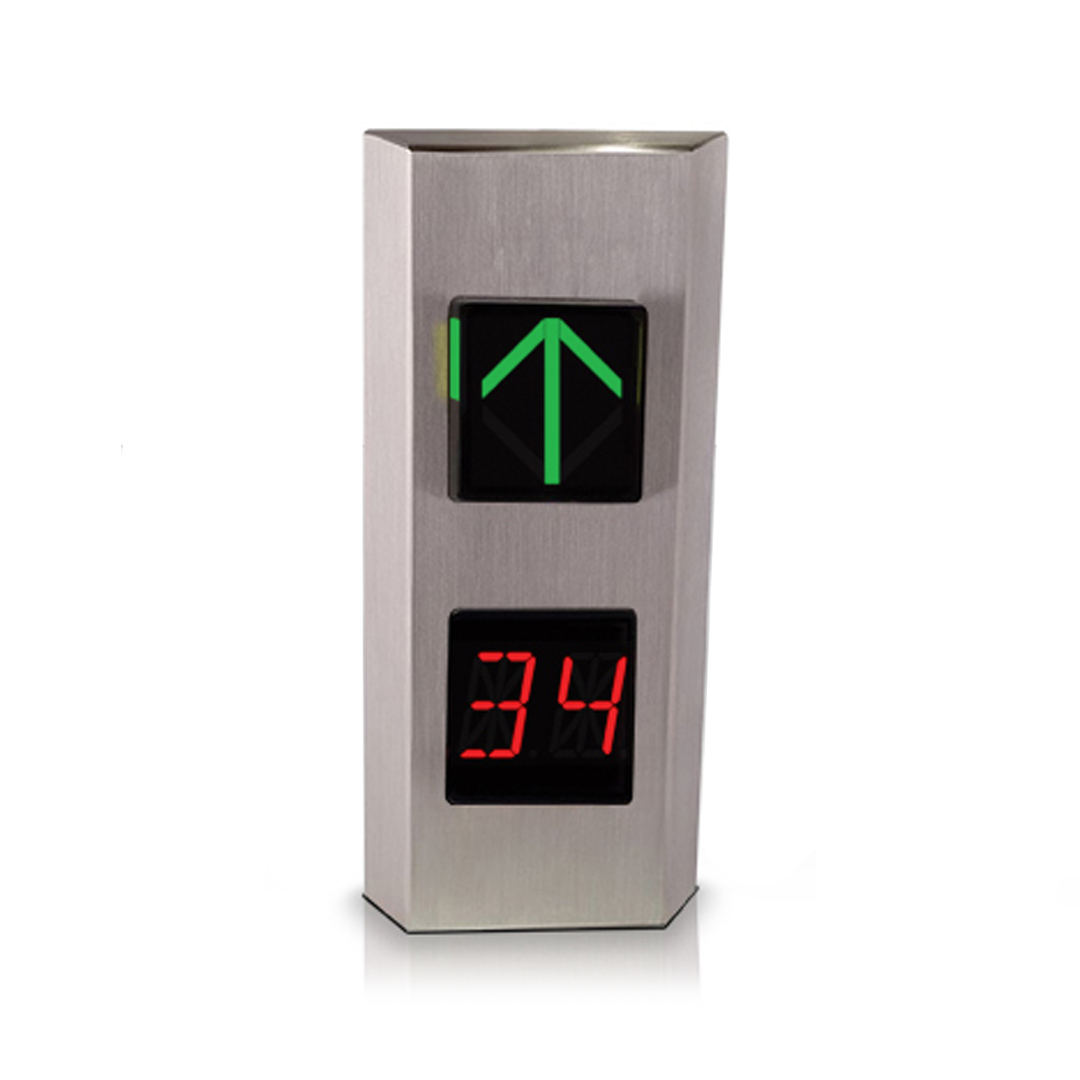

OVETC-XX | 3.0 INCH LED EXTENDED ARROW

3.0 INCH LED EXTENDED ARROW

Long life, solid state bi-color, white or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis RSL link. The unit has a double-digit 2-inch display. It includes a bi-color arrow which is green in the up direction and red in the down or solid blue or white with matching side bars for 180° viewing. The unit is also equipped with an arrival gong. The programming is dip switch selectable.

Typical Applications:

•  Hall and car lanterns
•  P.I. combo with 180° viewing angle

Features:

•  Bi-color, solid white or solid blue 3-inch arrow
•  2-inch character – red, green, white, or blue
•  Solid sidebar/arrow
•  180° viewing angle lantern
•  1-year factory warranty
•  Conforms to ADAAG 4.10.4
•  Includes gong
•  RSL input
•  ECA capable

Dimensions:

•  4.30″W x 9.35″H (Available in Extended Lexan Lens & Flush Lexan Lens)

Note:

•  1.5 inch minimum depth of unit
