NEL BUTTON EXTENDER

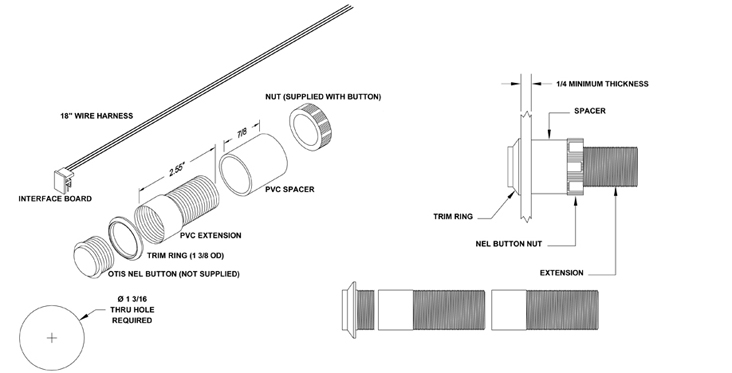

This is a NEL button extender designed to extend the standard Otis NEL button. For use with 1/4 inch or more wall depths.

Typical Applications:

  •  Install trim ring onto the button.
  •  Connect harness/interface board to button header.
  •  Thread the PVC extension onto the button.
  •  Install assembly through wall/panel.
  •  Install spacer (if needed) overextension.
  •  Use the NEL button nut on the extension and tighten it to complete the assembly.

Note:

PVC extension can be shortened if needed.
