OLHAD-S | OTIS SERIAL LINK | 3.0″ LED ARROW

SKU: OLHAD-S Categories: ,

VIEW: CATALOG PAGE | WIRING DIAGRAM

OTIS SERIAL LINK | 3.0″ LED ARROW

Long life, solid state bi-color arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis serial CDL link. The unit has a double digit 2″ display. It includes a bi-color arrow which is green in the up direction and red in the down. The unit is also equipped with an arrival gong.



Typical Applications:

  •  Hall and car lanterns

Features:

  •  Otis luxury series mounting
  •  Double digit 2.2″ LED display
  •  Bi-color
  •  Red down / green up
  •  1 year factory
  •  Conforms to ADAAG 4.10.4
  •  Includes gong

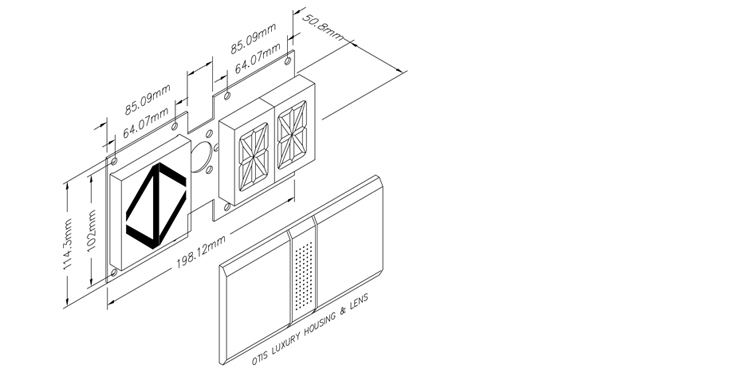

Dimensions:

  •  198.12mm W x 114.3mm H x 50.8mm D     |     3.0″ ARROW

Note:

Otis standard lens must be modified to accept this configuration.
