OB215-XX | BLUE BACKGROUND LIQUID CRYSTAL DISPLAY

SKU: OB215-XX Categories: ,

VIEW: CATALOG PAGE

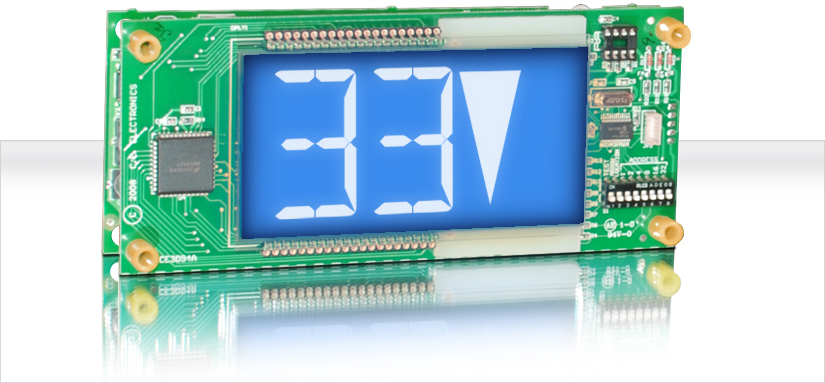

BLUE BACKGROUND LIQUID CRYSTAL DISPLAY | 1½ (40 mm) LCD DISPLAY

Blue Liquid Crystal Display indicator with dual digits and arrow for floor position as well as car direction. Any alphanumeric character and up/down arrows can be displayed in either single or double digit floor designations.

Typical Applications:

  •  Car-OP Panel
  •  Transom
  •  Car and hall fixtures

Features:

  •  Long life LED backlighting
  •  Fast, 4-wire hookup
  •  Self testing
  •  Alternate message
  •  Passing chime output
  •  Error detection and correction feature
  •  Otis 411 car data link hook up
  •  No R55 card needed
  •  Deep blue crystal with white back light

Dimensions:

  •  6.50″W x 2.70″H x 1.625″D     |     1.5″ LCD DISPLAY



Note:

Otis car data link interface elevonic 411-style controls
