OAHE-FX | 3.0″ LED EXTENDED ARROW

SKU: OAHE-FX Categories: ,

VIEW: CATALOG PAGE

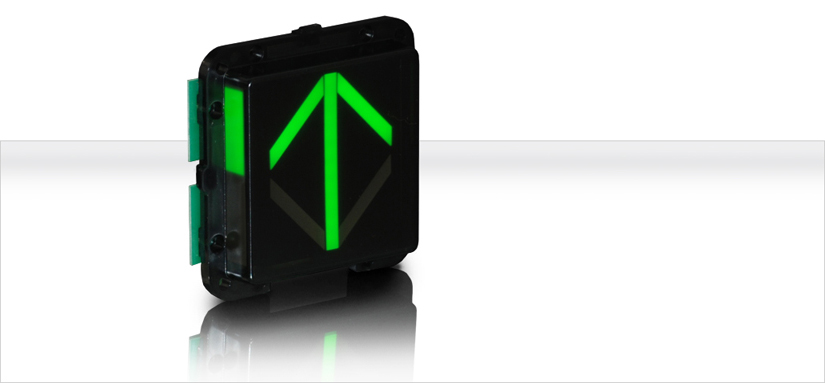

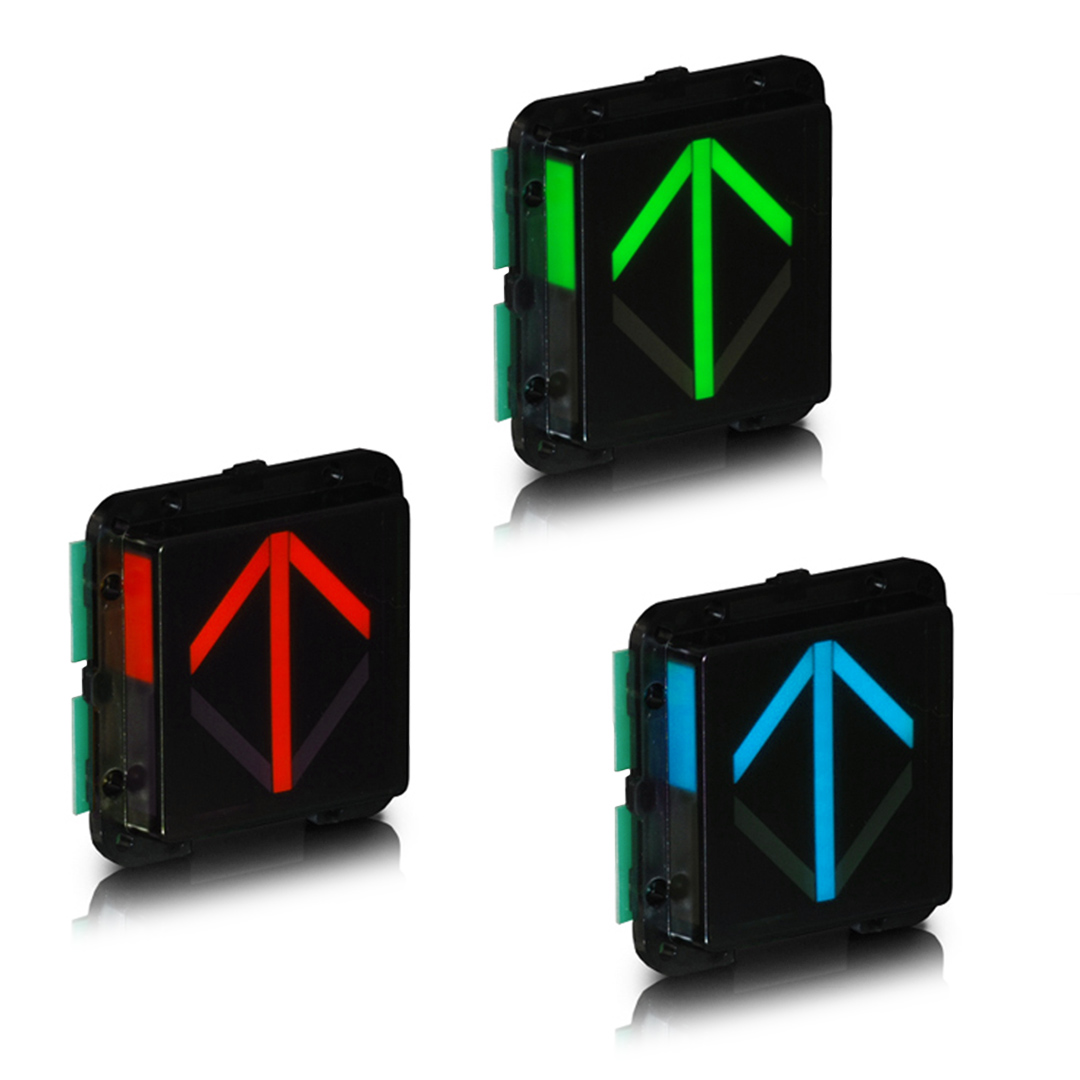

3.0″ LED EXTENDED ARROW

Long life, solid state bi-color or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals within the standard Otis range. The bi-color arrow is green for up and red for down or optional solid blue with matching side bars for 180° viewing.



Typical Applications:

  •  Hall and car lanterns with 180° viewing angle. For Otis advance series style fixtures, horizontal or vertical mounting.



Features:

  •  Otis advance series mounting
  •  Ultra-thin packaging
  •  Bi-color or Solid Blue
  •  Red down / green up
  •  Solid side bar / arrow – Bi-color or Solid Blue
  •  180° viewing angle
  •  1 year factory warranty
  •  Conforms to ADAAG 4.10.4
  •  Includes gong

Dimensions:

  •  114.3mm W x 78.74mm H x 32mm D  |  3.0″ Arrow



Note:

Can be used on M2 flush as well.
