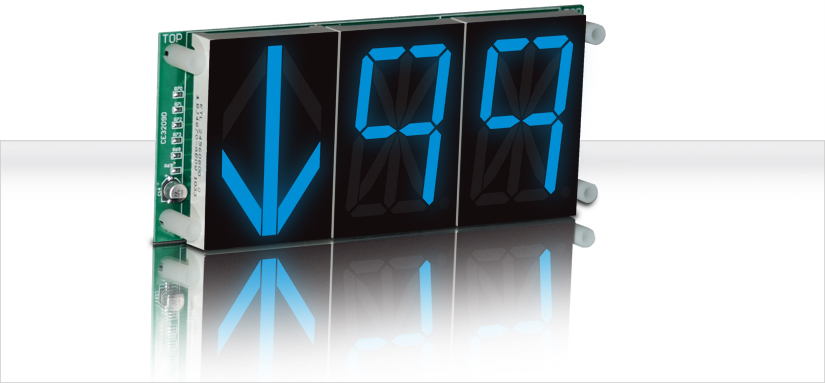

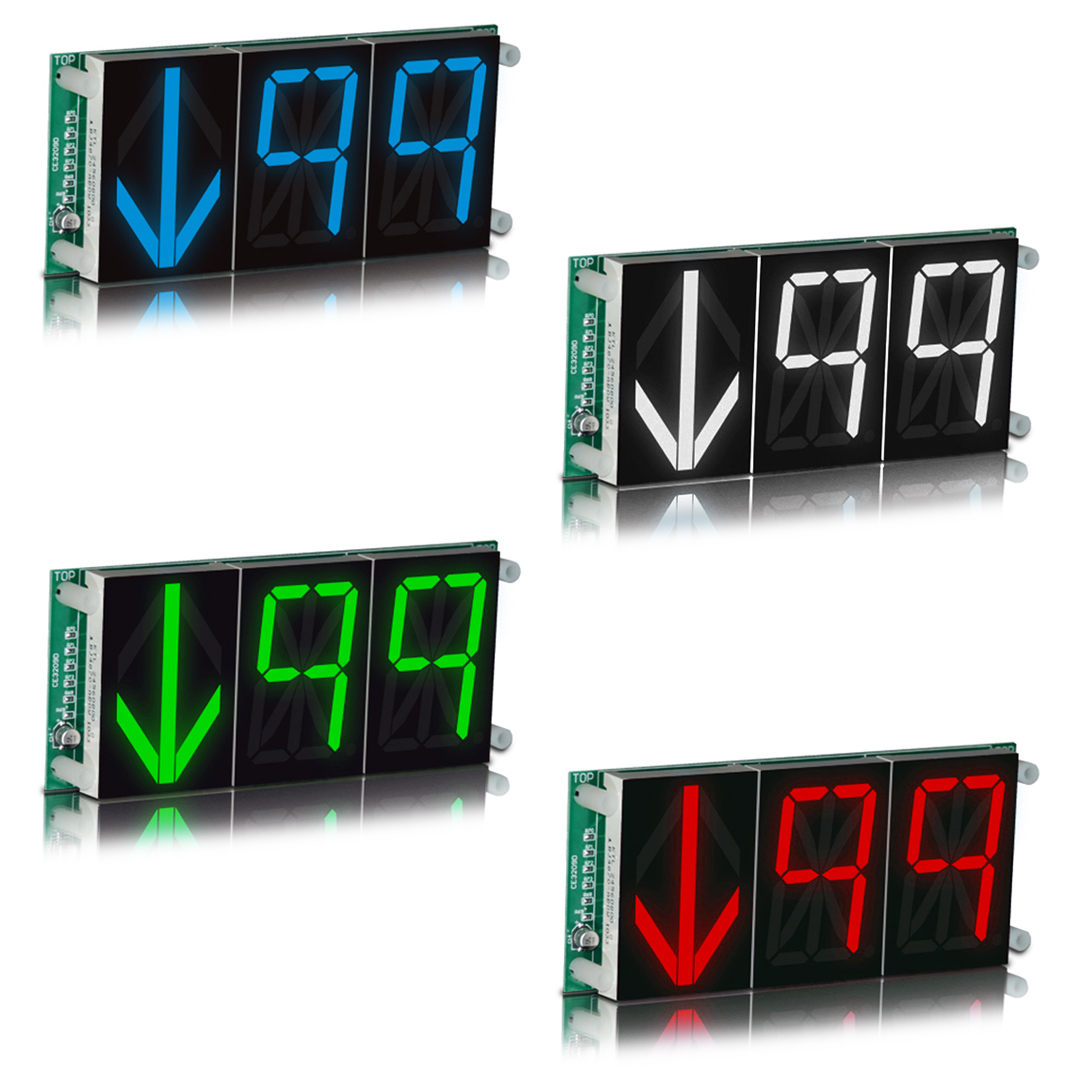

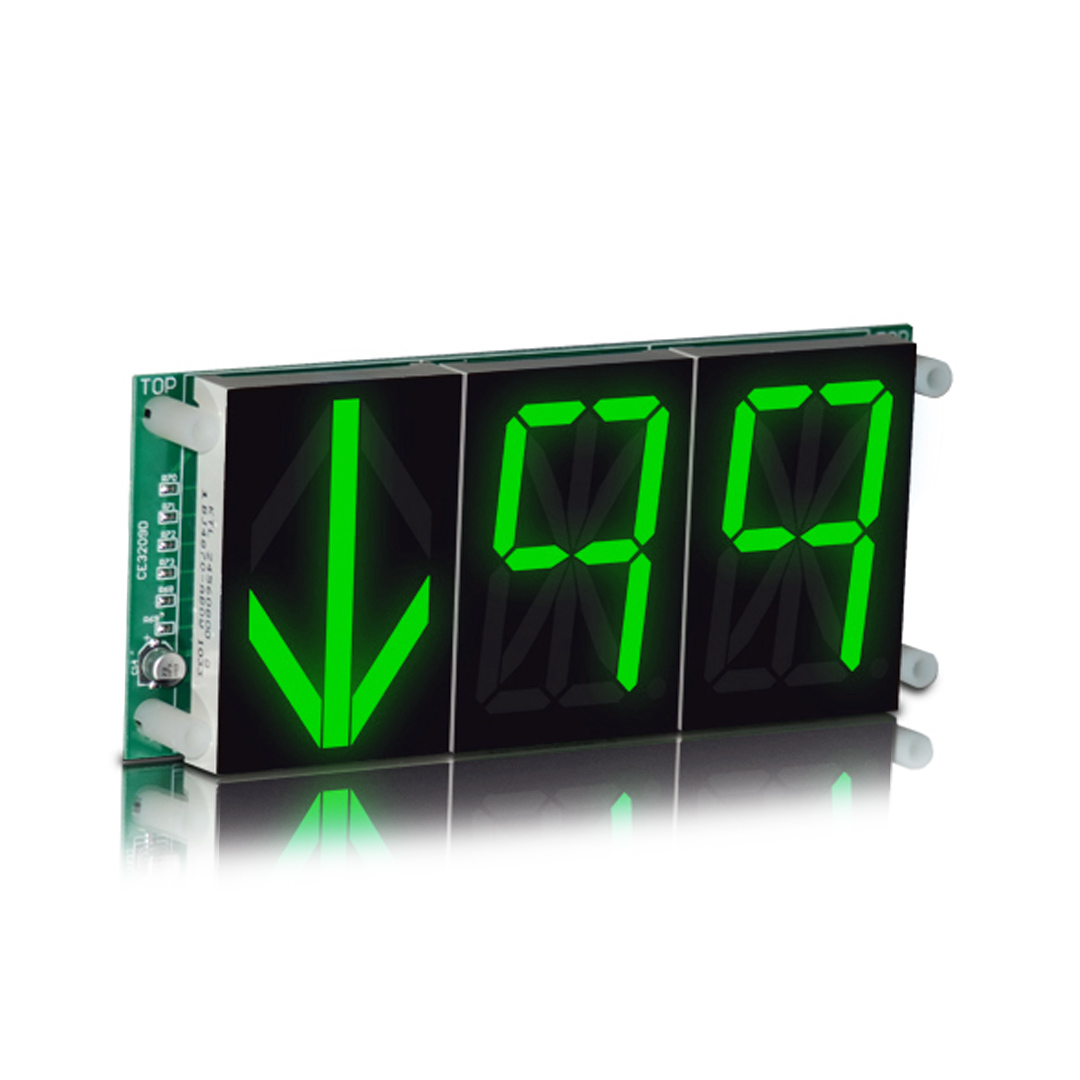

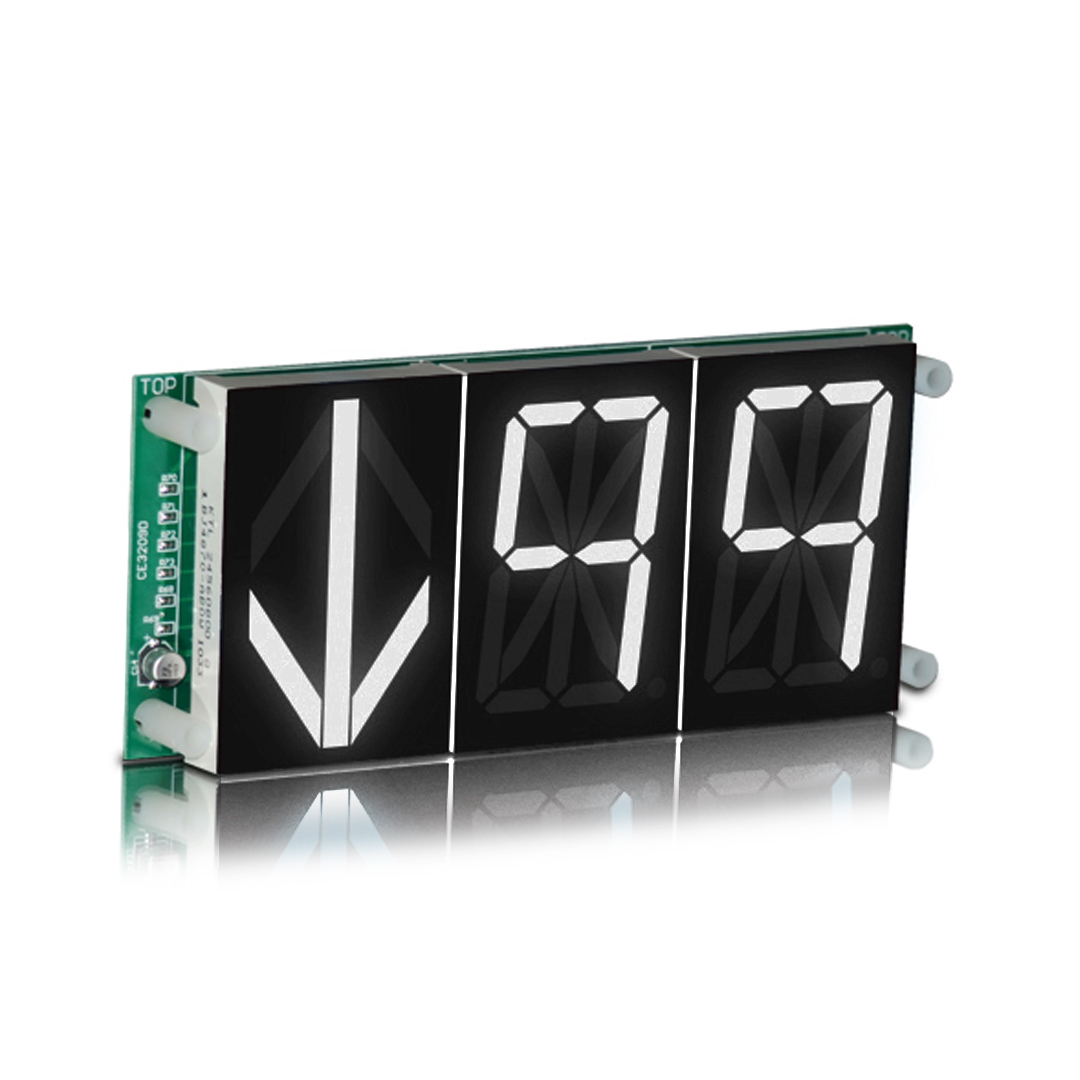

MH222E-XXXX | 2.2″ CHARACTERS – 2.5″ ARROW

REMOTE DISPLAY INDICATOR “RDI”

Segmented LED, digital indicator for floor position display. Any alphanumeric character can be displayed in either single or double-digit floor designations.

Typical Applications

• Car-OP Panel
•  Transom-car or Hall

Features

• Fast, 3-wire hookup
• Latched inputs
•  Crosswire protected
•  Self Testing
•  Alternate Message
•  Passing chime output
•  Error detection and correction feature
•  Reduced PC board height

Dimensions

• 6.496″W x 2.756″H x 1.50″D | 165mm x 70mm x 38.1mm

Note:
1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.
