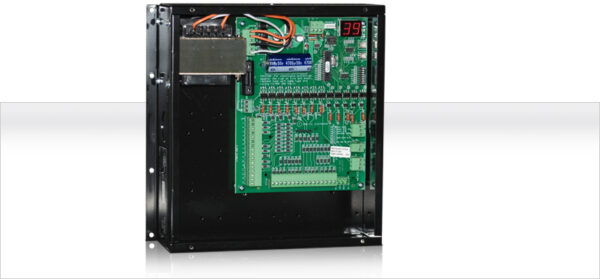

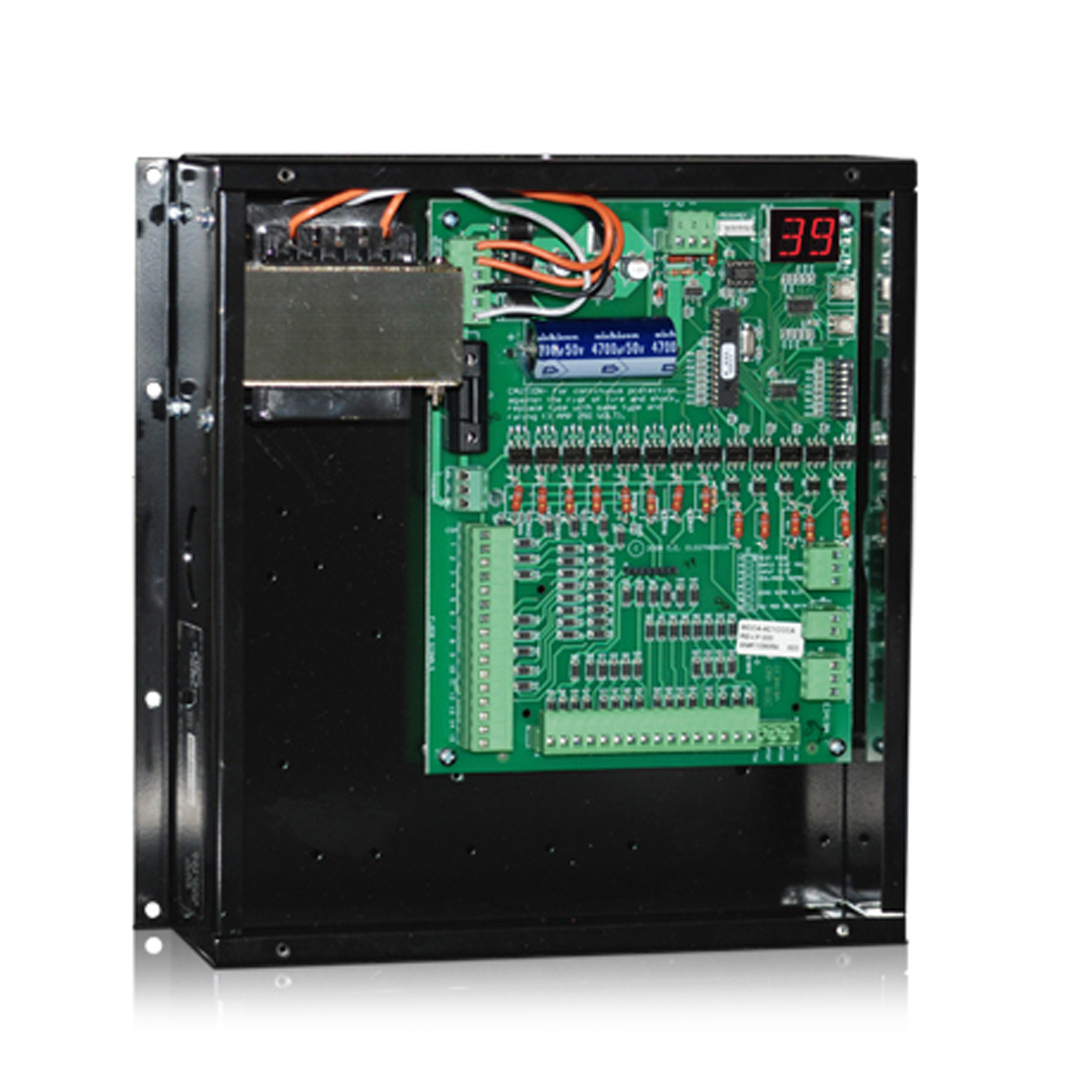

MCCA-XXXXXXX | CENTRAL CONTROL UNIT (“CCU”)

CENTRAL CONTROL UNIT (“CCU”) |  UL listed controller

Drives any remote display indicator (RDI’s, Voice, Lanterns) on the C.E. MICRO COMM 3-wire display network. The “MCCA” accepts the floor select signals in a choice of formats and voltages, does a redundancy check to verify correct inputs, then sends out all necessary signals for digital floor position, car direction, and passing chime to all RDI’s via 3-wires.

Features:

• UL listed
• Arrival arrows
• Strobe
• Fast, 3-wire hookup
• Latched inputs
• Cross Wire Protected
• Self-testing
• With an alternate message module capable of 8 prioritized messages
• Drives multiple RDI’s directly
• Passing chime output
• Error detection and correction feature

Dimension:

• 11″W x 11″H x 3.375″D

Notes:

1. If a special voltage is required, please consult the factory.
2. * Requires external decoder board.
