ETKYPD4-XXXX | KEYPAD FOR ELITE TOUCH
VIEW: CATALOG PAGE | PANEL PREP: ETKYPD4-PP

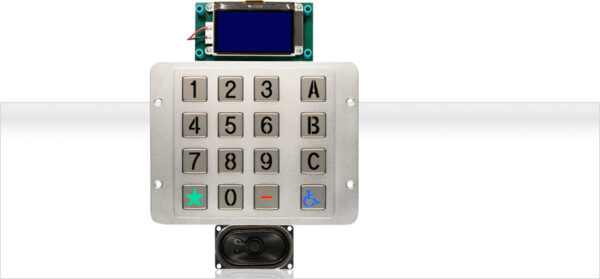

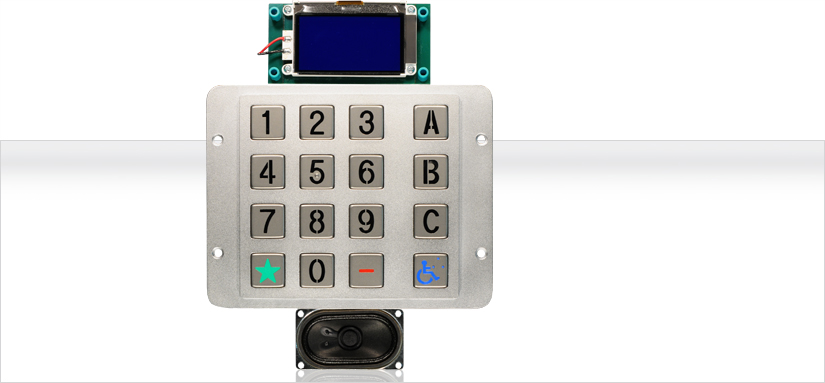

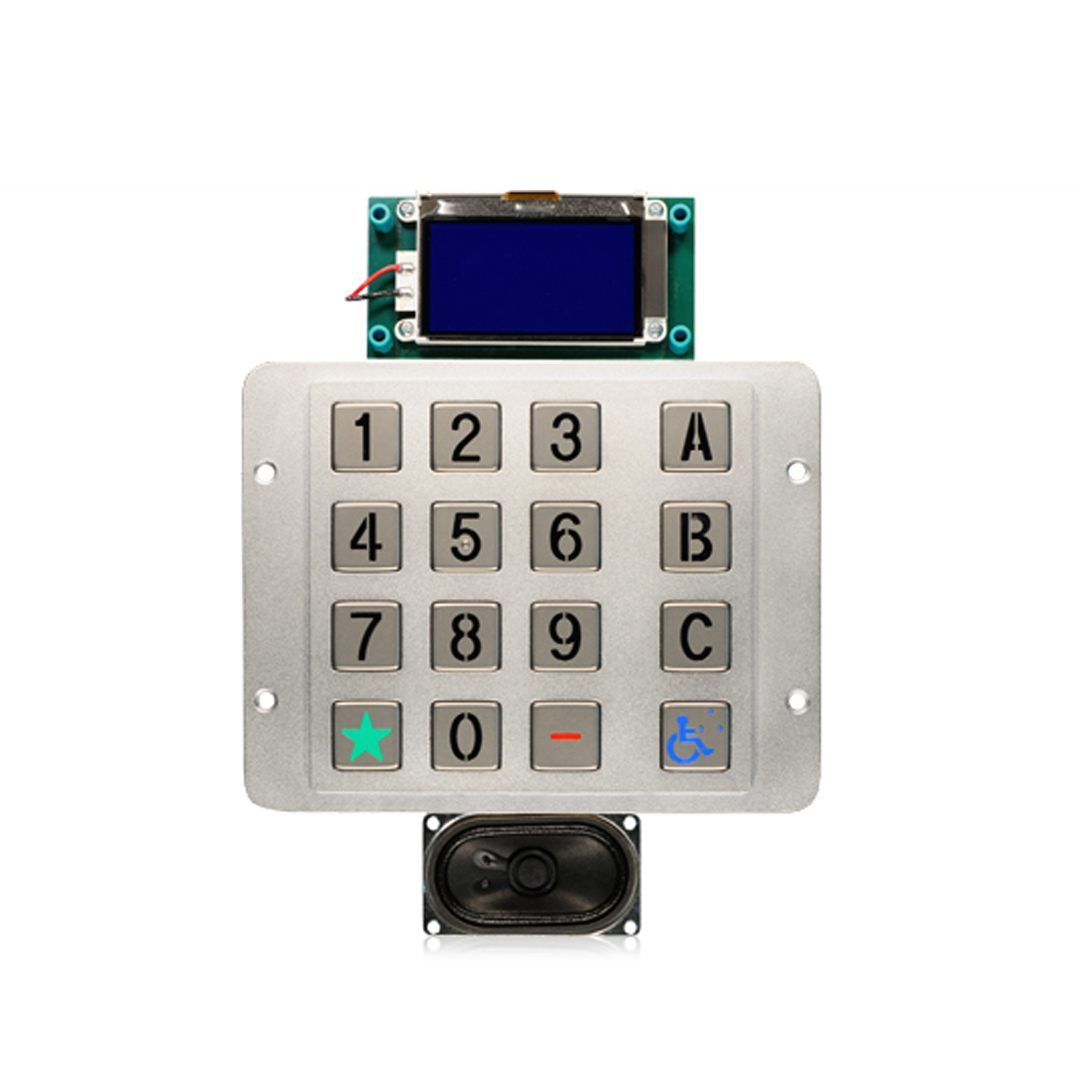

KEYPAD FOR ELITE TOUCH ®
The keypad is part of our Elite Touch® product line to maintain code compliance where pushbuttons are still necessary, as well as provide a back up in the event the touchscreens are out of service.
Typical Applications:
- Car Operating Panel
Features:
- Stainless Steel keys
- 16mm high characters
- 8 ohm Speaker
Dimensions:
- Overall: 7.5625″W x 9.75″H x 1.50″D
- Display: 4.3125″W x 2.25″H x 1.50″D
- Keypad: 7.5625″W x 5.875″H x 1.50″D
- Speaker: 2.875″W x 1.625″H x 1.50″D
Note:
Maximum distance from the keypad for display and speaker is 10 inches
For use with Elite Touch units
Power Supply #40102412 with Bracket #70000280 is recommended
Templates available for specific mounting dimensions
* If using CIB-O no Power Supply is required or if 24VDC is available in the COP no Power Supply is required.
