DM210-XX | 25mm [1″] CHARACTERS

SKU: DM210-XX Category:

VIEW: CATALOG PAGE     |     WIRING DIAGRAM

DOT MATRIX

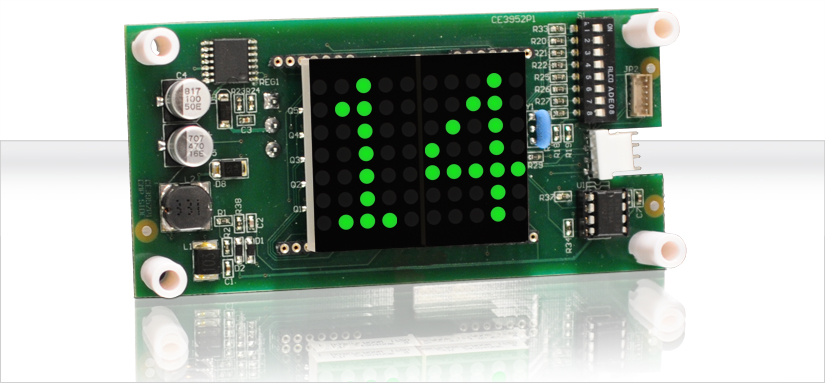

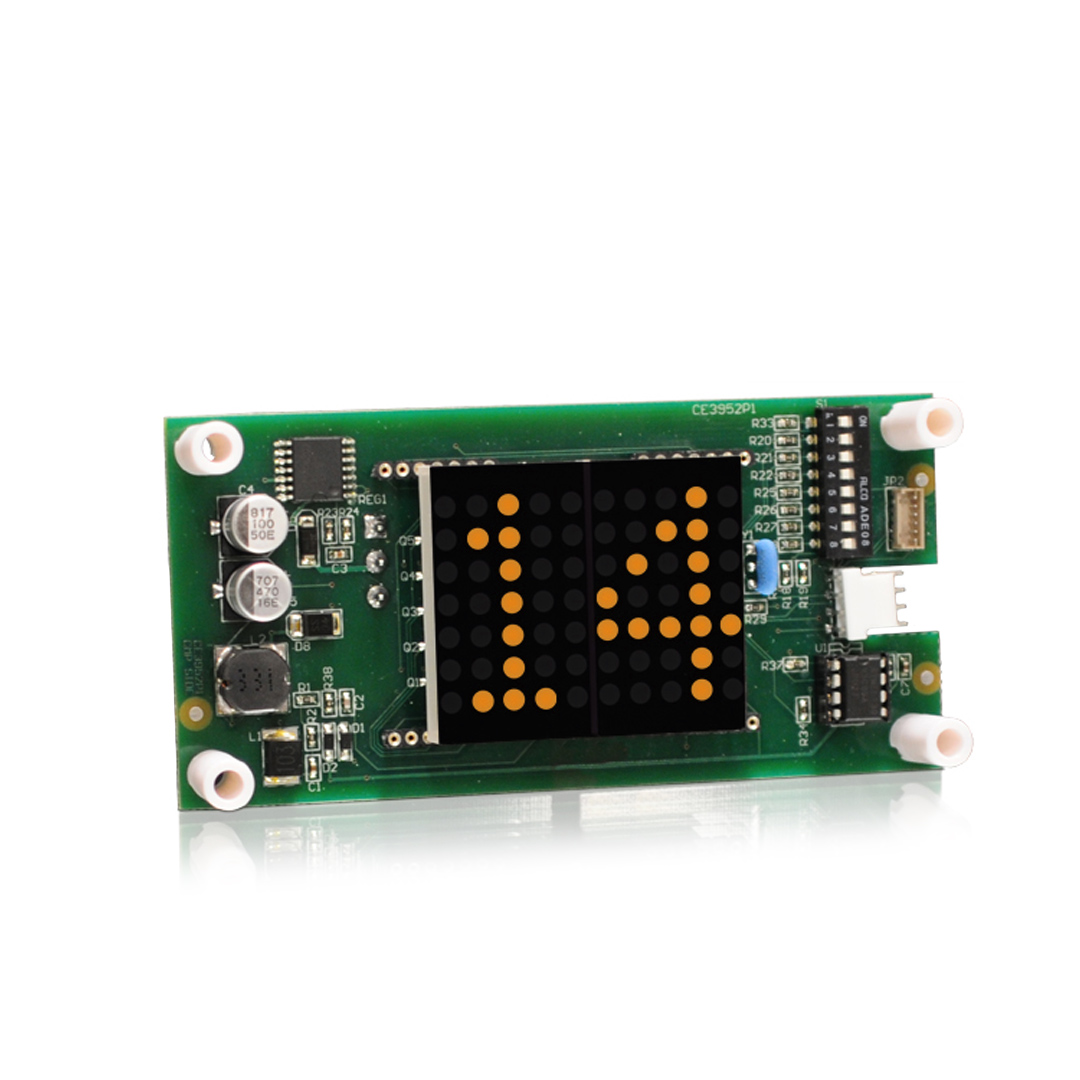

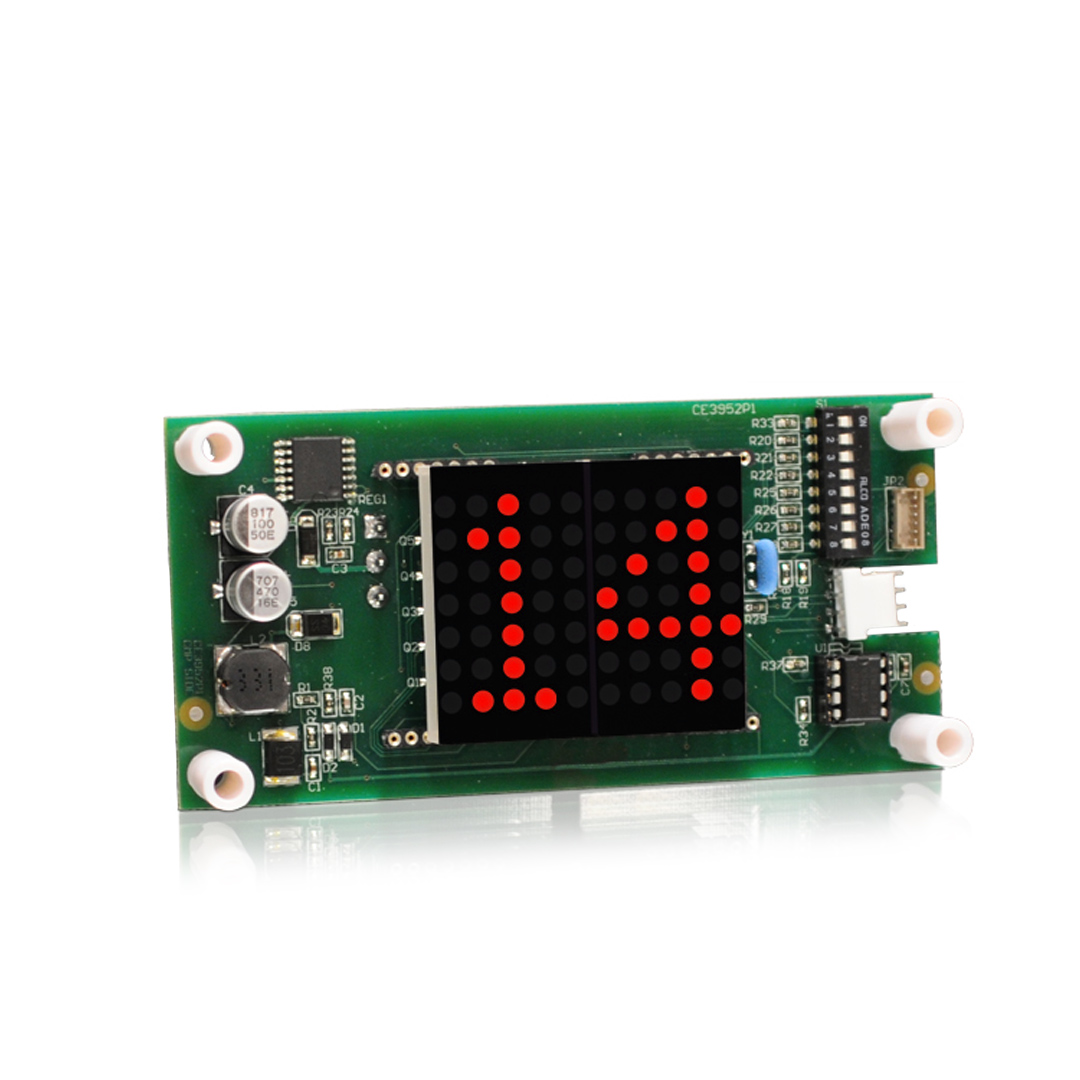

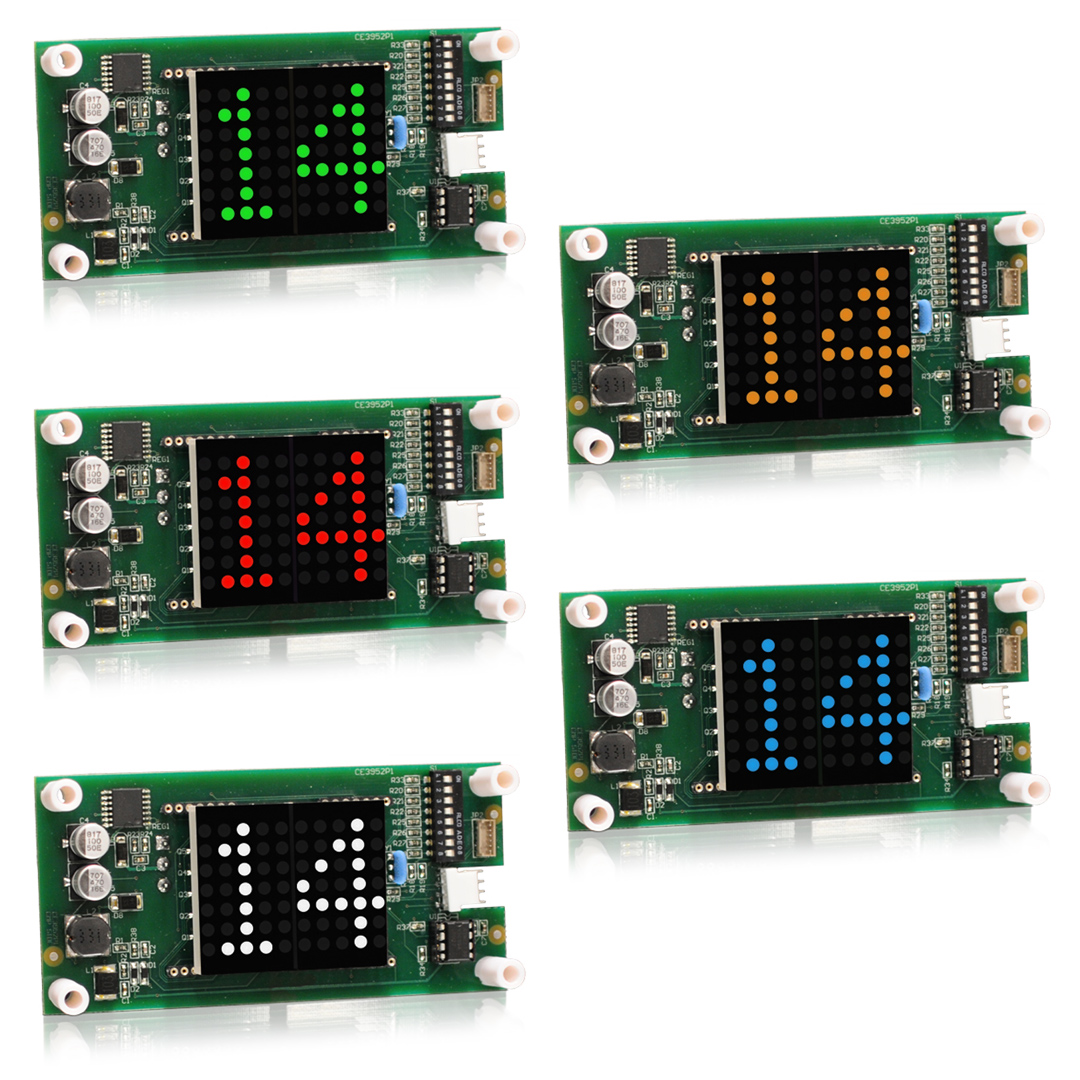

Dot matrix LED digital indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with arrow or double digit floor designations.



Typical Applications:

  •  Car-OP Panel
  •  Transom-car or Hall

Features:

  •  Low cost design
  •  Self contained unit
  •  Latched input
  •  Scrolling & Roll over
  •  Hall Lantern option
  •  Passing chime output
  •  Self Testing
  •  Message inputs
  •  Error detection and correction feature



Dimension:

  •  115mm W x 56mm H x 17.5mm  |  4.528″W x 2.205″H x .689″D



Notes:

1. This is not a stand alone unit; Must be used in conjunction with a MICRO COMM interface.
