DB310-XM | DOT MATRIX 30mm [1] CHARACTERS

SKU: DB310-XM Category:

VIEW: CATALOG PAGE | WIRING DIAGRAM

DOT MATRIX  |  Dover Lampstyle Incline PI Replacement

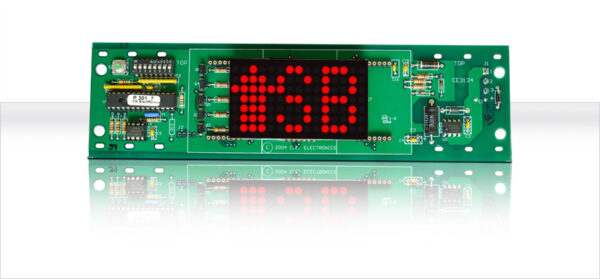

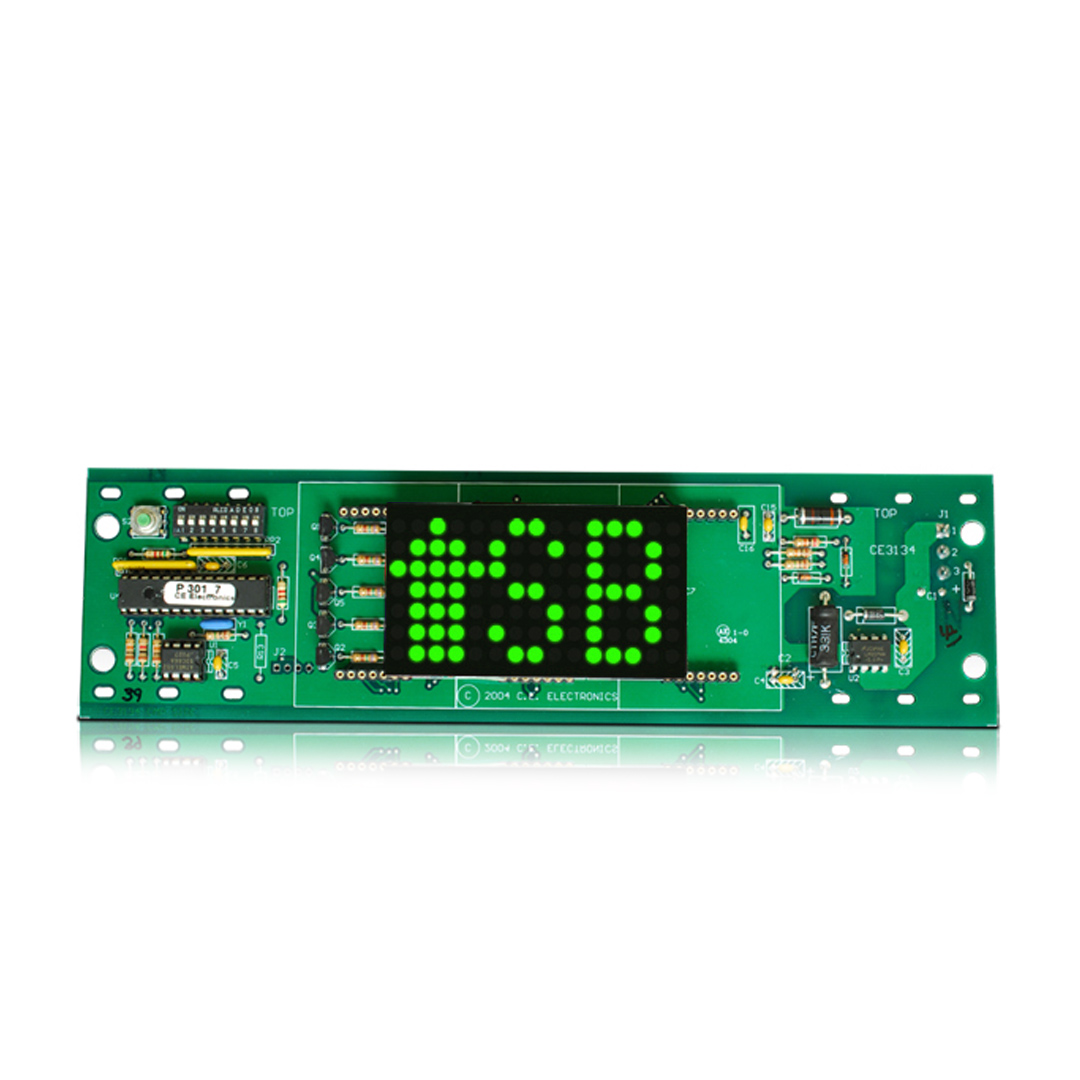

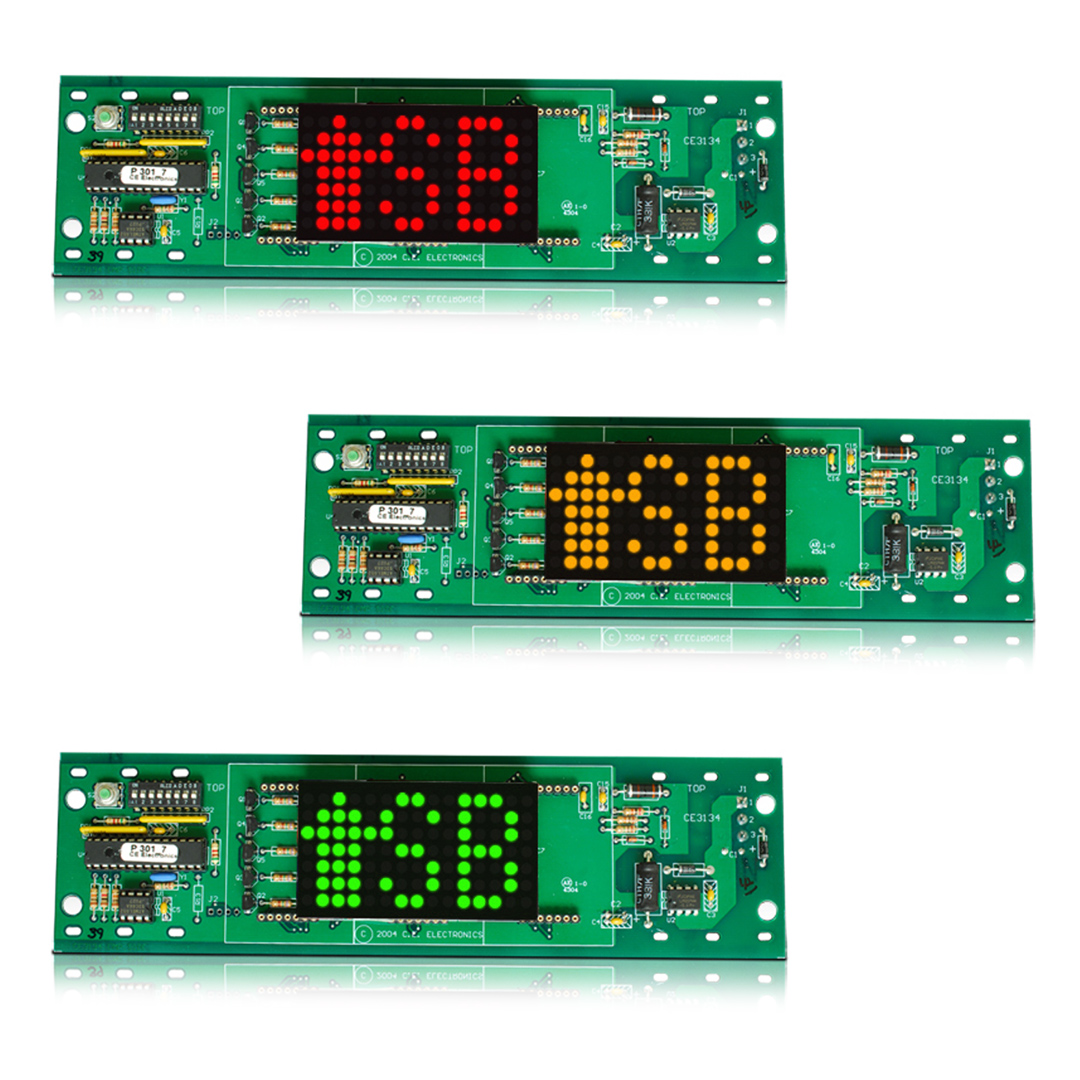

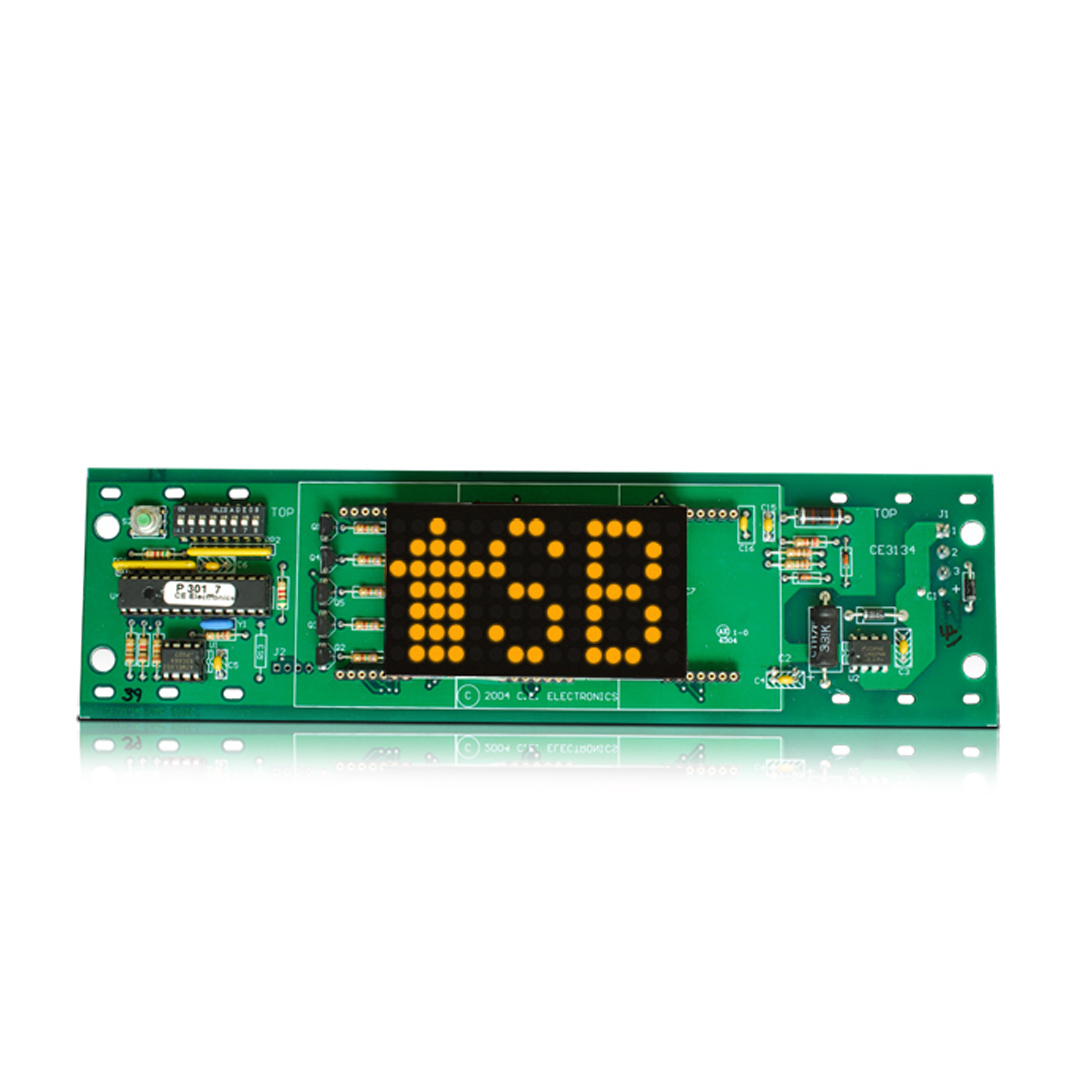

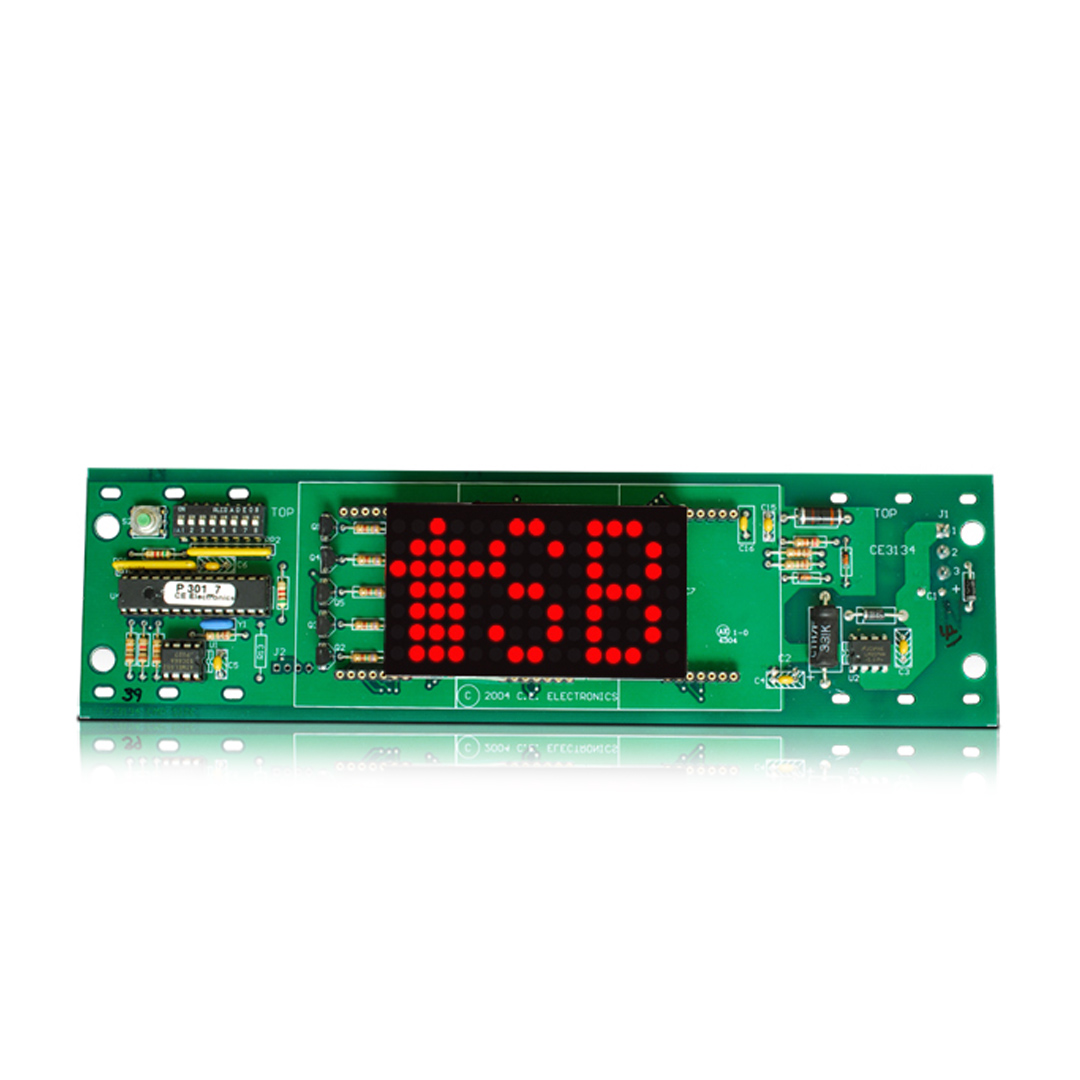

Dot Matrix LED Digital Indicator for floor position display and car direction, if desired. Any alphanumeric or custom character can be displayed in single digits with arrows or double-digit floor designations.



Typical Applications:

  • Car-OP Panel
  • Transom-car or Hall

Features:

  • Latched inputs
  • Scrolling & rollover
  • Self-testing
  • Message inputs
  • Passing chime output
  • Error detection and correction feature

Dimensions:

  • 8.543″W x 2.362″H x 1.50″D  |  217mm x 60mm





Note:

1. This is not a stand-alone unit. It must be used in conjunction with a MICRO COMM interface.
