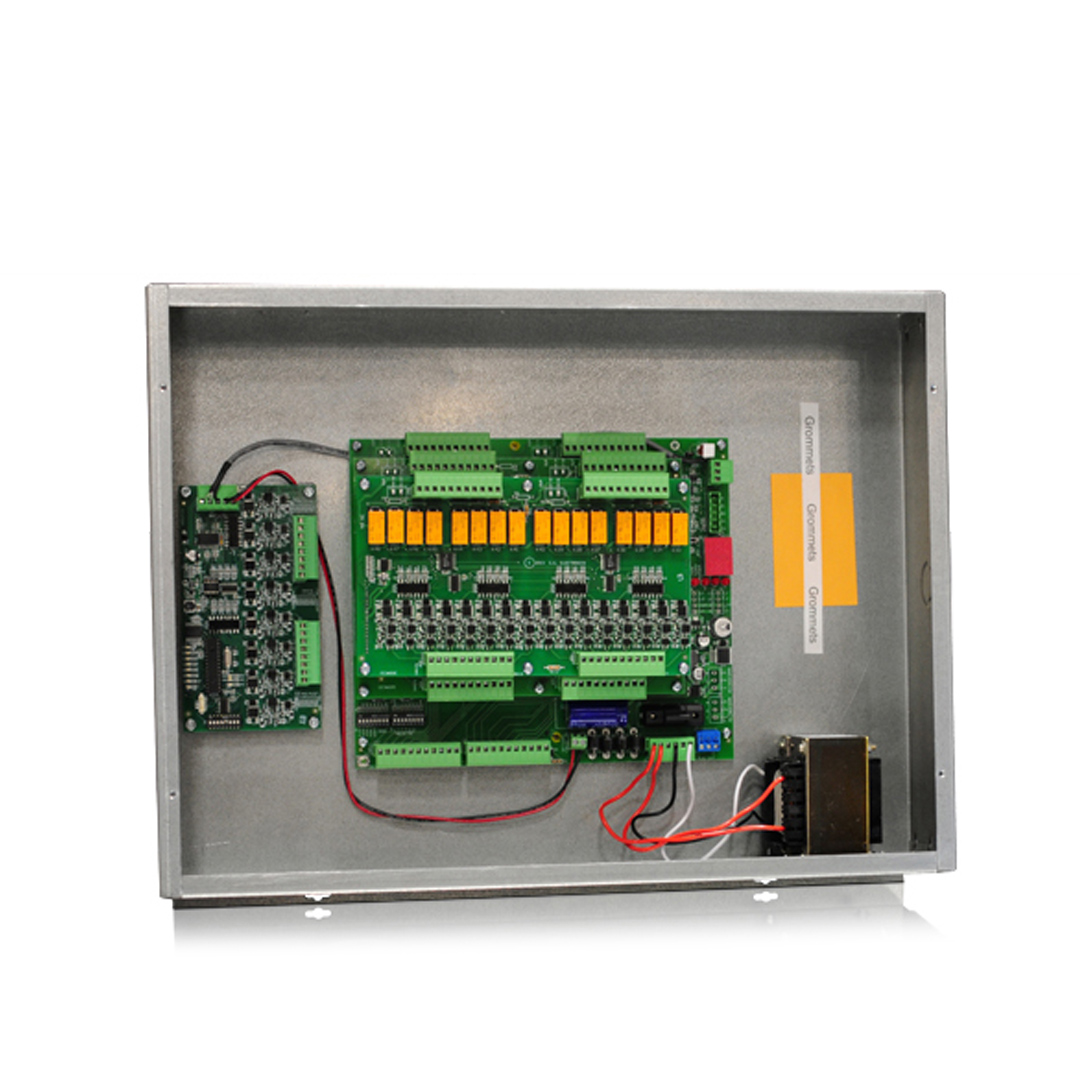

CIB-DXXRX | CONTROLLER INTERFACE BOARD
VIEW: CATALOG PAGE | CIB-DXXXX-DETAIL1

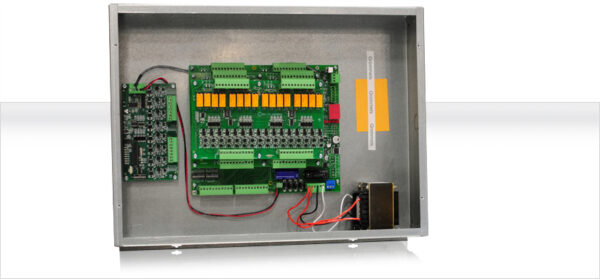

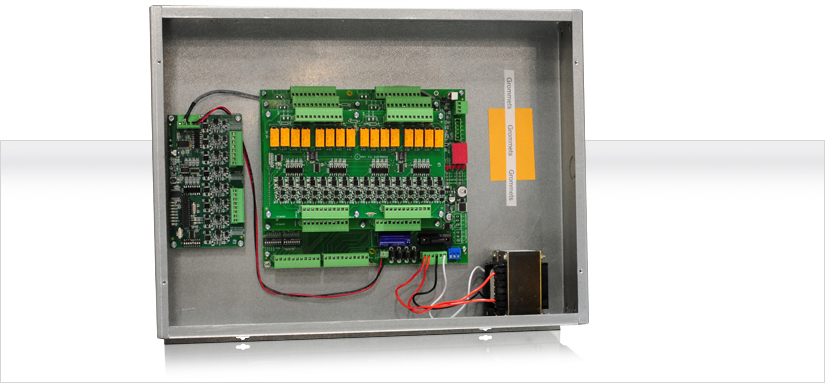

CONTROLLER INTERFACE BOARD
This unit is the interface between the touchscreen and the elevator controller. As the rider selects their car call on the screen, the CIB collects that information and alerts the controller of the request. The car call is illuminated on the screen to confirm the selection and then the controller sends the car to the floor.
Typical Applications:
- Discrete input/output controller
Features:
- Designed to function with any discrete controller
- Easily expandable from 16 – 48 inputs/outputs
Dimensions:
- 10.000″W x 8.500″H [BOX: 20.000″W x 16.000″H x 4.5000″D]
